Brakes u Inspecting the Rear Brake Pedal Freeplay
63
Maintenance
After adjustment, confirm the freeplay of the
brake lever.
Make sure the brake arm, spring and fastener
are in good condition.

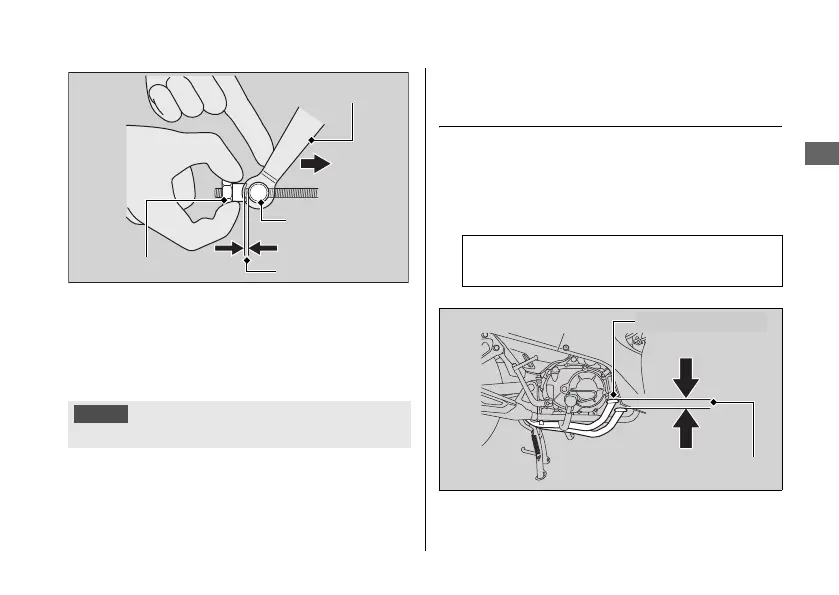

Inspecting the Rear Brake Pedal
Freeplay
1. Place your vehicle on its centre stand on a
firm, level surface.
2. Measure the distance of the rear brake
pedal before the starts to take hold.
Make sure the brake rod, brake arm, spring
and fastener are in good condition.
NOTICE
Do not turn the adjuster beyond its natural limits.
Adjusting nut
Brake arm pin
Brake arm
Push
Gap
Freeplay at the tip of the rear brake
pedal: 20 to 30 mm (0.8 to 1.2 in)
Freeplay
Rear brake pedal
