Brakes u Adjusting the Brakelight Switch
66
When the brake is applied, an arrow attached
to the brake arm moves toward a reference
mark on the brake panel. If the arrow aligns
with the reference mark on full application of
the brake, the brake shoes must be replaced.
See your dealer for this service.
When the brake service is necessary, see your
dealer. Use only Honda Genuine Parts or its
equivalent.
Adjusting the Brakelight Switch
Check the operation of the brakelight switch.
Hold the brakelight switch and turn the
adjusting nut in the direction A if the switch
operates too late, or turn the nut in the
direction B if the switch operates too soon.

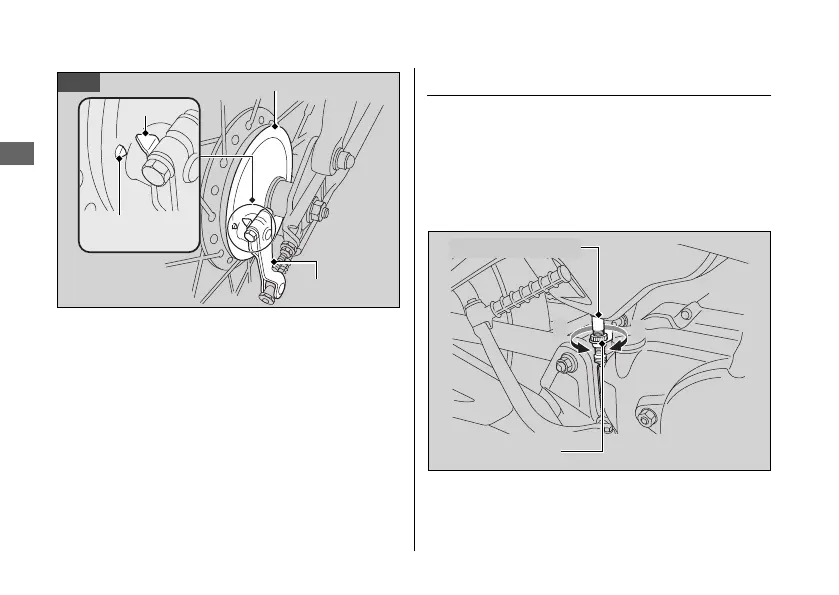

Brake arm
Reference
mark
Arrow
Adjusting nut
A
B
Brakelight switch
