Honda WT40X - Pump Casing Cleaning

39
SERVICING YOUR PUMP
PUMP CASING CLEANING
Removal:
WRENCH
WRENCH
DRAIN PLUG
WRENCH
KNOBS (4)
KNOBS (4)
PUMP CASING
PUMP COVER
VOLUTE
CASE
O-RING

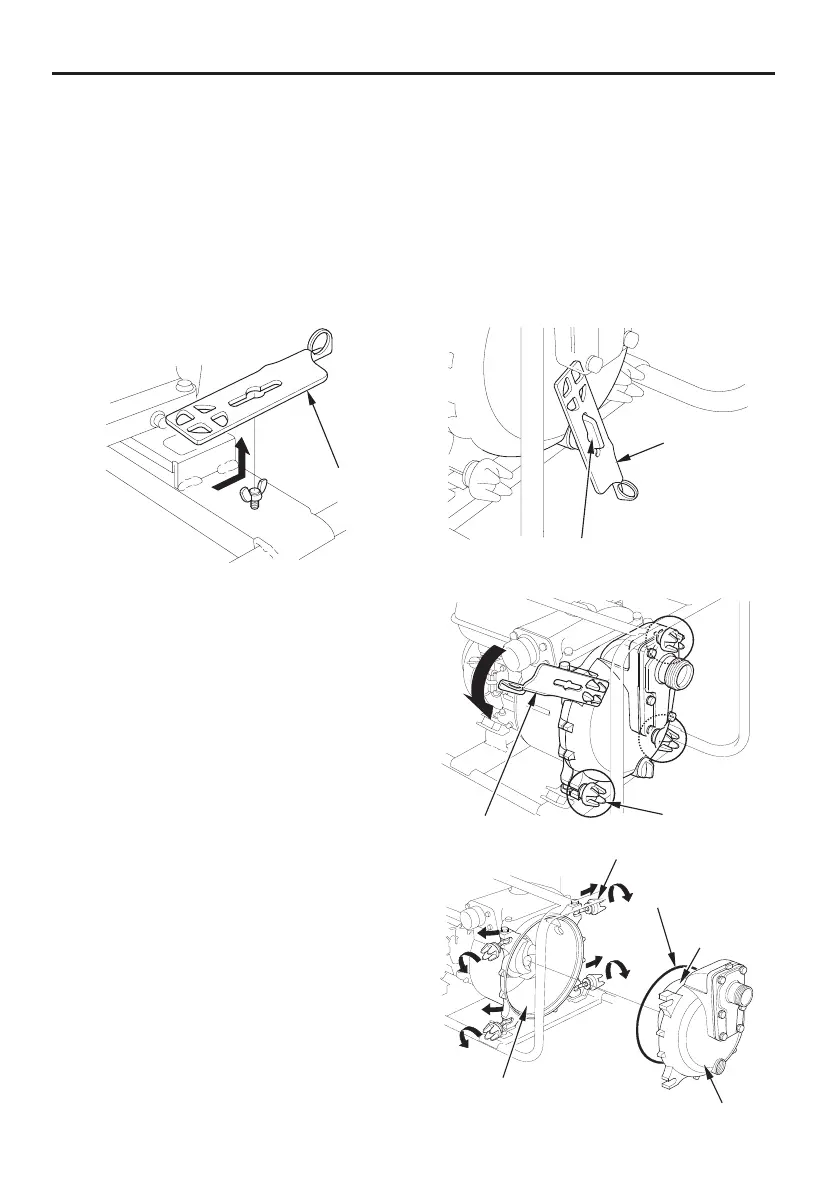

After each use, clean the inside of the pump casing using the following
procedure:
Remove the drain plug from the pump cover using the wrench to
drain the water inside.
Loosen the pump cover knobs
using the wrench.
Remove the pump cover and
the volute case from the pump
casing, and remove any debris
from pump casing and volute
case.
1.
2.
3.
