Honda WW125 Owner's Manual

~--
II
li/l0/13 10,20,23
+

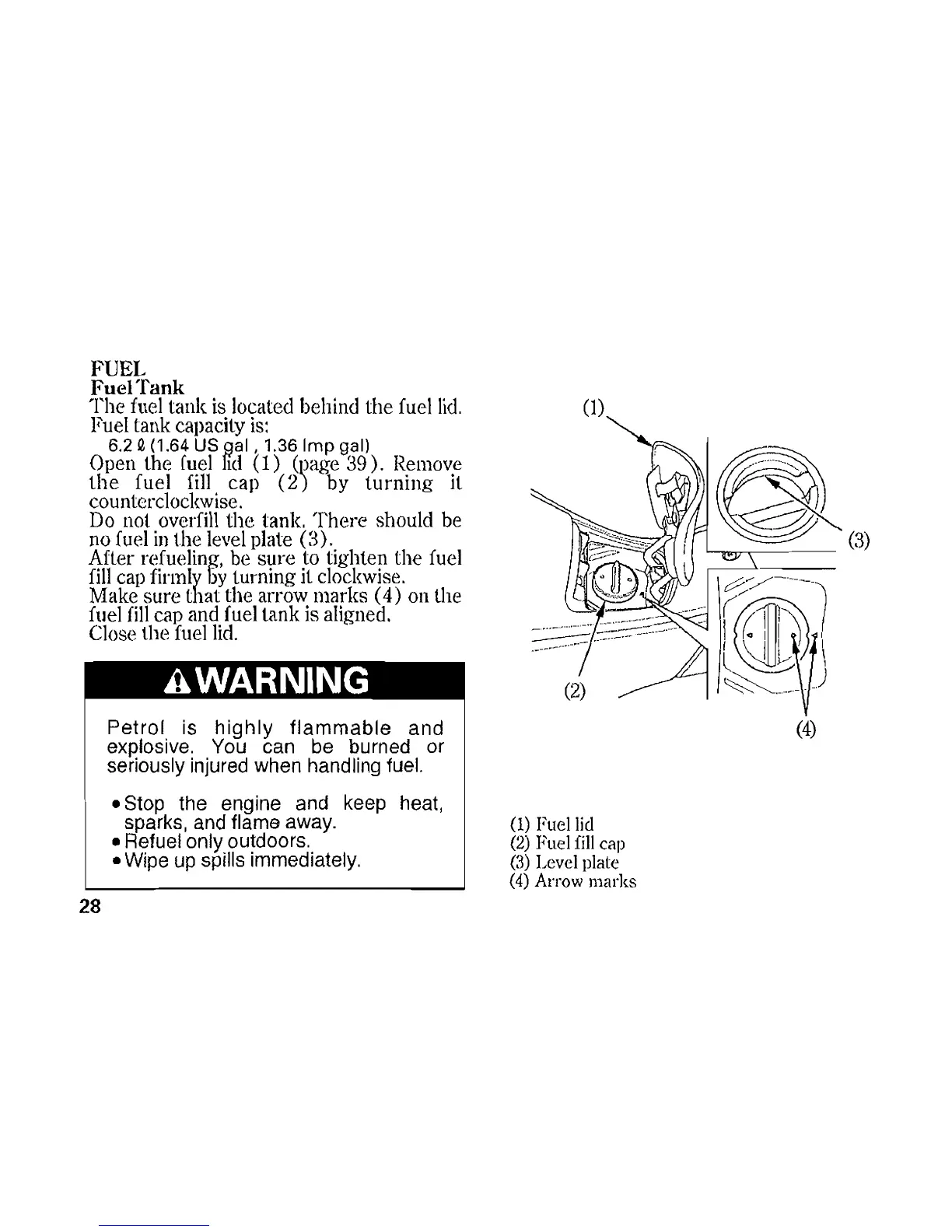

FUEL
Fuel Tank
The fuel tank is located behind the fuel lid.
Fuel tank capacity is:
6.2 ~ (1.64 US gal, 1.361mp gal)
Open the fuel lid (1) (page 39). Remove
the fuel fill cap (2) by turning it
counterclockwise.
Do not overfill the tank There should be
no fuel in the level plate (:l).
After refueling, be sure to tighten the fuel
fill cap firmly llY turning it clockwise.
Make sure that the arrow marks (4) on the
fuel
fill cap and fuel tank is aligned.
Close the fuel
lid.
28
AWARNING
Petrol is highly flammable and
explosive.
You can be burned or
seriously injured when handling fuel.
• Stop the engine and keep heat,
sparks, and flarne away.
• Refuel only outdoors.
•
Wipe up spills immediately.
(1)
(2)
(1) Fuel1id
(2) Fuel fill cap
G~) Level plate
(4) Arrow marks
~
~
(3)
+
Iii
