Honda XR125LEK User Manual

10-10
dummyheaddummyhead

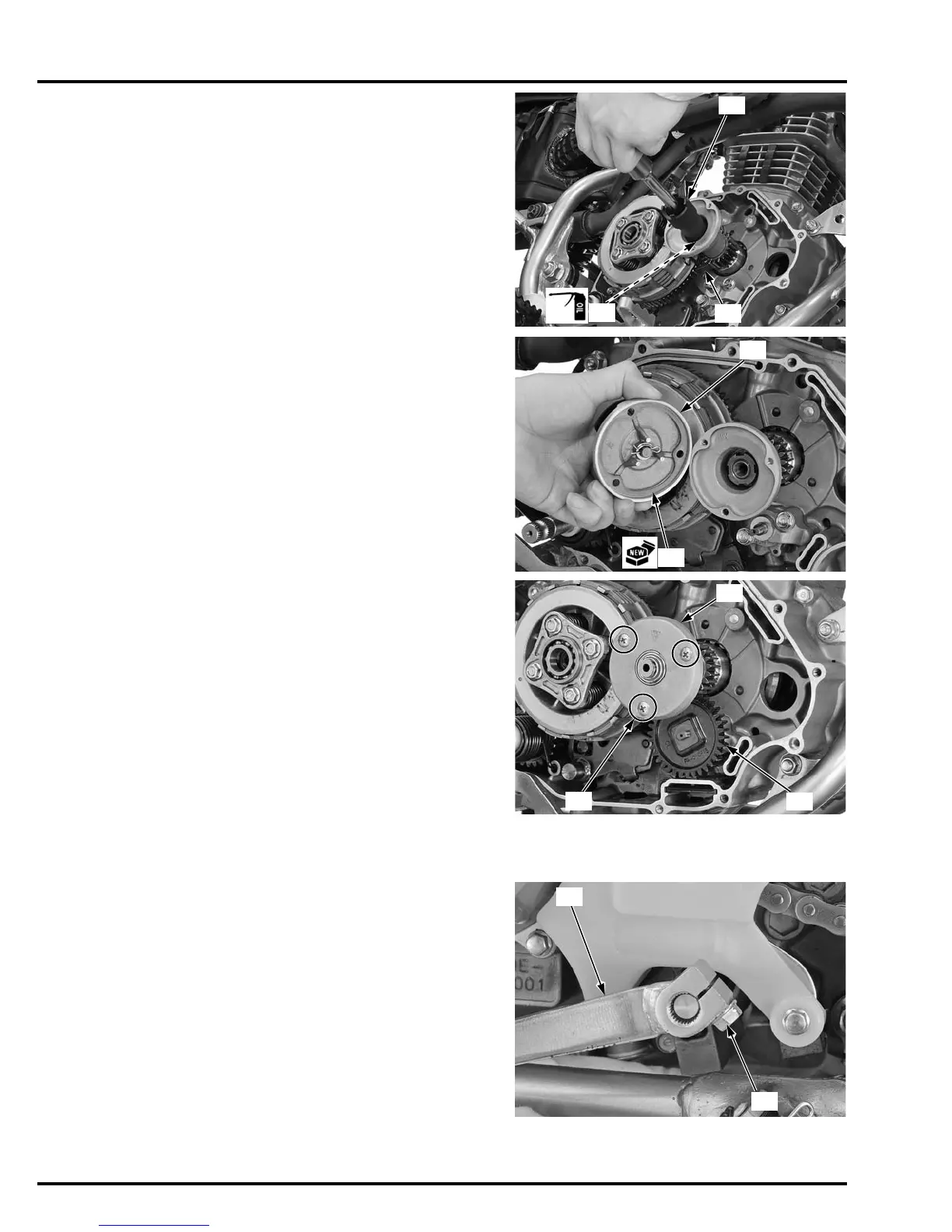

CLUTCH/GEARSHIFT LINKAGE
Apply engine oil to the threads and seating surface of
the oil filter rotor lock nut [1], and then install it.
Install the gear holder between the primary drive and
driven gears, and tighten the oil filter rotor lock nut.
Install a new gasket [1] onto the oil filter rotor cover [2].
Install the oil filter rotor cover [1] and screws [2].
Tighten screws to the specified torque.
Install the oil pump driven gear [3].
Install the right crankcase cover (page 10-4).
GEARSHIFT LINKAGE
REMOVAL/INSPECTION
Remove the clutch (page 10-7).
Remove the bolt [1] and gearshift pedal [2].
Clean the left end of the gearshift spindle.
TOOLS:
[2] Gear holder 07724-0010200
[3] Lock nut wrench 07716-0020100
TORQUE: 64 N·m (6.5 kgf·m, 47 lbf·ft)
[1]
[2]
[3]
[1]
[2]
TORQUE: 4.0 N·m (0.4 kgf·m, 3.0 lbf·ft)
[2]
[1]
[3]
When removing the
gearshift pedal,
mark the pedal
position to ensure
the original position.
[1]
[2]

Honda XR125LEK Specifications

General

Compression Ratio	9.2:1
Fuel System	Carburetor
Ignition System	CDI
Starter	Electric and kick
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Length	2, 100 mm
Width	820 mm
Height	1, 126 mm
Seat Height	825 mm
Fuel Capacity	12 liters
Engine Type	Air-cooled, 4-stroke, single-cylinder
Displacement	124 cc
Front Tire	90/90-19
Rear Tire	110/90-17
Bore x Stroke	56.5 mm x 49.5 mm
