Mounting and Connection Instructions - Door module RS485 15
5. Now the peripheral devices can be connected. Observe the connection diagrams and the terminal
assignments!
Then mount the housing cover, close it with the housing screws and seal it.

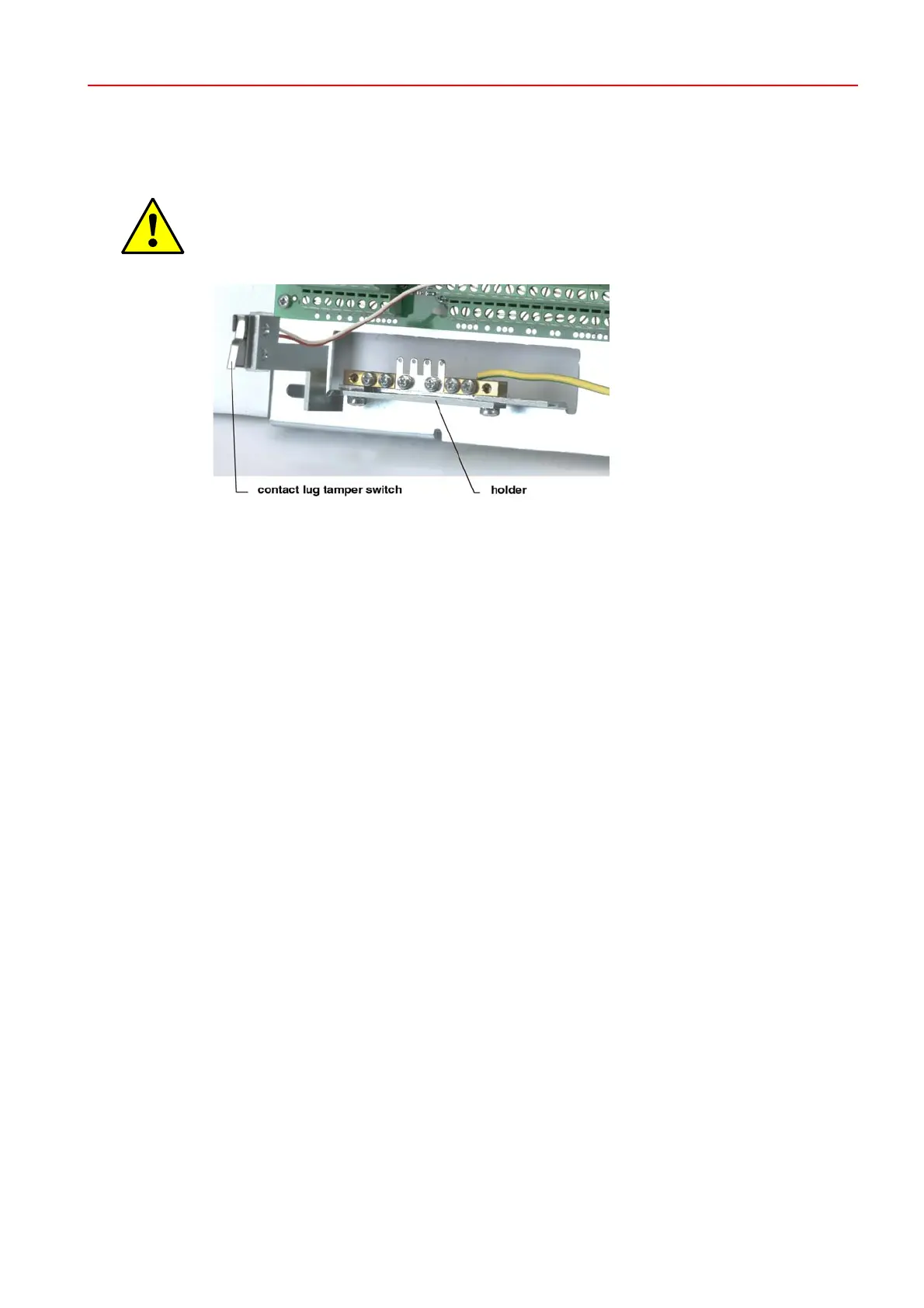

To assure safe and easy working, we recommend removing the holder with integrated tamper
switch during the installation of the peripheral devices.
5. Technical data
5.1 Technical data 026593.10, Door module 12V DC, RS485
Rated operating voltage 12V DC
Operating voltage range 9V DC to 15V DC
Current consumption in no-load operation
without ext. consumers 15 mA
Operating temperature range -5 °C to +55 °C
Storage temperature range -25 °C to +70 °C
Environmental class according to VdS II
Color of the plastic housing grey-white (similar to RAL 9002)
Dimensions (W x H x D) 163 x 152 x 40 mm
5.2 Technical data 026594.10, Door module 230V AC, RS485
The performance features are the same
as for Item no. 026593.10
Battery support: 1 x 018002 (2,0 Ah)
In addition: Power supply unit with
battery charging connection
Rated operating voltage 230 V AC
Operating voltage range 230 V AC - 15% to + 10%
Current consumption in no-load operation
without ext. consumers 65 mA
Operating temperature range -5 °C to +55 °C
Storage temperature range -25 °C to +70 °C
Environmental class according to VdS II
Color of the plastic housing grey-white (similar to RAL 9002)
Bottom of the housing 2 mm steel sheet
Dimensions (W x H x D) 250 x 210 x 100 mm
