Honeywell 968XTP User Manual

For the latest U.S. warranty information, please go to: www.honeywell.com/security/hsc/resources/wa or
Please contact your local authorized Honeywell representative for product warranty information.
 2006 Honeywell International Inc. Honeywell is a registered trademark of Honeywell International Inc.
All other trademarks are the properties of their respective owners. All rights reserved.
Ê5-051-649-00HNŠ
P/N 5-051-649-00J 10/13 Rev A
Door
Frame
2” (51 mm)
Minimum
3/16”
(4.8 mm)
OPEN
Door
Frame
7/16”
11.1 mm
Align
Edges
Area to be
protected
3/16”
4.8 mm

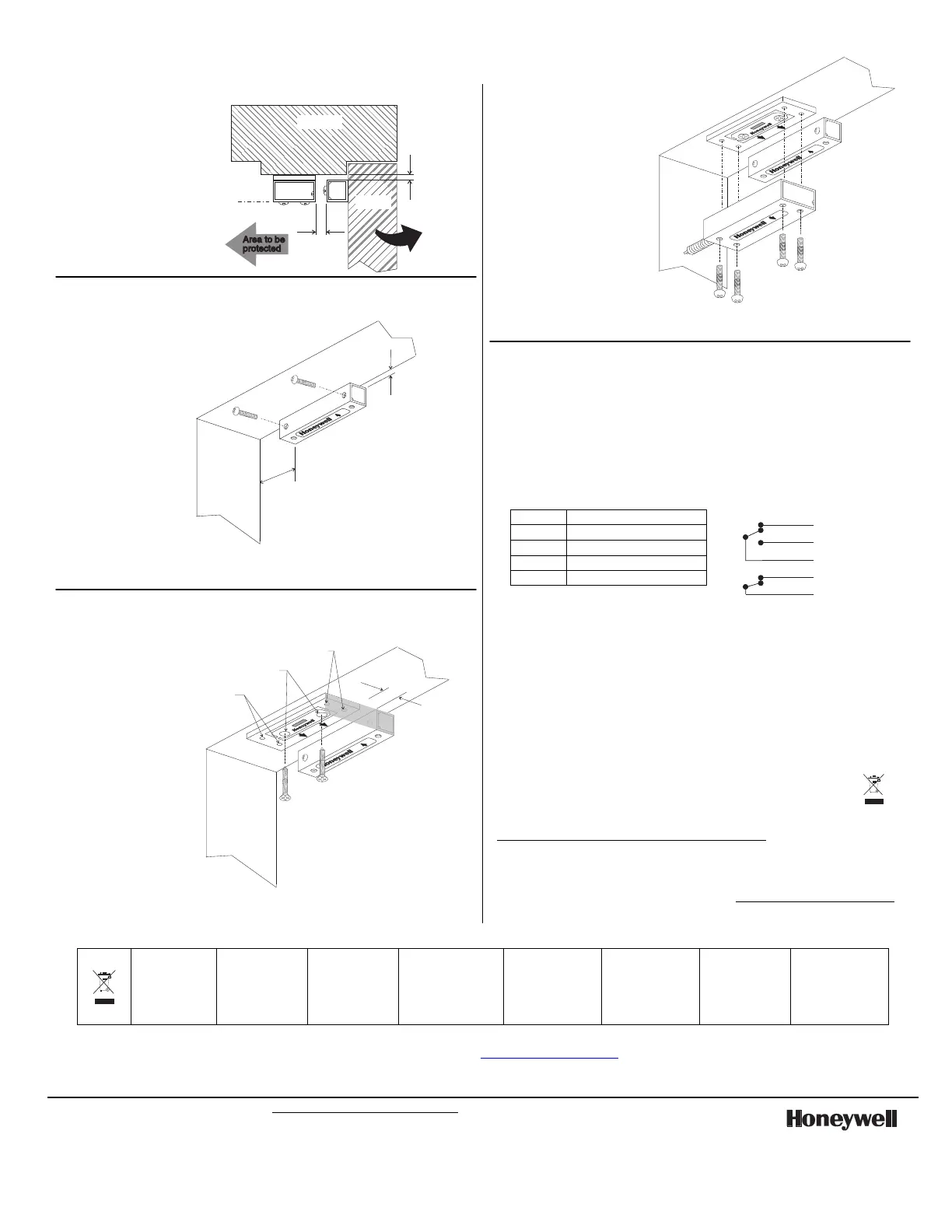

Outswinging Door Instructions
General Guidelines
• Mount the magnet
assembly to the
door, mount the
switch assembly to
the frame.
Step 1 - Install the Magnet
• Place the magnet
2” (51 mm)
[minimum] from
the side of the
door frame and
3/16” (4.8 mm)
from the top.
• Mark the two
mounting holes
and drill pilot holes
for #8
(4.1 mm) screws
[provided].
• Mount the magnet
on the door using
two #8 (4.1 mm)
screws with the Honeywell label surface facing down and the arrow
pointing away from the door.
Step 2 - Install the Tamper Plate
• Line up the edge
of the tamper
plate to the edge
of the magnet.
Make sure the
arrows on the
tamper plate are
pointing toward
the door.
• Measure the gap
distance 7/16”
±1/16” (11.1 mm
±1.6 mm).
• Mark the
mounting holes
and drill pilot
holes for two #6
(3.5mm) and four
#8 (4.1 mm) screws [provided].
• Mount the tamper plate in place using two #6 (3.5 mm) screws.
Step 3 - Install the
Switch
• Verify that the arrow
on the switch
assembly is facing
the arrow on the
magnet assembly.
• Mount the switch
assembly to the
tamper plate using
four #8
(4.1 mm) screws
[provided].
• See Supplemental
Information for wiring instructions.
Supplemental Information Wiring
• The normal condition of the 968XTP is when it is reporting secure,
energized by the magnet.
• The two white tamper wires will be closed when the tamper switch
is in secure condition.
• The tamper contacts should be connected to a 24 hour circuit to
trigger an alarm any time the switch module is tampered with.
• Maximum contact ratings depend on the voltage put through the
switch. They are 250 mA at 12 V or less and 125 mA at 24 V. The
tamper circuit can handle a maximum of 1 Amp.
Black Common
Green Normally Closed (NC)
Red Normally Open (NO)
White Tamper NC
White Tamper NC
Notes
• To minimize tamper potential, the 968XTP should be installed inside the
perimeter being protected.
• The switch assembly / magnet combination is designed to have a
nominal gap of 0.45” (11.4 mm). The system will go into alarm
condition if the gap is approximately 0.63” (16.0 mm) and greater,
or approximately 0.27” (6.9 mm) or less. To account for system
tolerances, a 7/16” ±1/16” (11.1 mm ±1.6 mm) gap has been specified
in these instructions. The minimum make gap is 0.53” (13.5 mm).
Approvals/listings:
cULus listed
EN 50131-2-6:2008 Security Grade 3 Environmental Class II;
Certified by VdS.
Suitable for connection to an EN 60950 Class II
Limited Power Source in European Installations.
For any additional information, please refer to our Website,
www.honeywell.com/security/emea/hscdownload or contact:
Honeywell Security Group
Newhouse Industrial Estate
Motherwell
Lanarkshire ML1 5SB
United Kingdom
Green
Red
Black
White
White
NC
NO
COM
Tamper NC
Tamper NC
Tel: +44(0)1698 738200
Email: UK64Sales@Honeywell.com
Door
Frame
DOOR
7/16”
(11.1 mm)
Align edges
#8
(4.1 mm)
Screw
#6
(3.5 mm)
Screw
#8
(4.1 mm)
Screw
Door
Frame
DOOR
www.honeywell.com/security
The WEEE symbol.
It indicates this
product is to be
recycling and not
been thrown away
in a dustbin.
Le symbole DEEE. Il
indique que ce
produit doit être
recyclé et qu’il ne
doit pas être jeté à la
poubelle.
Das
WEEE  Symbol. Es
bedeutet, dass
dieses Produkt
recyclebar ist und
nicht in den
Hausmüll gehört
Símbolo WEEE Indica
que este producto es
para reciclar y que no
se debe arrojar al cubo
de basura
Simbolo RAEE. Indica
che questo prodotto
deve essere riciclato e
non può essere gettato
nel secchio della
spazzatura
Symbol WEEE. To
označuje, že tento
výrobek má být
recyklován a ne být
vyhozen do popelnice.
WEEE sembolü. Bu
ürüne geri dönüşüm
yapılması gerektiğini
ve çöp kutusuna
atılmaması
gerektiğini belirtir.
Symbol WEEE.
Oznacza, że produkt
należy poddać
recyklingowi i nie
można wyrzucać go do
pojemników na śmieci.
For patent information, see www.honeywell.com/patents
