Honeywell Alerton ACM User Manual

Addendum: ACM Option Card Wiring Instructions
Ascent Control Module
50096253-001 Rev.B PRINTED IN USA © Honeywell International Inc. All rights reserved
50096253-001

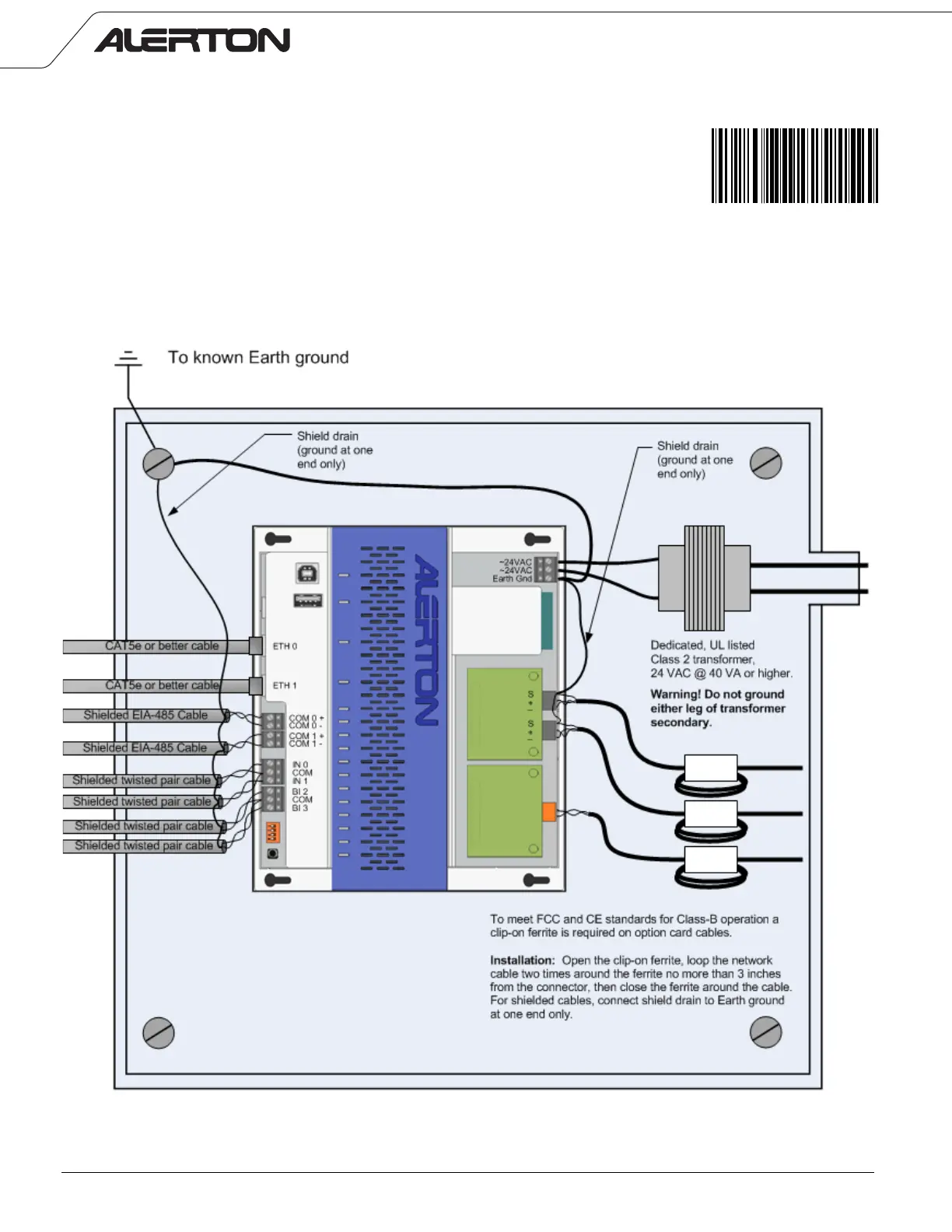

Purpose: To meet FCC and CE standards for Class-B operation a clip-on ferrite is required on option card cables.
• To install the clip-on ferrite:
1 Open the clip-on ferrite, loop the network cable through the ferrite no more than 3 inches from the connector, and then close
the ferrite around the cable.
2 For shielded cables, connect shield drain to Earth ground at one end only (not shown).
