Honeywell BENDIX/KING KCS55 - Pin Locations

BENDIX/KING KCS 55/55A
Page 2-10
©Honeywell International Inc. Do not print without express permission of Honeywell Rev 11, Apr/2007

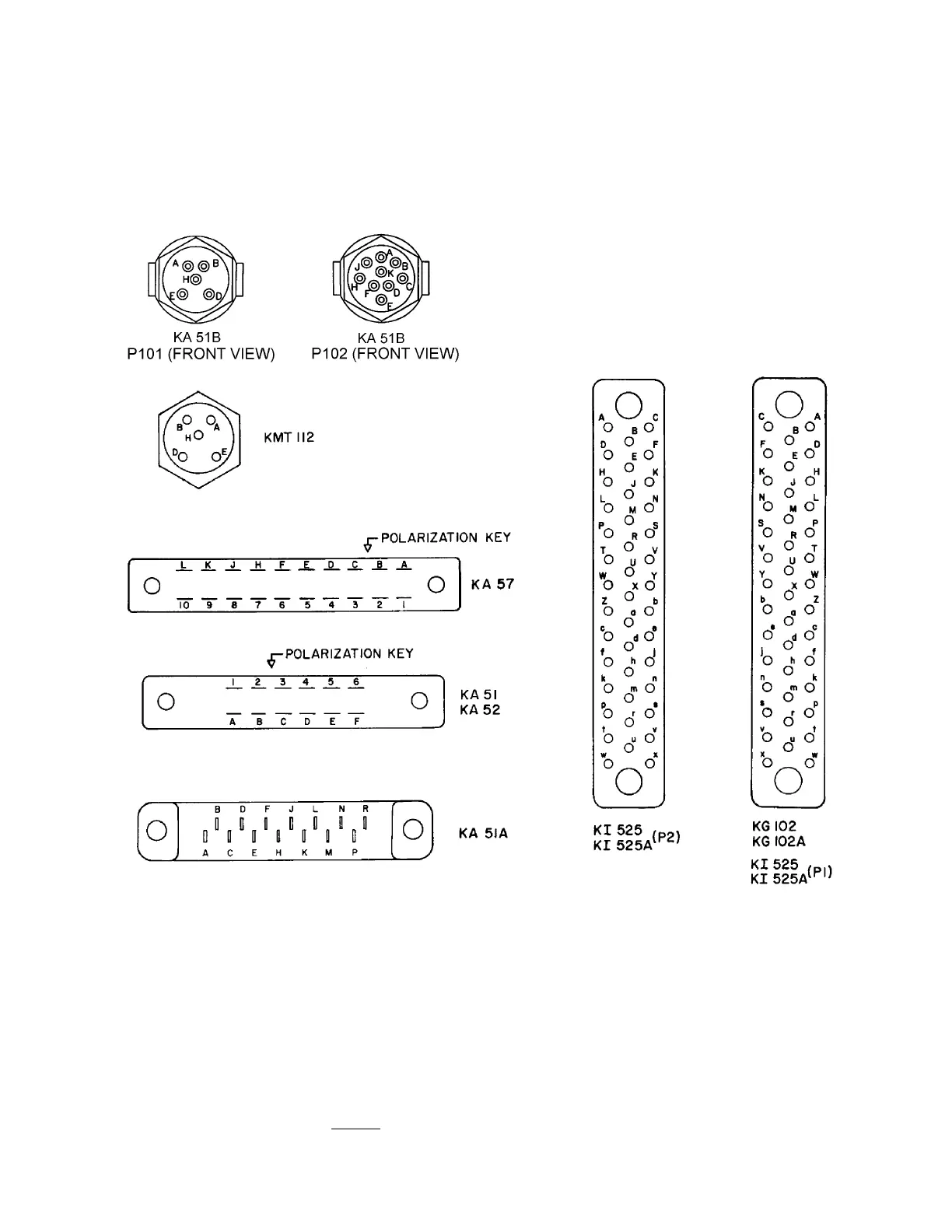

FIGURE 2-1 PIN LOCATIONS
(Viewed From REAR
of Mating Connectors Except Where Noted)
