Honeywell CX Series User Manual

CX Series
ISSUE 4 PK 88136
REPLACEMENT LEVERS
To order replacement levers, order the part
number which is metal stamped on either the lever
or the hub. Only nonsparking levers can be used
to retain the explosion-proof properties.

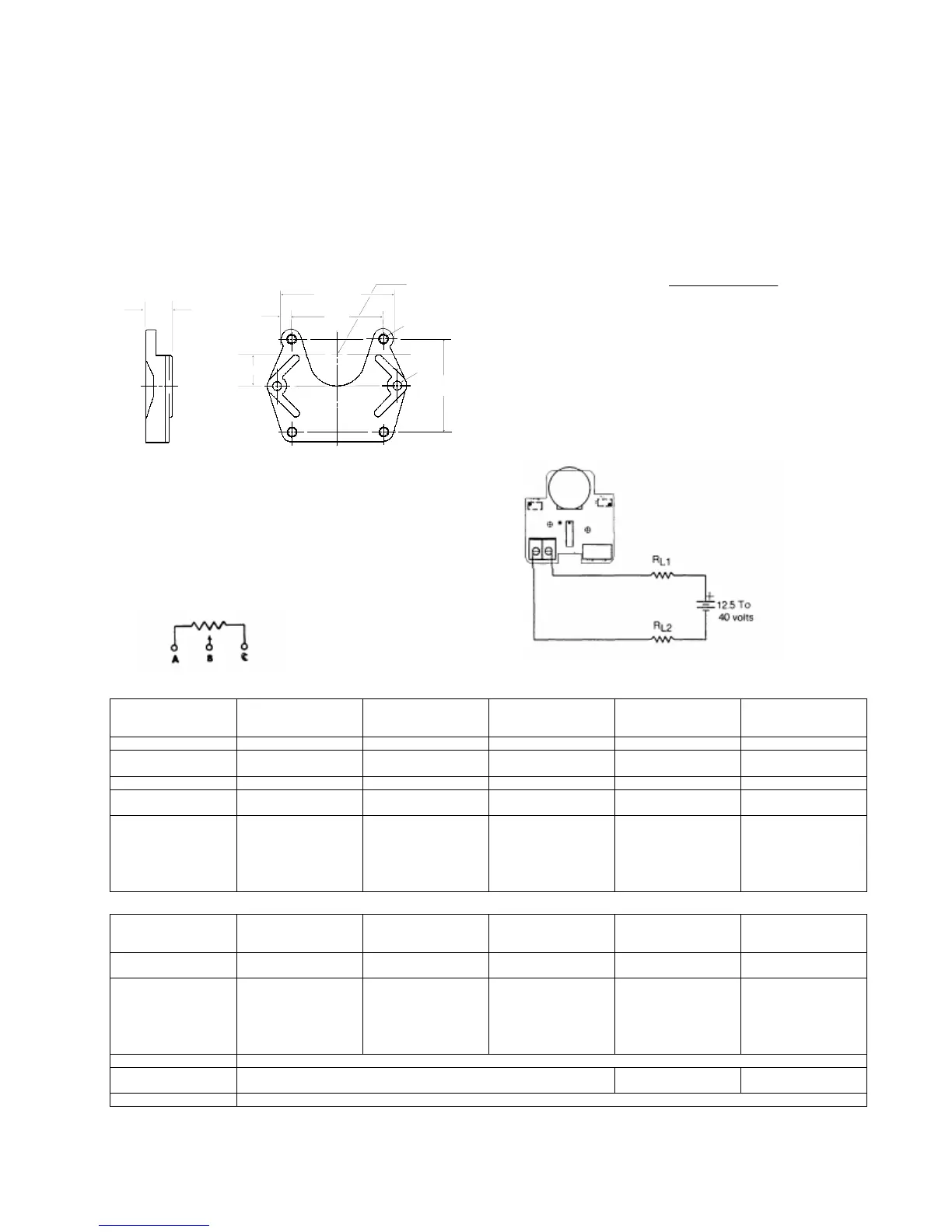

MOUNTING ADAPTER —15PA148-CX
Available for adapting CX to existing 2 hole
mount.
22,9
0.9
21,8
0.85
80
3.15
8,4
0.33
(2)
5/16 -18 UNC (4)
Centerline of CX
Shaft
80
3.15
12,2
0.48
104,4
4.11
ANALOG POSITION-SENSING UNITS
1. Resistive Output
Specifications:
500 ohms ±10% in center (free position)
975 ohms max. at 105° rotation clockwise (CW)
25 ohms min. at 105° rotation CCW
2 watts power at 70°C/150°F at full scale
Wiring Diagram
2. Current Output (4 to 20 mA)
The signal from the position-sensing unit is
converted to a two-wire 4 to 20 mA current
output.
Specifications:
Voltage compliance range: 12.5 to 40 VDC
Maximum load resistance:
mA 20
12.5SupplyV
maxR
L
−
=
Current signal output: 4-20mA
Span: Adjustable from 15° to 90° of angular
rotation
Null: 4 mA position may be set at any angular
position
Typical Wiring Connections:
ROTARY ACTUATION
Catalog Listing Prefix
(*listing indicates
replacement parts)
11CX, 21CX, 61CX,
71CX, 81CX, 281CX,
91CX*
12CX, 22CX, 62CX,
72CX, 82CX, 282CX,
92CX*
14CX, 24CX, 64CX,
74CX, 84CX, 284CX,
94CX*
16CX, 26CX, 66CX,
76CX, 86CX, 286CX,
96CX*
1172CX, 2172CX,
9172CX*
Pretravel, max. 15° 15° 30° 30° 15°
Differential Travel,
max.
5° 10° 25° 20° 5°
Overtravel, min. 90° 90° 75° 75° 90°
Circuitry Single-Pole Double-
Throw
Single-Pole Double-
Throw
Double-Pole Double-
Throw
Single-Pole Double-
Throw
(Gold Contact) Single-
Pole Double-Throw
Electrical Ratings
UL/CSA Rating: L96
15 A, 120, 240, or 480
Vac.
⅛ Hp, 120 Vac; ¼ Hp,
240 Vac
0.5 A, 125 Vdc, 0.25 A,
250 Vdc.
UL/CSA Rating: L23
20 A, 120, 240, or 480
Vac.
1 Hp, 120 Vac; 2 Hp, 240
Vac
0.5 A, 125 Vdc, 0.25 A,
250 Vdc.
UL/CSA Rating: L59
10 A, 120 or 240 Vac.
0.3 A, 125 Vdc, 0.15 A,
250 Vdc.
UL/CSA Rating: L22
1 A, 125 Vac.
UL/CSA Rating: L22
1 A, 125 Vac
PLUNGER ACTUATION
Catalog Listing Prefix
(*listing indicates
replacement parts)
31CX, , 41CX,
101CX*
32CX, 42CX, 102CX* 36CX, 46CX, 106CX* 3172CX
Circuitry Single-Pole Double-
Throw
Single-Pole Double-
Throw
Single-Pole Double-
Throw
(Gold Contact) Single-
Pole Double-Throw
Electrical Ratings
UL/CSA Rating: L96
15 A, 120, 240, or 480
Vac.
⅛ Hp, 120 Vac; ¼ Hp,
240 Vac
0.5 A, 125 Vdc, 0.25 A,
250 Vdc.
UL/CSA Rating: L23
20 A, 120, 240, or 480
Vac.
1 Hp, 120 Vac; 2 Hp, 240
Vac
0.5 A, 125 Vdc, 0.25 A,
250 Vdc.
UL/CSA Rating: L22
1 A, 125 Vac.
UL/CSA Rating: L22
1 A, 125 Vac
Pretravel, max. 2,5 mm [0.10 in]
Differential Travel,
max.
1 mm [0.04 in] 2 mm [0.08 in] 1 mm [0.04 in]
Overtravel, min. 4,75 mm [0.19 in]
