Honeywell DC1020 - Input Codes

Configuration
8/05 DC1010/1020/1030/1040 Product Manual 37
4.6 Input Codes
4.6.1 Code Selection
It requires that the Input Code in ‘Configuration 2’ mode be selected properly before the
operation starts. See Section 4.2.1 [Parameters Input 1 (INP1) and Input 2 (INP2)]

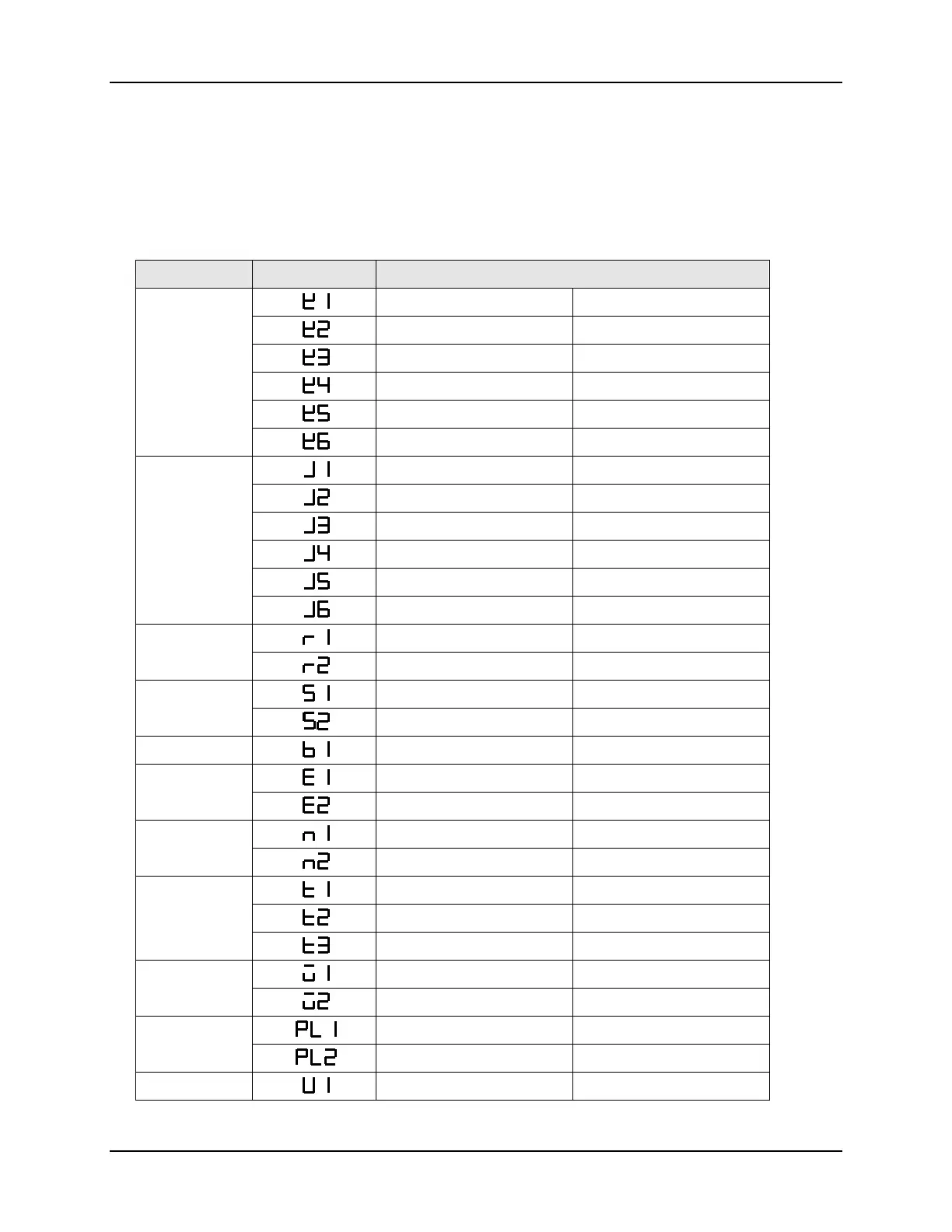

Table 4-5 Thermocouple Inputs
TYPE CODE RANGE
0.0~200.0°C 0.0~392.0°F
0.0~400.0°C 0.0~752.0°F
0~600°C 0~1112°F
0~800°C 0~1472°F
0~1000°C 0~1832°F
K
0~1200°C 0~2192°F
0.0~200.0°C 0.0~392.0°F
0.0~400.0°C 0.0~752.0°F
0~600°C 0~1112°F
0~800°C 0~1472°F
0~1000°C 0~1832°F
J
0~1200°C 0~2192°F
0~1600°C 0~2912°F
R
0~1796°C 0~3216°F
0~1600°C 0~2912°F
S
0~1796°C 0~3216°F
B
0~1820°C 0~3308°F
0~800°C 0~1472°F
E
0~1000°C 0~1832°F
0~1200°C 0~2192°F
N
0~1300°C 0~2372°F
0.0~400.0°C 0.0~752.0°F
0.0~200.0°C 0.0~392.0°F
T
0.0~350.0°C 0.0~662.0°F
0~2000°C 0~3632°F
W
0~2320°C 0~2372°F
0~1300°C 0~2372°F
PLII
0~1390°C 0~2534°F
U
-199.9~600.0°C -199.9~999.9°F
