Kit Instruction, continued
Page 2 of 4 44-45-33-60B

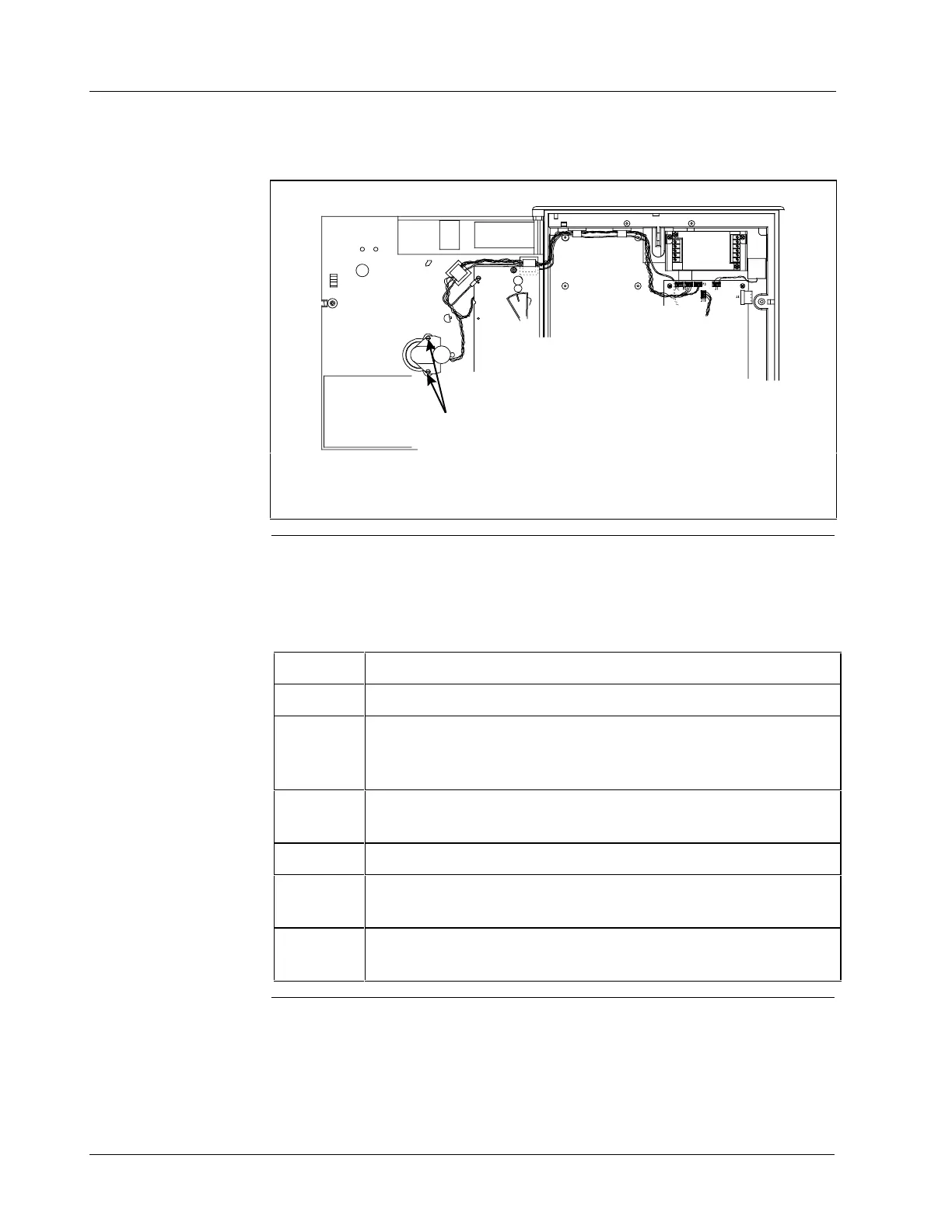

Component Location Refer to Figure 1 for the component locations and Table 1 for the
for DR4200/DR4300 installation procedure.
Scr ews
24240
Figure 1 – Component Location
DR4200/DR4300 Follow the procedure in Table 1 to replace the existing chart hub
Procedure assembly in your recorder.
Table 1 –
Chart Hub Assembly Replacement for DR4200/DR4300 Recorders
Step Action
1
Open the chart door and swing the chart plate out.
2
Remove chart hub (front of chart plate) and chart motor (rear
of chart plate) by removing screws. Save screws. Pull hub
off the motor.
3
Select the chart hub from the kit that matches the one you
removed.
4
Attach hub to motor. Refer to chart hub types on page 1.
5
Hold motor in place and adjust chart hub flush with platen
and centered in platen opening.
6
Re-install motor with screws. Ensure that chart hub rotates
freely and does not bind.
To Next Page
