Installation
3/00 DR4300 Circular Chart Recorder Product Manual 29
Main PCA
Pen 2
Main PCA
Pen 1
3
24821
7
TB2
TB1
7
TB2
TB1
100 Vac to 240 Vac
L2/N L1/H
1
2
4
It is the user’s responsibility to provide a switch and
non-time delay (North America), quick-acting, high
breaking capacity, Type F, (Europe) 1/2 A, 250 V
fuse(s) or circuit-breaker as part of the installation.
1
PROTECTIVE EARTH (Ground): Grounding of
this recorder shall be in accordance with National
and Local electrical codes.
2
NOISELESS (Clean) EARTH (Ground): To minimize
electrical noise and transients that may adversely
affect the recorder, connection of the recorder terminal
(located in the rear of the case) to a local earth
(ground), using a No. 11 (4 mm
2
) braided copper
conductor, is required.
3
4
For 2 Pen Recorder/Controller, connect ac power
to TB1 of Pen 2 PCA. Supply connections must be
made at TB6, if installed.
N
L
5
5
Wire ac power to this connector if installed.
TB6

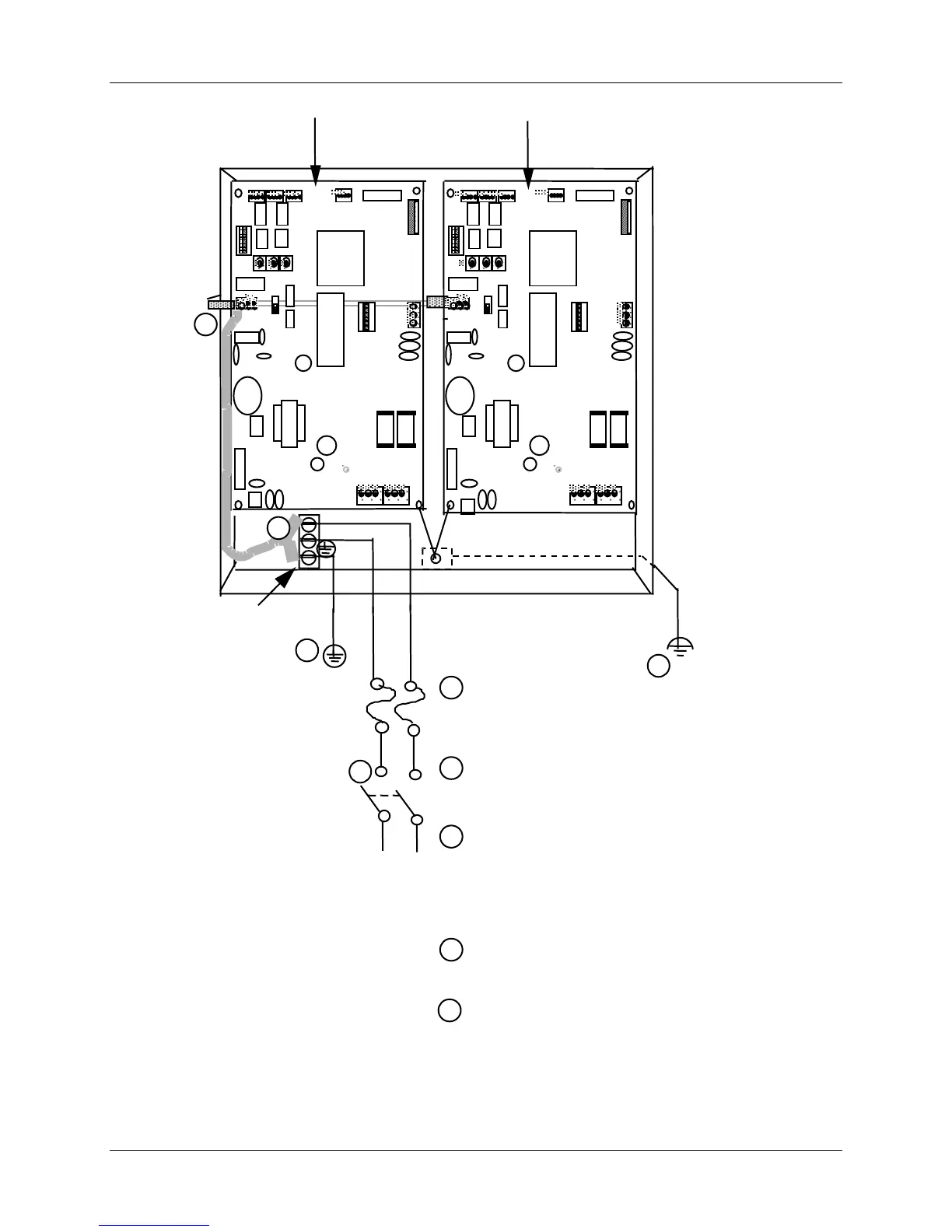

Figure 2-9 Power Wiring – Models Without CE Mark
