DISTRIBUTED I/O
29 EN0B-0090GE51 R0802
Accessories, Standards, Ratings, and Literature
Accessories
— XAL 1 Swivel Label Holder (required for Manual Override
Modules, package includes 10 XAL 1 swivel labels).
— XAL 2 Cover Release Tool (required for opening the
module housing e.g. to set the module address using the
rotary HEX switch; package includes 20 XAL 2 Cover
Release Tools).
— 209541B Termination Module (one or two required,
depending on L
ONWORKS bus layout; see section
"LonWorks Bus Termination Modules" on page 23).
— XAL-Term L
ONWORKS Connection and Termination
module (see Fig. 35 on page 23).
Approvals and Standards
• CE and EN 50082-1
Environmental Ratings
• Operating temperature: 32° to 122°F (0° to 50°C)
• Shipping/storage temperature: -13° to 150°F (-25° to
65°C)
• Relative humidity (operation and storage): 5% to 90%,
non-condensing
Applicable Literature
• EN0B-091 Excel 100/500/600 System Overview
• EN1R-1047 Excel 500/600 Installation Instructions
• EN0B-270 Excel 50/500 LONWORKS Mechanisms
electronic module
(XFL521x, 522x,
523x, 524x)
manual
override
module
(XFR522,
XFR524)
3-13/16 inches (97 mm)
4-1/8 inches (104.5 mm)
top view
side view
3-1/2 inches (89 mm)
with electronic module
4-1/4 inches (108 mm)
with manual override module
1-1/2 inches
(38 mm)

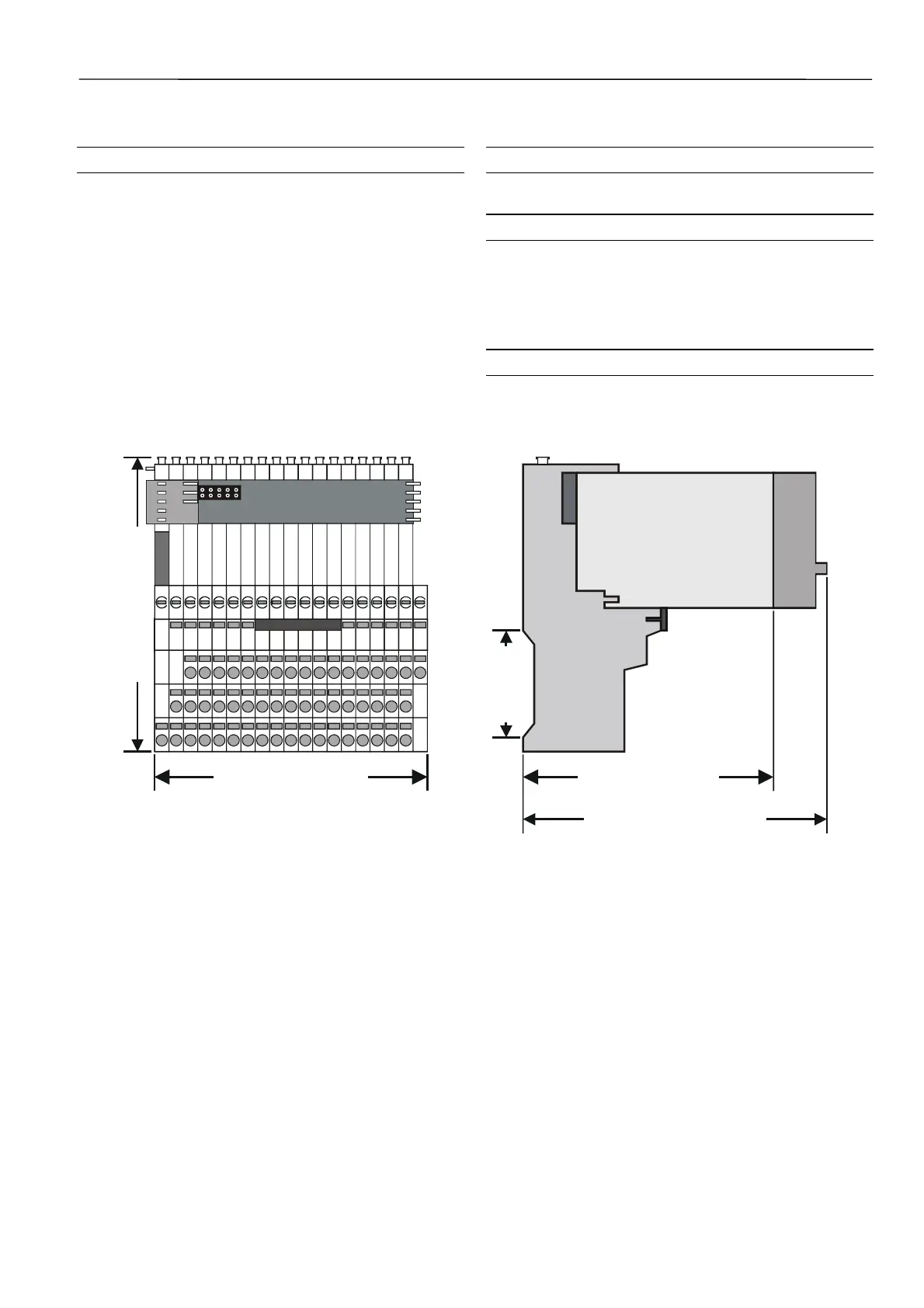

Fig. 39. Terminal block XSL513/514
