Galaxy Flex Installer Manual Install peripheral devices
23

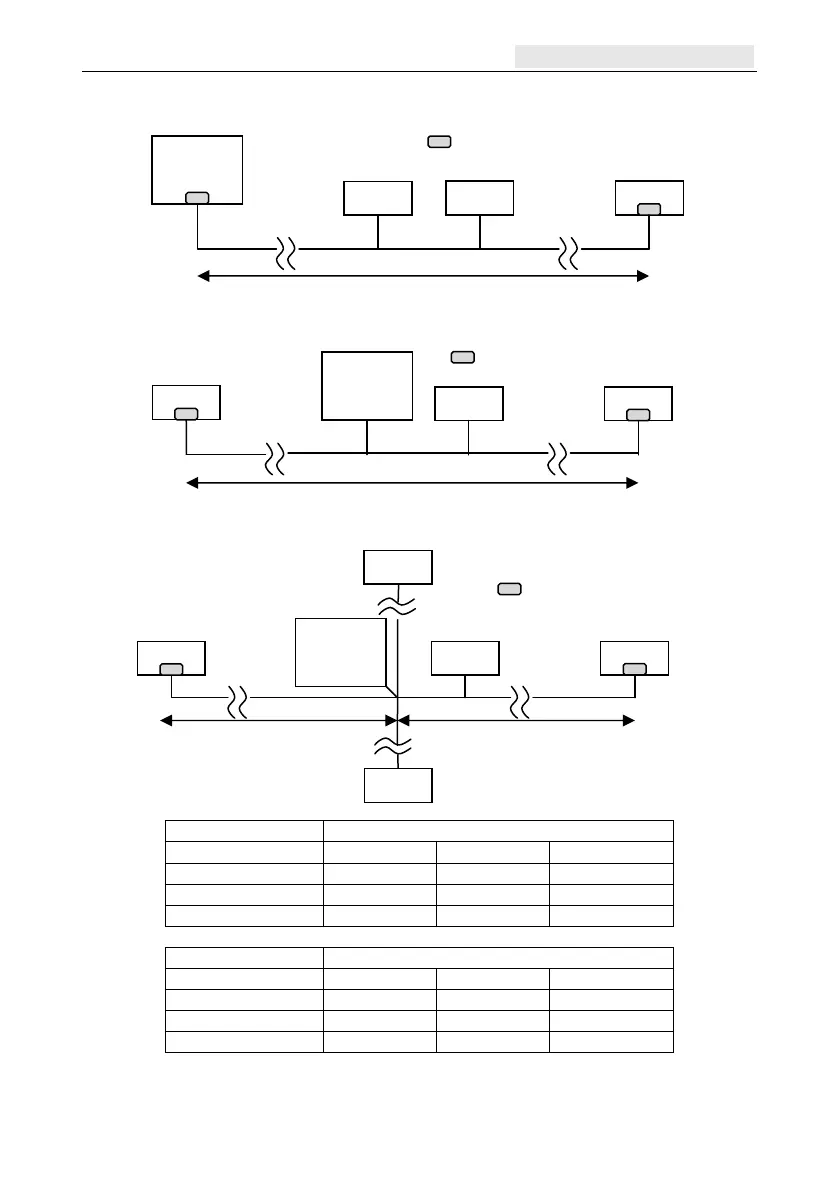

Configuration A (Single Chain)
Configuration B (Two Chains)
Configuration C (Three or four Chains – Intellibus only)
Intellibus Maximum distance of D
Cable type Config A Config B Config C
Alarm cable
100 m 100 m 100 m
Cat5/5e
1000 m 1000 m 100 m
Belden 8243
500 m 500 m 100 m
RS485 Maximum distance of D
Cable type Config A Config B Config C
Alarm cable
100 m 100 m Do not use
Cat5/5e
1000 m 1000 m Do not use
Belden 8243
1000 m 1000 m Do not use
Device
Device
Panel
D
= End Of Line Resistor
fitted
Device
Device
Device
Panel
= End Of Line Resistor
fitted
Device
D
D = Longest cable from panel
E = Second longest cable
Device
Device
= End Of Line Resistor
Device
E D
Panel
Device Device
