GSMX4G / GSMXCN4G Installation and Setup Guide
– 7 –

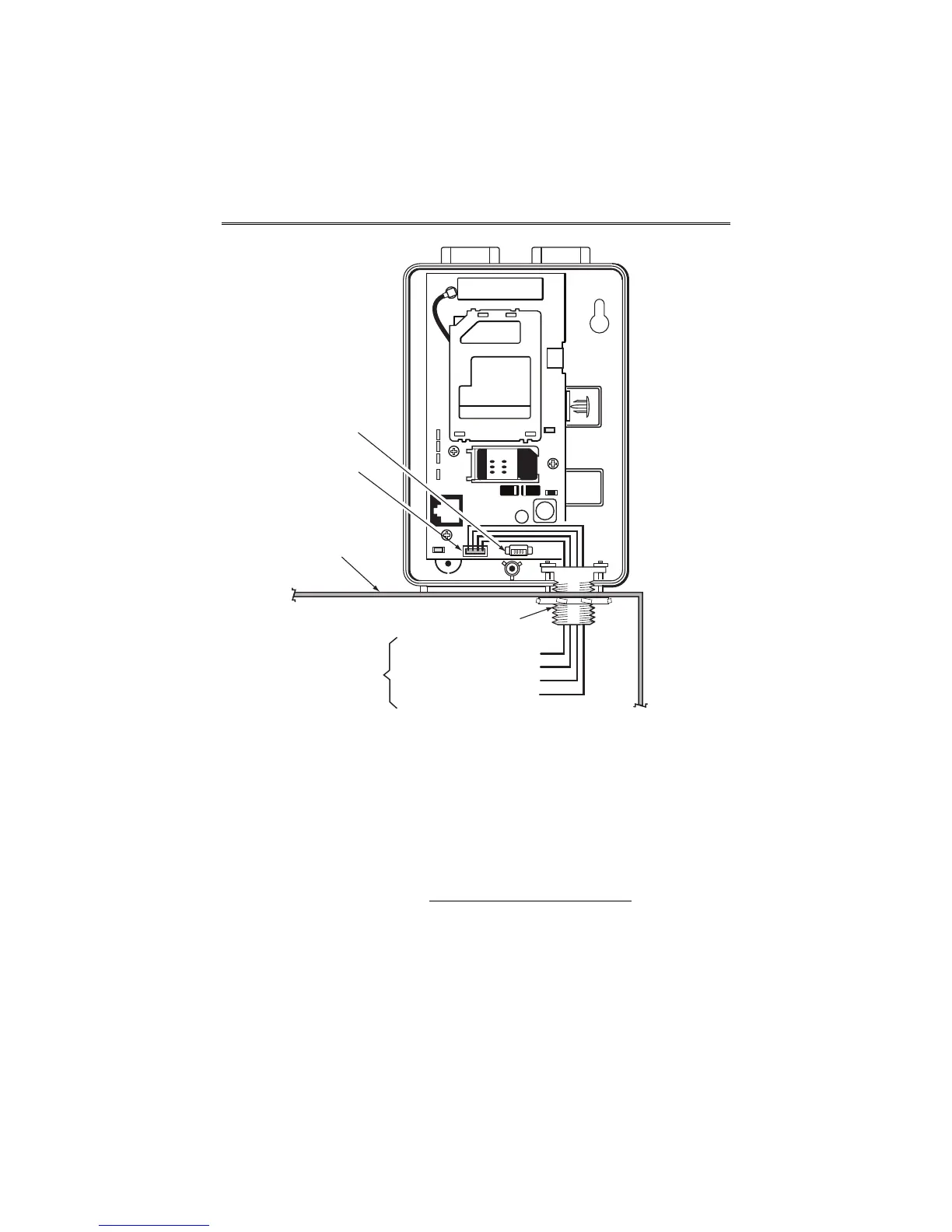

To ECP Bus on
control panel
circuit board.
ECP Cable
Threaded Mount
Control Panel
Cabinet
Audio
Connector
GSMX4G-005-V0
PANEL DATA OUT - Yellow
AUX PWR (+12V) - Red
GND - Black
PANEL DATA IN - Green
4. Connect the ECP cable to the communicator circuit board and thread
the wires through the threaded mounting adapter.
5. Refer to the control panel’s installation guide, and complete the ECP
cable wiring.
6. Secure the wiring with ties as necessary.
Wiring the Module for two-way voice
The GSMX4G requires an optional audio cable (GSMX-AUDIO, black) to
support two-way voice using the AVS Base Unit. Note the AVS Base
Unit is part of Honeywell’s AVS Audio Verification System
. This system
consist of the AVS Base Unit, Remote Station, and the Remote Station
PC board. For detailed information, please refer to the AVS Audio
Verification System documentation. Follow the guidelines below for
connecting the audio cable.
1. Power down the communicator, control panel and AVS Audio
Verification System. (When the communicator is fully wired up,
