Document 800-23282 – Rev C – 08/2017
© 2017 Honeywell International Inc. All rights reserved. No part of this publication may be reproduced by any means without written permission from Honeywell. The information in this publication is believed to be accurate in all respects. However, Honeywell cannot assume responsibility for any consequences
resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes.
Mounting and Aiming the Camera
1. Remove the dome cover from the camera assembly using the supplied Allen key.
2. If you are using a microSD card with the camera, install it before continuing. See below for details.
3. Connect the Ethernet cable to the RJ-45 port on the camera.
4. If the other end of the Ethernet cable is not connected to a PoE (Power-over-Ethernet) switch or
NVR, connect the power connector of the camera to a 12 VDC power source.
5. Fix the camera assembly to the mounting surface using the supplied screws.
6. Aim the camera lens in the desired direction, then tighten the lock screw on the camera assembly.
7. Reattach the dome cover.
Logging On to the Camera
If the camera is connected to the PoE port of a Honeywell Embedded NVR, it can be configured using
the NVR.
To log on remotely from a PC, install the Honeywell Config Tool from the software and documentation
CD, find the camera on the network, and then open the web browser with the Honeywell Config Tool. The
default user name is admin (case-sensitive) and the default password is 1234.
Adjusting the Zoom and Focus Settings
After you have logged on to the camera, go to Setup > Camera > Conditions > Zoom and Focus to
fine-tune the camera’s zoom and focus settings.
Recommended Recorders
Regulatory Statements
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.
Manufacturer’s Declaration of Conformance
North America The equipment supplied with this guide conforms to UL 60950-1 and CSA C22.2 No. 60950-1.
Europe The manufacturer declares that the equipment supplied is compliant with the European Parliament and
Council Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(2011/65/EU), General Product Safety Directive (2001/95/EC), and the essential requirements of the EMC directive
(2014/30/EU), conforming to the requirements of standards EN 55032 for emissions, EN 50130-4 for immunity, and
EN 60950-1 for electrical equipment safety.
CAUTION
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
WEEE (Waste Electrical and Electronic Equipment)
Correct disposal of this product (applicable in the European Union and other European countries with
separate collection systems). This product should be disposed of, at the end of its useful life, as per applicable
local laws, regulations, and procedures.
HEN*4 8/16/32/64-channel Focus 4K NVRs (H.264 and H.265)
HEN*2 4/8/16-channel Performance Series NVRs (H.264)
HRHT4* 4/8/16-channel 4 MP HQA/IP/CVBS Hybrid DVRs (H.264)
HRHQ1* 4/8/16-channel 1080p HQA 5-in-1 DVRs (H.264)

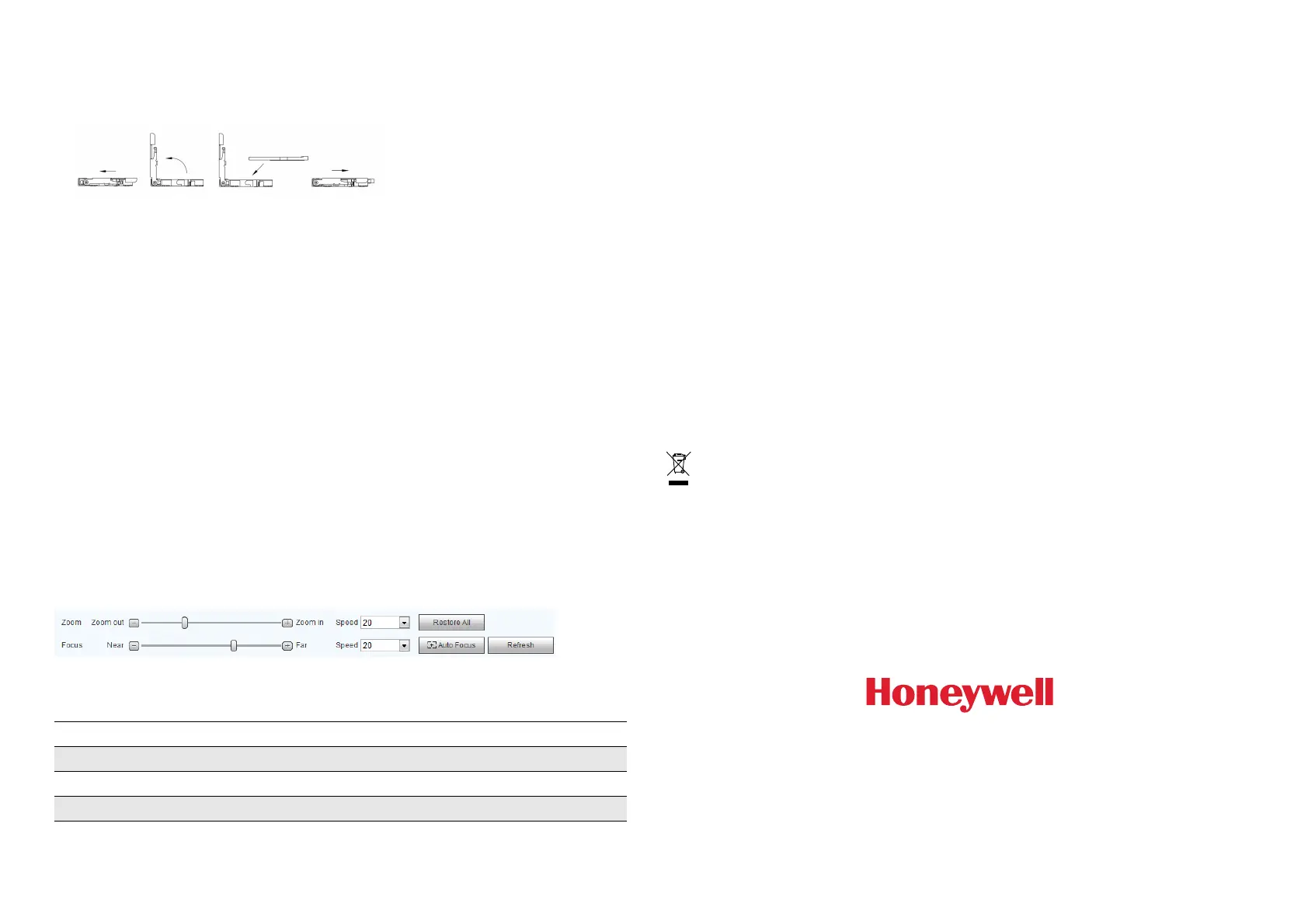

1. Push and slide
metal shell to
unlock position.
2. Open metal
shell.
3. Insert microSD
card.
4. Close metal shell
and slide to lock
position.
microSD card
