HE240, HE280 HUMIDIFIER AND INSTALLATION KIT
13 69-2686EF—01
Installing the Humidistat
1. Find the mounting template included in the H8908 Humidistat Installation
Instructions.
2. Apply the template to the return
duct (see Fig. 3 on page 6). Make
sure the template is level before
drilling. (Use of a small level is rec-
ommended.)
3.
Remove base bracket from the H8908
.
4. Slide the foam gasket onto the base.
(See Fig. 14.)
5. Position the base bracket on the duct
with the arrow up.
6. Secure the base bracket to the duct
using the four 1 in. (25 mm) mounting
screws provided with the humidistat.
(See Fig. 15.)

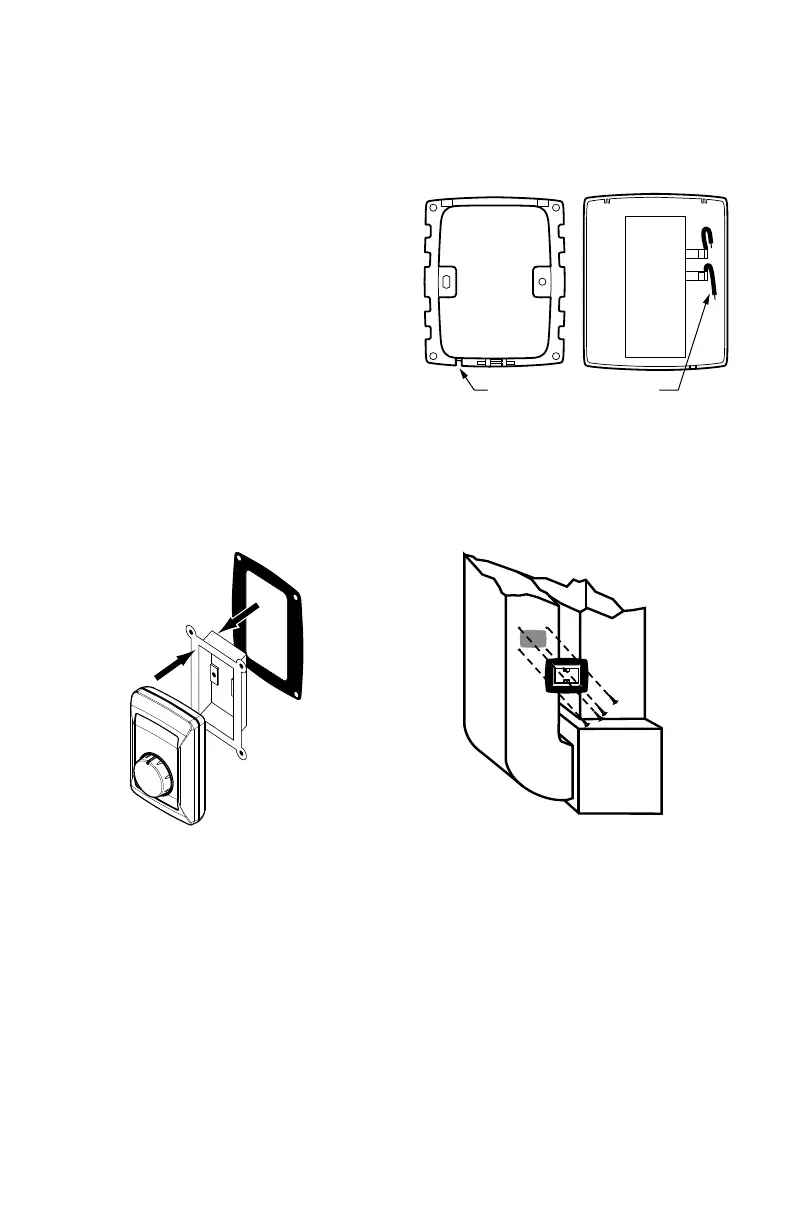

Fig. 13. Humidistat base and rear view.
7. Connect the low-voltage wires to the leads and replace the H8908 case.
See Fig. 16.
NOTE: For wall mounting instructions, see the H8908 Installation Instructions.
Fig. 14. Slide the foam
gasket onto the base.
Fig. 15. Secure the
base bracket to the duct.
M24733
M29879
