HE240, HE280 HUMIDIFIER AND INSTALLATION KIT
7 69-2686EF—01
INSTALLATION
1. Turn off power to the air handling system at the circuit breaker.
2. Draw a level line on the plenum in the selected location.
IMPORTANT
To ensure optimal product performance, be sure the mounting template is
level before marking. Use of a small level is recommended.
3. Locate the template (form number 69-2710 included in the box). For the HE240
model, cut out the template along the dotted line.
4. Tape the template in position and trace around the template.
5. Remove the template and carefully cut the rectangular opening using tin snips.
6. Disassemble the humidifier; remove the cover and take out the humidifier pad
assembly. See Fig. 4.

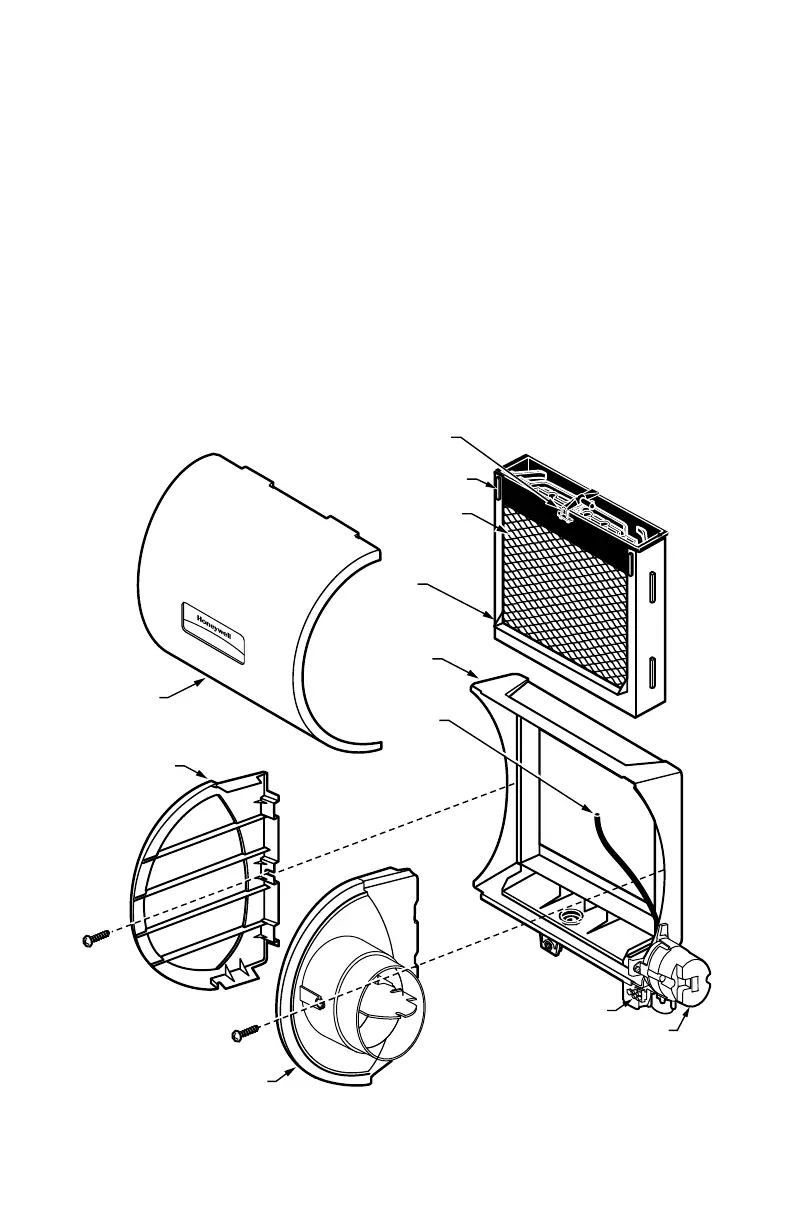

Fig. 4. Disassembling humidifier.
M33323
WATER
FEED NOZZLE
FRAME
HUMIDIFIER
HOUSING
WATER
FEED TUBE
HUMIDIFIER
PAD ASSEMBLY
COVER
SIDEWALL
BY-PASS SIDEWALL
PRESSURE SWITCH
SOLENOID VALVE
PerfectFLO™ WATER
DISTRIBUTION TRAY
