Performance Series Network Video Recorder User Guide
246

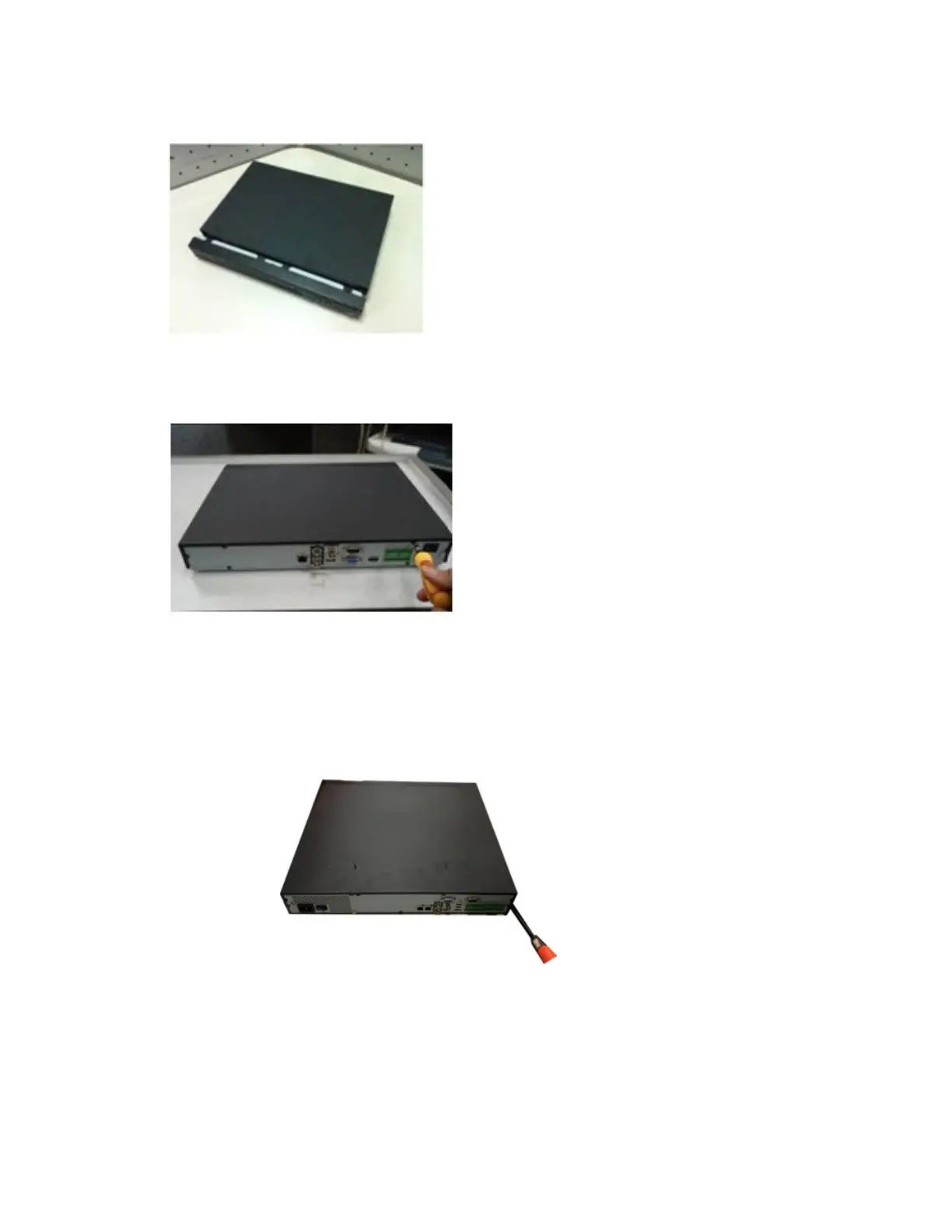

Figure 15-6 Replacing the NVR Cover
7. Secure the NVR cover in place by turning the screws in the rear and side panels.
Figure 15-7 Securing the NVR Cover
Installing a HDD on HEN162*4/HEN322*4/HEN642*4
1. Loosen the screws on the rear panel of the NVR, remove the front cover, and set it aside.
Figure 15-8 Removing the NVR Cover
2. Loosen four screws on the HDD.
