4EN
INSTALLATION (CONTINUED)

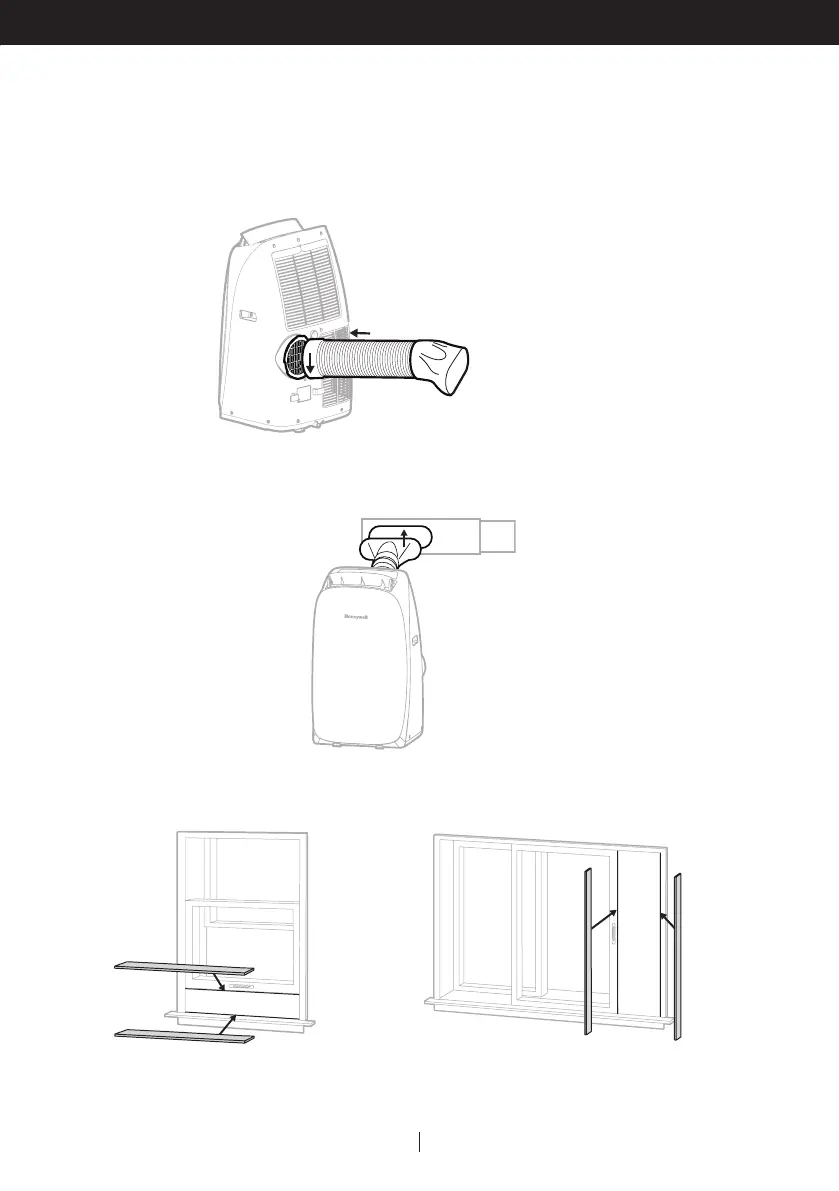

3. Connect the hose to the hose connector on back of the unit. Slide-in the hose connector
downwards until it is locked in place.
Note: After setting the window bracket to the size of your window, please remove it from the window
and follow the instructions below.
Hose:
Dia. 5.9" (15 cm)
Length: 10.6" to 59" (27 cm to 150 cm)
4. Connect the window bracket to the window bracket panel adapter. Ensure that all connections are
tight and installed properly.
Cut the Foam Seal (adhesive) to the proper length and attach them to the window sash
and frame.
5.
Horizontal Sliding Window Vertical Sliding Window
To Next Page
