INSTALLATION
It is important that the installation instructions below are followed for successful installation of this
Portable Air Conditioner. Please call Customer Support if you have any difficulties or queries
regarding these installation procedures.
6
1 3 4
x1
x1
x1 x2 x1
Installation Kit:
Installation Steps:

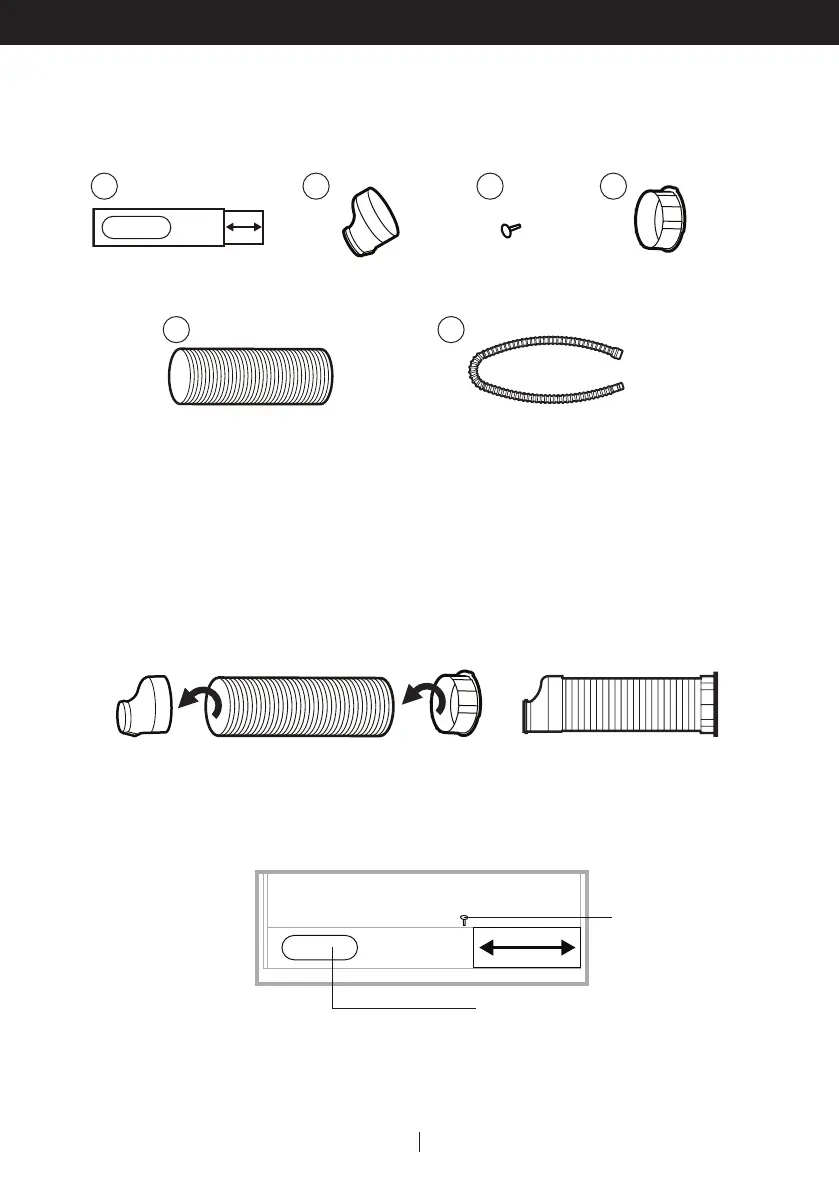

Install the exhaust hose with window bracket adapter and hose connector on both sides. Ensure
proper fit on both ends.
1.
2. Adjust the window bracket as per width or height of your window and insert the plastic pin to fix at
the desired position. There is a hole where the exhaust hose will be inserted later. Make sure this
hole is not blocked.
Hole for Window Bracket
Panel Adapter & Exhaust Hose
Plastic Pin
26.6", 3.2" to 52"
(67.5 cm, 92 cm to 132cm)
1. Window Bracket Kit (1 Set) 4. Exhaust Hose Connector (1 Piece)
2. Window Bracket Panel Adapter (1 Piece) 5. Exhaust Hose (1 Piece)
3. Plastic Pin (2 Pieces) 6. Drain Tube (refer to Continuous
Draining for Dehumidifier Mode)
(1 Piece)
2
5
x1
=
EN
To Next Page
