Installation Backbox Mounting
14 HPFF12 NAC Expander — P/N 53576:B3 10/1/2018
Semi-Flush Mounting
Do not recess box more
than 3.875” into wall to
avoid covering venting
holes on top of box.
92udlsencl.wmf

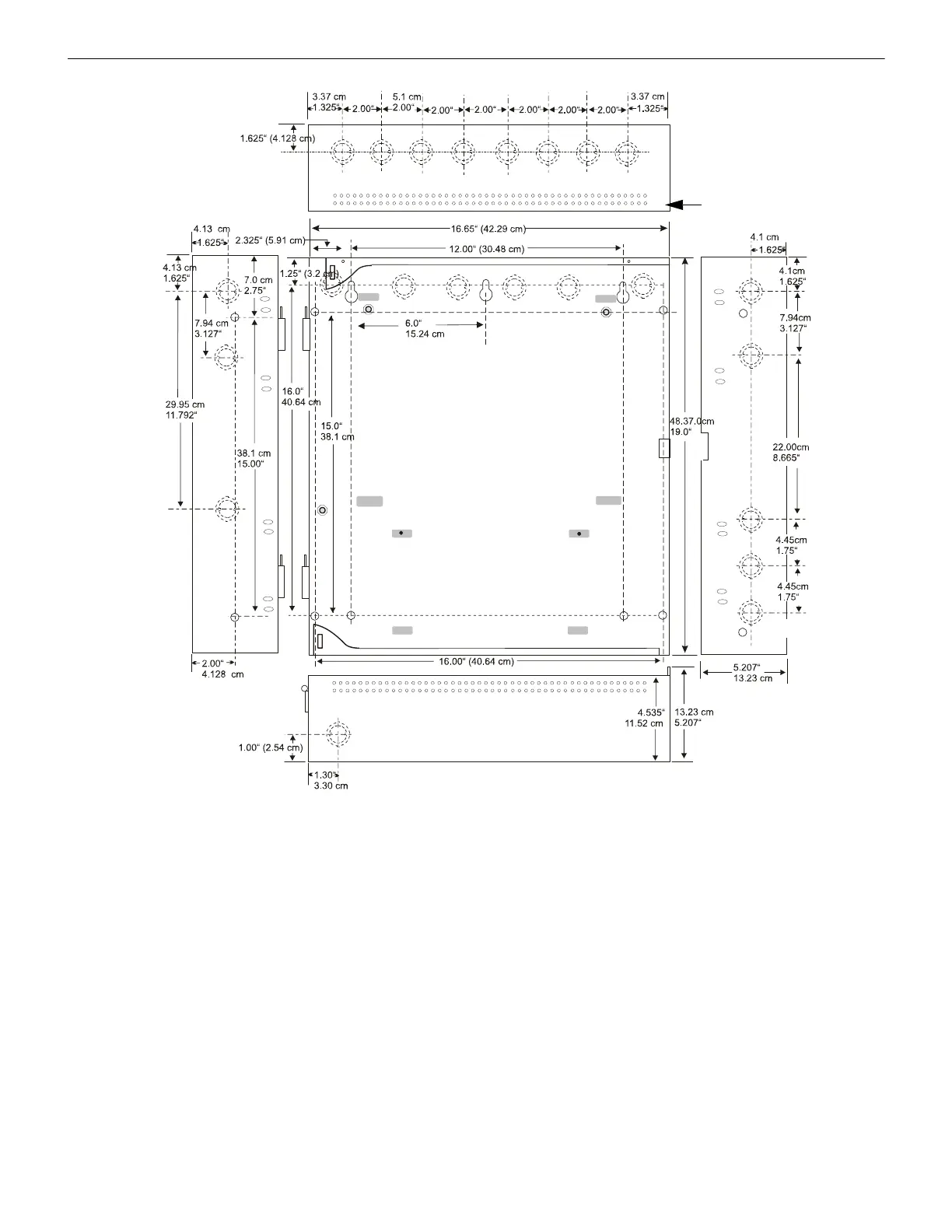

Figure 2.2 Standard Cabinet: Dimensions for Wall-mounting
