Backbox Mounting Installation
HPFF12 NAC Expander — P/N 53576:B3 10/1/2018 15
(13.097cm)
5.156”
5.93”
(15.062cm)
5.93”
(15.062cm)
7.12”
(18.084cm)
(6.197cm)
2.44”
0.875” (2.223cm)
1.125” (2.858cm)
45-3/4"
(116.21)
24.125” (61.28cm)
24.0” (60.96cm)
1.625”
(4.13cm)
2.06”
(5.24cm)
11.5
(29.21cm)
5.16”
(13.1cm)
(10.16cm)
4”
4”
(5.08cm)
1”
(2.54cm)
11
(27.94cm)
11
(27.94cm)
2.625”
(6.604cm)
0.875 (2.22cm)
1.125 (2.86cm)
0.875 (2.22cm)
1.125 (2.86cm)
1.875”
(4.7cm)
37.03”
(94.06cm)
0.31”
(0.79cm)
0.31”
(0.79cm)
45.875”
(116.52cm)
2.25”
(5.72cm)
2.25”
(5.72cm)
19.5”
(49.53cm)
16.0” (40.64cm)
1.125”
(2.858 cm)
0.50”
(1.27 cm)
0.50”
(1.27 cm)
0.250”
(0.635 cm)
HPFF8LargeEqpt.wmf
Chassis-
mounting
studs
(2 per row of
backbox)
Keyholes
2 places
Mounting holes
2 places
e
q
c
a
b
-
d
2
.
w
m
f
Four rows of
Equipment
c
a
b
t
o
p
.
w
m
f
Top View of Backbox
c
a
b
4
k
e
y
h
o
l
e
.
w
m
f
Keyhole dimensions
Height of
mounting bolt
after installation
NOTE: See CAB-4 Series Install Sheet PN 15330 and EQ Series Install Sheet PN 53412 for door-mounting details and
measurements for A, B, and C size backboxes. This drawing shows EQBB-D4 knockout locations.
Top knockout:
Inner:
Outer:
Four Lower knockouts:
Inner:
Outer:
Knockouts:
Inner:
Outer:

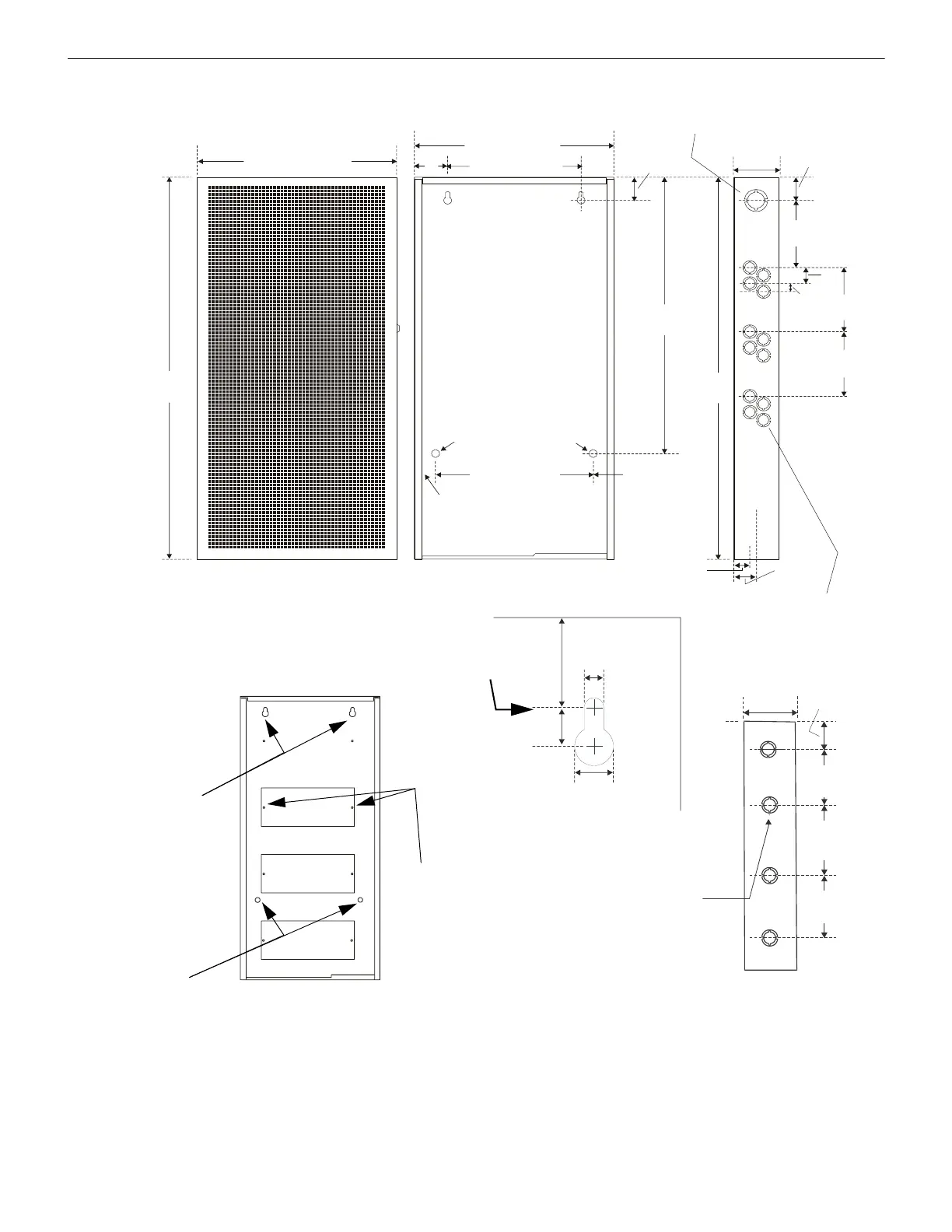

Figure 2.3 FACP Cabinet-Mounting Details: Backbox-Mounting Holes and Chassis-Mounting Studs (EQBB-D4
shown)
