11. TROUBLESHOOTING GUIDE
For any issue not shown on the troubleshooting guide, please contact customer service.
1-855-687-2223
Do not attempt to disassemble the unit yourself. The manufacturer will not be responsible for
any resulting damages or incidents, and such action will void the manufacturer’s warranty.
Fig.1
Fig.2
Fig.4
Fig.7
Fig.5
Fig.8
Fig.6
Fig.3

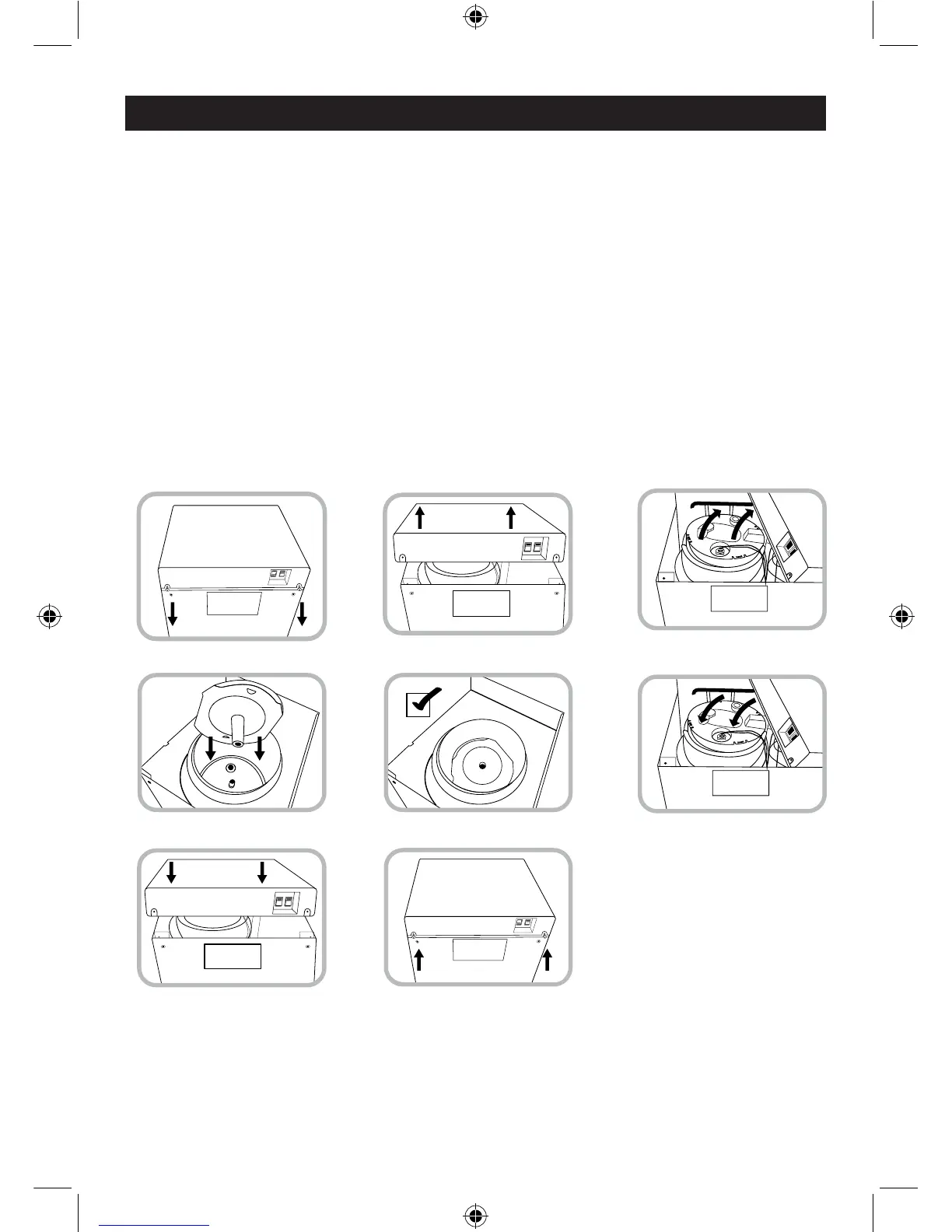

1. Remove the left and right screws of the top cover on the back of the unit. (Fig.1)
2. Gently open the top cover (careful with the cables on the right from the hot and cold switches)
(Fig.2).
3. Place the top cover to the side of the cooler.
4. Remove the cold tank lid opening the 4 clips located to the side (Fig.3).
5. Place the cold tank lid to one side of the unit.
6. Locate the hot water funnel, a translucent plastic piece with a prong inside the cold tank. Fix it
rmly to the cold tank attaching the prong to the metal prong of the tank (Fig.4) (Fig.5).
7. Close the lid of the cold tank (Fig.6).
8. Close the top cover and screw back the two screws (Fig.7) (Fig.8).
