APPENDIX, WIRING DIAGRAMS
1. Master Points List - Configurable and Fixed Function Points
2. Master Application Inventory - All Wiring Diagrams
UI1 MIXED AIR SENSOR
UI2 OUTDOOR AIR, USER SELECTED MONITOR POINT (20K)
UI3 DISCHARGE AIR SENSOR
UI4 CO2 SENSOR
UI5 FILTER PRESSURE, USER SELECTED MONITOR SENSOR 1 (NEED TO SCALE)
UI6 FILTER PRESSURE, COMPRESSOR CURRENT SENSOR, FAN CURRENT SENSOR, USER SELECTED MONITOR SENSOR 2 (NEED TO
SCALE)
DI1 OCCUPANCY, MOTION SENSOR
DI2 PULSE METER
DI3 FREEZE STAT, DIRTY FILTER
DI4 PROOF OF AIRFLOW, USER SELECTED MONITOR SWITCH
AO1 ECONOMIZER ACTUATOR
AO2 ACCESSORY LOOP MODULATING, ACCESSORY LOOP STAGE (NEED RELAY), ACCESSORY LOOP AUX MODULATING
AO3 MULTI -SPEED FAN, ACCESSORY LOOP MODULATING, ACCESSORY LOOP STAGE (NEED RELAY), ACCESSORY LOOP AUX
MODULATING
DO1 OCCUPANCY, ECONOMIZER POWER, SIMPLE DEHUMIFICATION, ACCESSORY LOOP STAGE, ACCESSORY LOOP AUX CONTROL POINT
DO2 HEAT 1
DO3 HEAT 2
DO4 HEAT 3, REVERSING VALVE O OR B, LOW SPEED FAN
DO5 SUPPLY FAN
DO6 COOL 1
DO7 COOL 2
DO8 COOL 3, LOW SPEED FAN
MASTER POINTS LIST THOSE IN RED ARE FIXED TO SINGLE INPUT OR OUTPUT DEFINITION
I/O NAME OF INPUT OUTPUT POINT(S)
MCR36706
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20
21 22 23
24 25
26
27 28
29 30 31 32 33 34 35 36 37 38 39 40
24VAC
COM
24VDC
24VAC
R W1 W2
W3 OB G-L Y1
Y2 Y3 G-L RH
RC COM AUX
DO1 AUX G
UI-1
DI-2
DI-3
UI-4
UI-5
UI-6
UI-2
UI-3 COM
COM
COM DI-4 DI-1
COM
AO-3
AO-1
COM
A0-2
COM
NET-1 NET-2
S-BUS
S-BUS
SHIELD EGND
SYLK BUS
24 VAC
CONTROLLER
POWER
LCBS CONNECT – INFORMATION
OS#
DESCRIPTION
YCRL6438SR LCBS CONTROLLER (WITH WALL MODULE)
LCBS
CONTROLLER
LCBS
CONTROLLER
WALL
MODULE
BUILDING NAME
CVAHU RTU NAME
DATE
COOL 2
HEAT 1
HEAT 2
FAN
CO
O
L
2
COOL 1
HVAC SYSTEM
24 VAC POWER
EXISTING
TRANSFORMER
C7250A
MA SENSOR
C7250A
DA SENSOR
C7400S SYLK OUTSIDE AIR
ENTHALPY SENSOR
C7400S SYLK RETURN AIR
ENTHALPY SENSOR
M7215A
ECONOMIZER
ACTUATOR
P7640A
PRESSURE
SENSOR
(IN WC,VDC)
HVAC SYST
DRY CONTACT
24 VAC 1 AMP

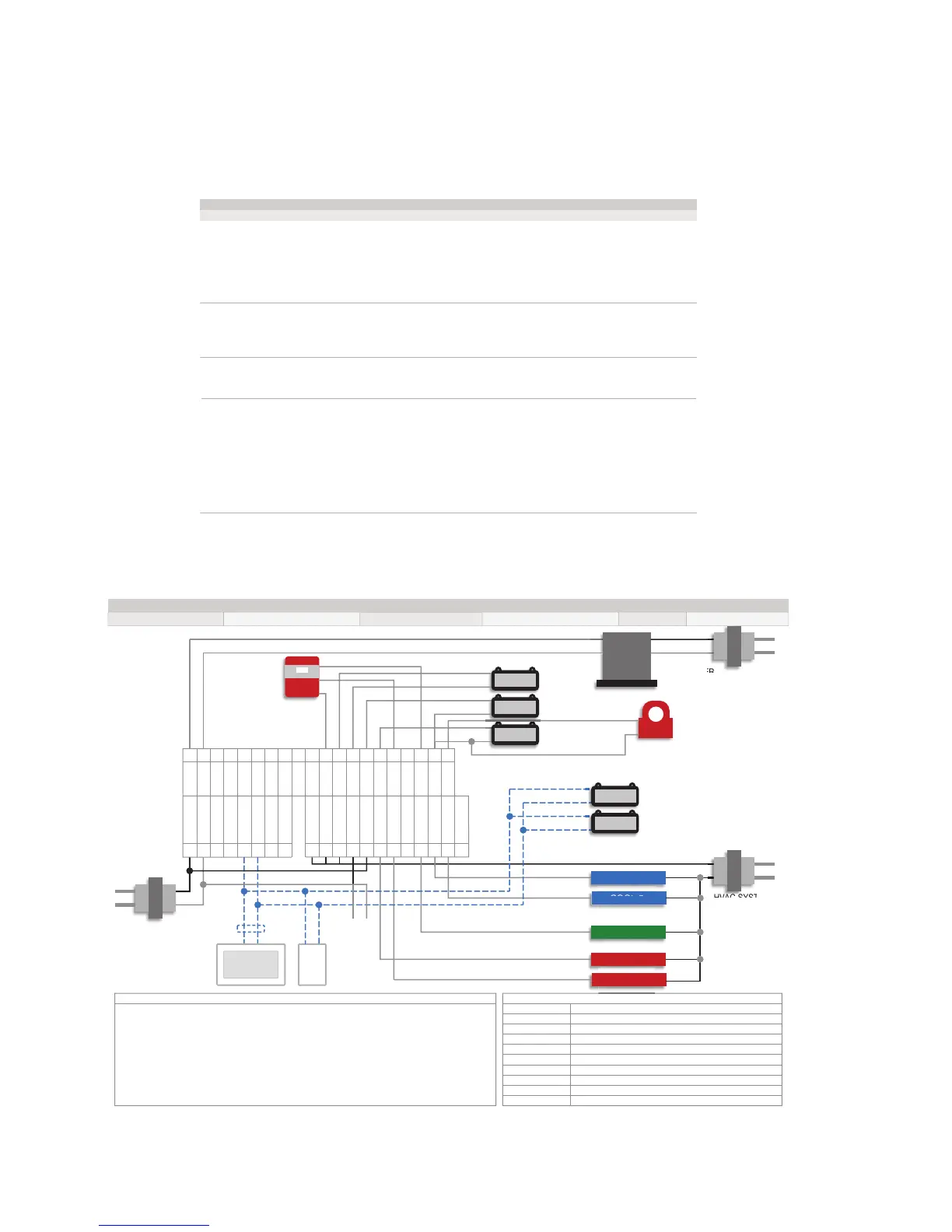

MASTER APPLICATION INVENTORY
ACTUATOR
24 VAC POWER
ER
THIS IS A GENERAL TEMPLATE THAT INCLUDES ALL HONEYWELL DEVICES CONNECTED TO
APPROPRIATE INPUT, OUTPUT TERMINALS ON LCBS CONNECT CONTROLLER.
.
C7250A
OA SENSOR
CTP-10-050-VDC-001
FAN, COMPRESSOR
CURRENT TRANSFORMER
(SELF POWERED)
LCBS CONNECT – COMPONENTS SHOWN
TR40-H-C02
CARBON
DIOXIDE
SENSOR
MCR36707
