14. Sylk Sensor Installation Relating to LCBS Connect Controller
BUILDING NAME
CVAHU RTU NAME
DATE
MCR36721

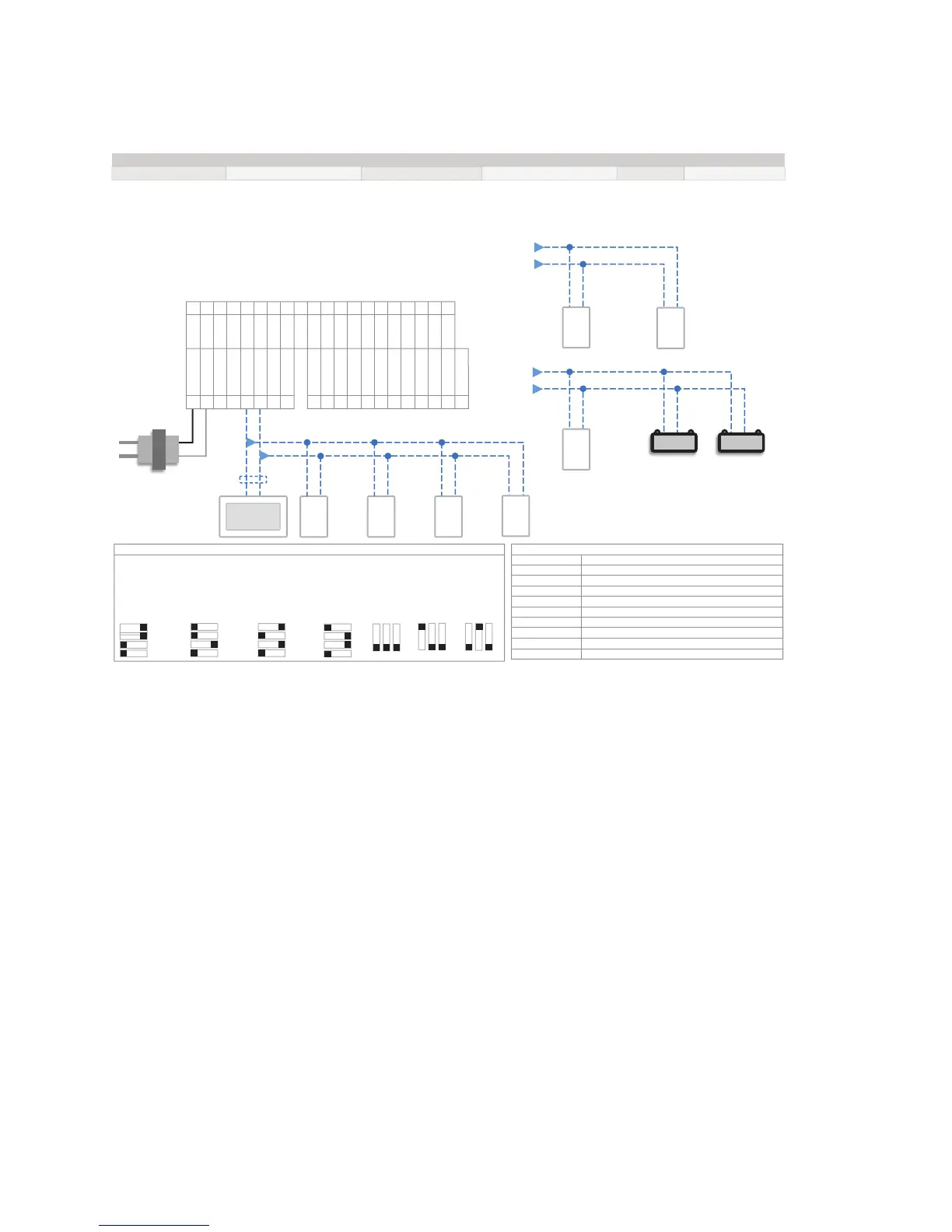

“SYLK” SENSORS – ACCEPTABLE CONFIGURATIONS DUE TO “FOUR POWER UNIT” LIMIT
1 2 3 4 5 6 78
9 10 11 12 13 14 15 16 17 18 19 20
21 22 23
24 25
26
27 28
29 30 31 32 33 34 35 36 37 38 39 40
24VAC
COM
24VDC
24VAC
R W1 W2
W3 OB G-L Y1
Y2 Y3 G-L RH
RC COM AUX
DO1 AUX G
UI-1
DI-2
DI-3
UI-4
UI-5
UI-6
UI-2
UI-3 COM
COM
COM
DI-4 DI-1
COM
AO-3
AO-1
COM
A0-2
COM
NET-1 NET-2
S-BUS
S-BUS
SHIELD EGND
LCBS
CONTROLLER
TR40-H-CO2
CARBON
DIOXIDE
SENSOR
TR40-H-CO2
CARBON
DIOXIDE
SENSOR
TR40-H-CO2
CARBON
DIOXIDE
SENSOR
C7400S
OUTSIDE AIR
ENTHALPY
SENSOR
C7400S
RETURN AIR
ENTHALPY
SENSOR
(POLARITY
INSENSITIVE)
TR40
SPACE
SENSOR
(POLARITY
INSENSITIVE)
TR40
SPACE
SENSOR
TR40
SPACE
SENSOR
TR40
SPACE
SENSOR
SYLK BUS
24 VAC
CONTROLLER
POWER
LCBS
CONTROLLER
WALL
MODULE
RULES: APPLY DEVICES WITH UP TO FOUR POWER UNITS ON SYLK BUS. POWER UNITS:
TR40 SPACE TEMPERATURE SENSOR: ONE (1) POWER UNIT
TR40-H-CO2 TEMPERATURE HUMIDITY CARBON DIOXIDE SENSOR: TWO (2) POWER UNITS
C7400S TEMPERATURE RELATIVE HUMIDITY SENSOR: ONE (1) POWER UNIT
SENSOR SWITCH SETTINGS
ADDRESS 3 ADDRESS 4 ADDRESS 5 ADDRESS 6 ADDRESS 8 ADDRESS 9
TR40-RH-CO2 TR40 TR40 TR40 C7400S C7400S
TEMP RH CO2 TEMP ONLY TEMP ONLY TEMP ONLY TEMP RH TEMP RH
LCBS CONNECT – INFORMATION
OS#
DESCRIPTION
YCRL6438SR LCBS CONTROLLER (WITH WALL MODULE)
LCBS CONNECT – COMPONENTS SHOWN
OUTDOOR
RETURN DISCHARGE
