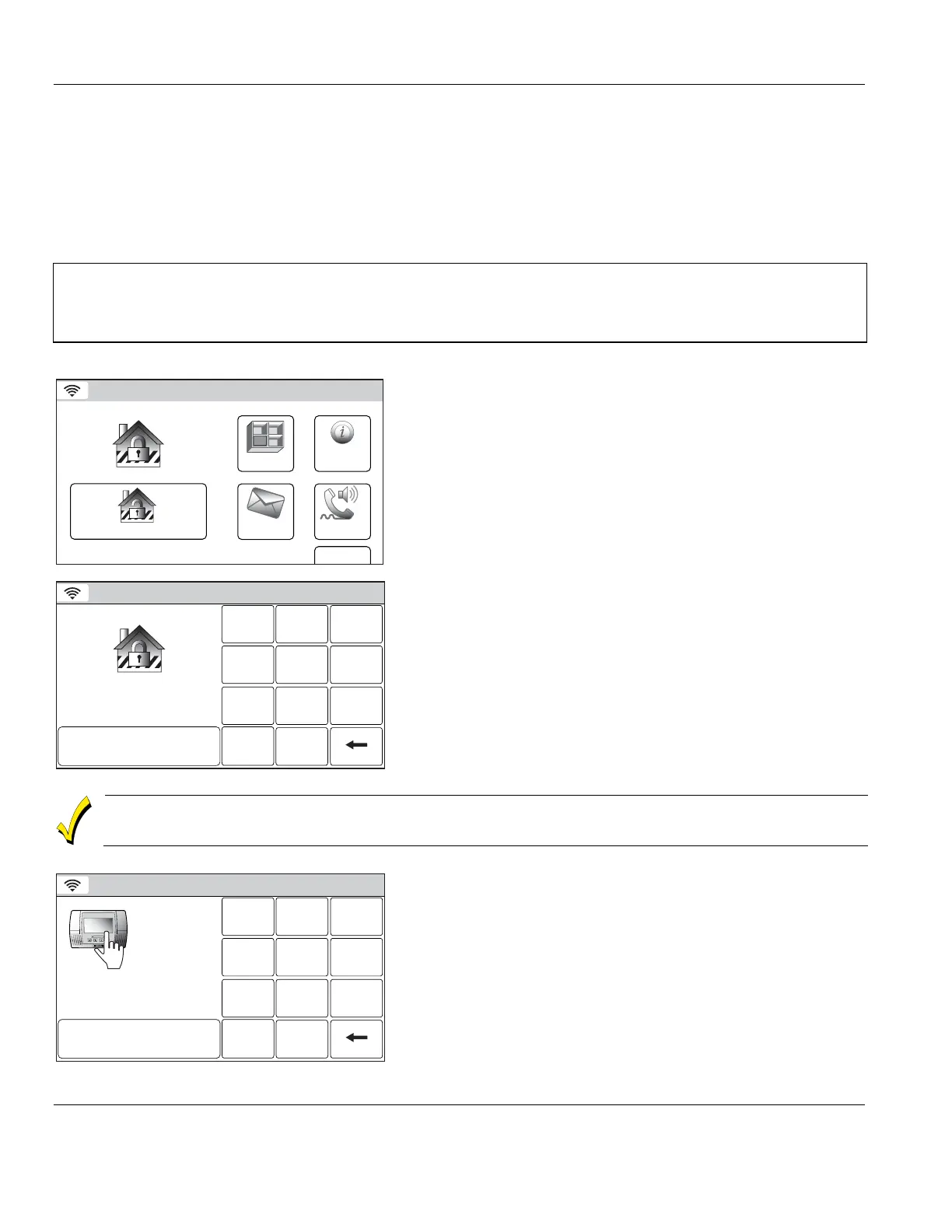

Disarming the System
Armed Stay
5200-100-017-V0
Phone
More
Message
Zones
Disarm
10:18 AM June 8, 2010
System
1. Select the β€œDisarm” icon. The system beeps once and
displays a keypad.
Armed Stay
Enter Code:
Cancel
231
564
0
897
Clear
5200-100-022-V0
2. Enter a valid Code. The system beeps once and announces
β€œDisarmed Ready to Arm”.
Note: If a valid user code is not entered or the Confirm icon has
not been selected within 30 seconds, the system returns
to the β€œsecurity” screen and it will not be disarmed.
If an invalid User Code is entered, system will return to the Security Screen.
Disarming the System During Entry Delay
Armed Stay - Disarm Now
Enter Code:
Cancel
Disarm Now
231
564
0
897
Clear
5200-100-023-V0
ARMED READY
Upon entering the premise when the system is armed, the control
announces β€œdisarm system now”.
1. Enter a valid Code. The system beeps once and announces
β€œDisarmed Ready to Arm”.
Note: If a valid user code is not entered before the programmed
entry delay occurs, the system enters alarm mode.
