LEVEL
M1714A
STEP 7
■■ Position mounting plate on wall. Use a level
to make sure mounting plate is level. Use a
pencil to mark the two mounting holes.

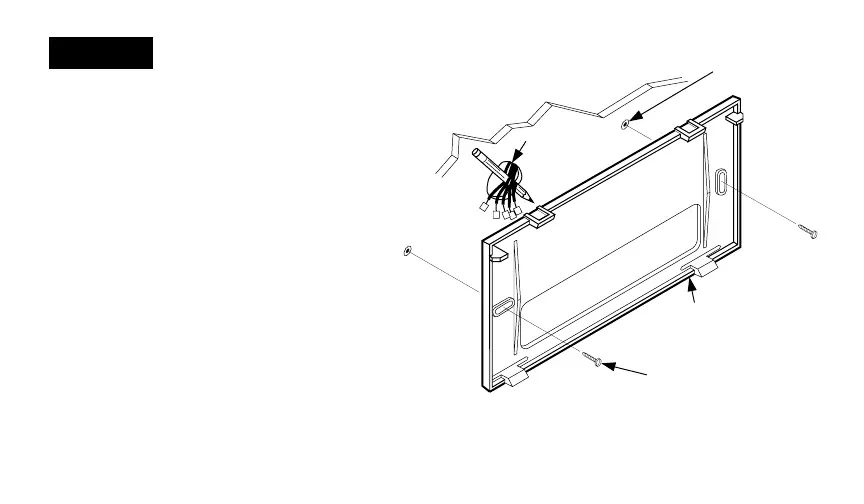

18
WALL
WIRES THROUGH
WALL OPENING
WALL
ANCHORS (2)
MOUNTING
PLATE
MOUNTING
SCREWS (2)
M1718
■■ Remove mounting plate from wall, and drill
3/16 inch holes in wall (if drywall) as marked.
For firmer material such as plaster or wood,
drill 7/32 inch holes. Gently tap anchors
(provided) into drilled holes until flush with the
wall.
■■ Reposition mounting plate over holes,
pulling wires through wiring opening. Loosely
insert two mounting screws into holes.
■■ Level for appearance only; thermostat will
function properly even when not level. Tighten
mounting screws.
19
INSTALLATION
