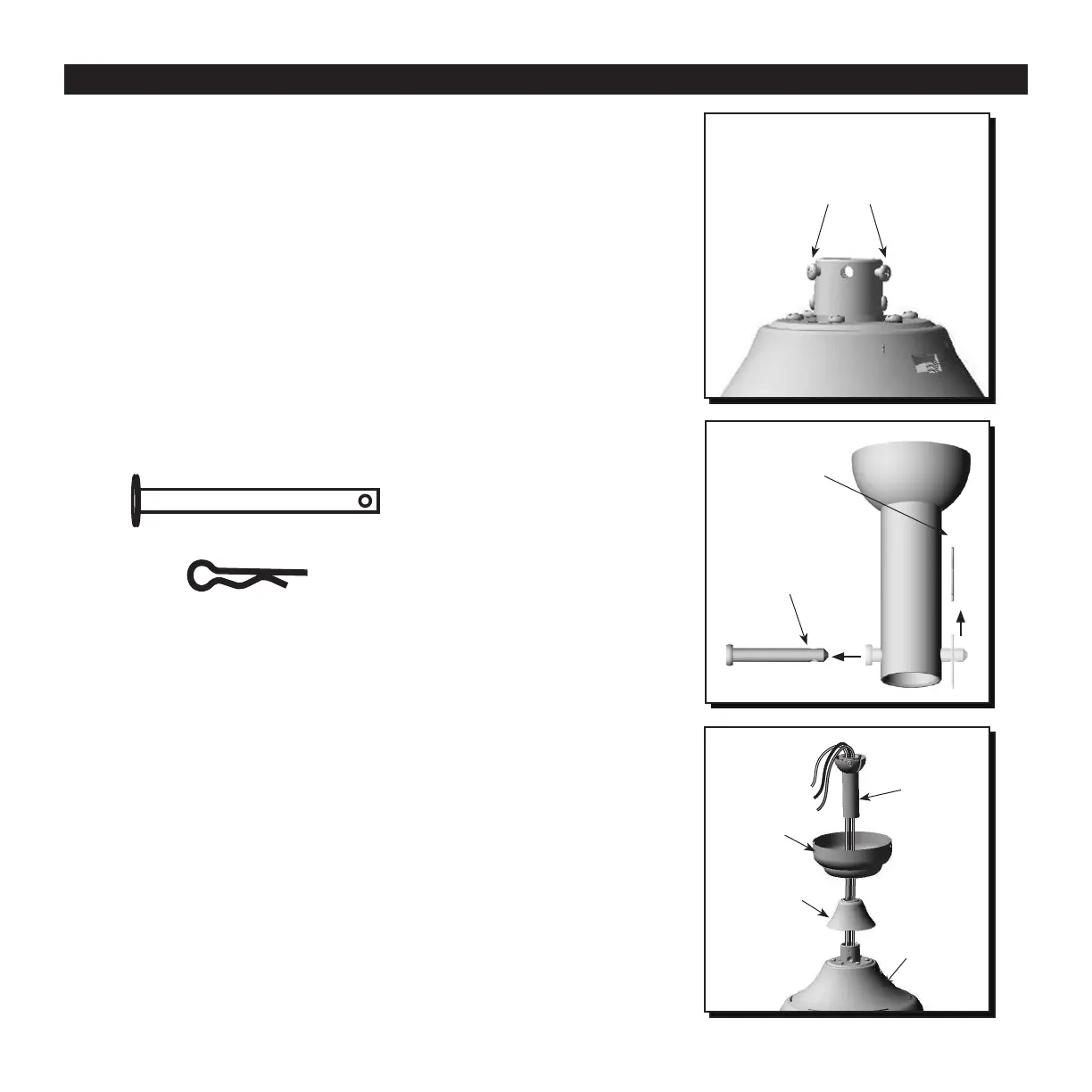

STANDARD OR ANGLE MOUNTING INSTRUCTIONS
7. Remove the downrod pin and downrod clip from
the downrod (Fig. 7).
Downrod
Clip
Downrod
Pin
Fig. 7
Fig. 6
Fig. 8
Downrod
Canopy
Yoke
Cover
Motor
Housing
Downrod Pin
Downrod Clip
8. Thread the wires from the motor housing through
the yoke cover, canopy and out the top of the
downrod (Fig. 8).
6. Partially loosen the two set screws in the yoke at
the top of the motor housing (Fig. 6).
