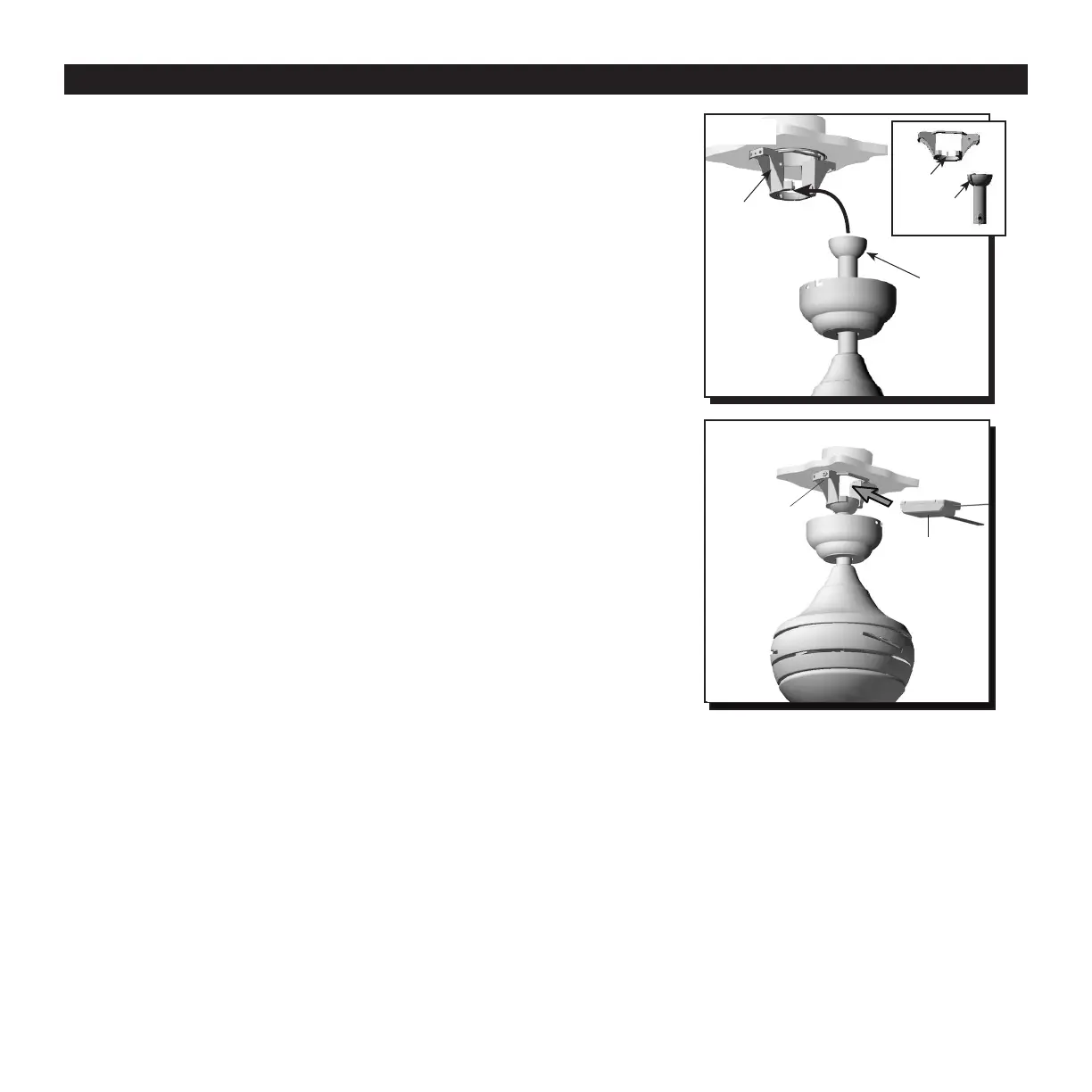

Honeywell RIO - Downrod Ball and Receiver Installation; Downrod Ball into Mounting Bracket; Receiver Placement

Mounting
Bracket
Downrod
Ball
Tab
Slot
Fig. 12
9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
13. Insert the receiver into the mounting bracket with
the at side toward the ceiling (Fig. 13).
Mounting
Bracket
Receiver
Fig. 13
12. Install the downrod ball into the mounting bracket
opening. Align the slot in the ball with the tab in the
mounting bracket. The downrod should not rotate if
installed correctly (Fig. 12).
