1/4
The RPLS730B / RPLS731B programmable wall switch has been designed to control
lightings and motors:
NOTE: This switch cannot be used if there are not at least 2 white wires joined by a
connector inside the electrical box.
1) Cut power at the circuit breaker to avoid electric shock.
2) Remove the existing switch.

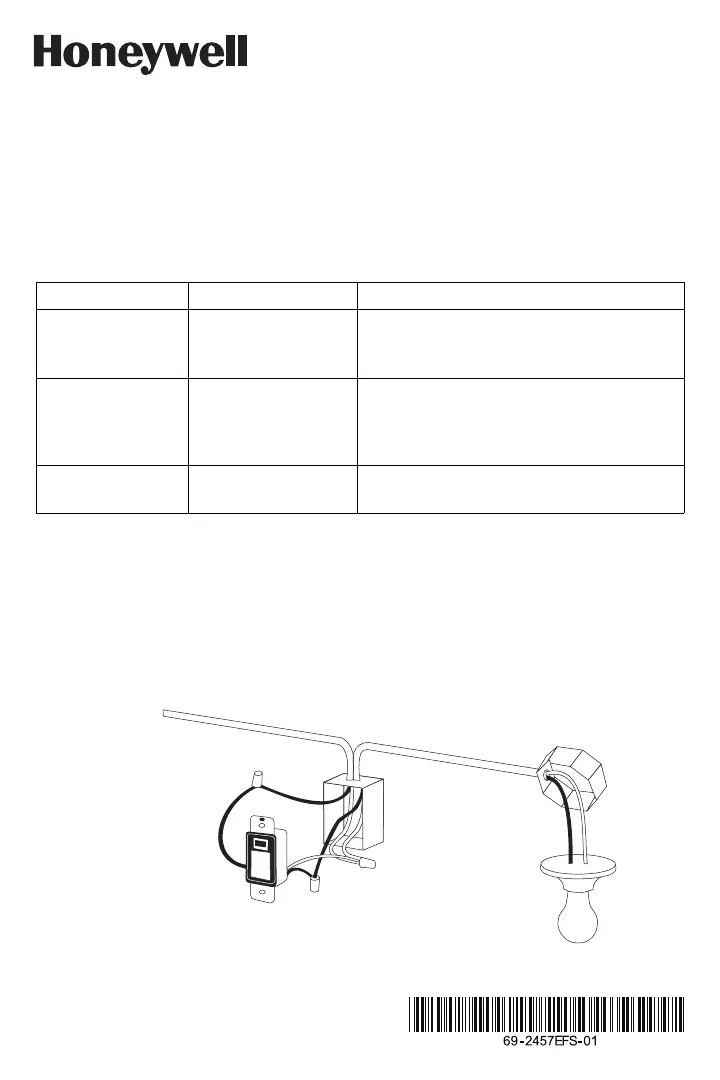

3) Install the new switch as shown in the diagram below.
4) Apply power at the circuit breaker.
Applications
Load type Maximum load Examples
Resistive load
2400 W
(20 A @ 120 V)
• incandescent lights
• halogen lights
• block heater
Inductive load
2400 W
(20 A @ 120 V)
• fluorescent lights
• compact fluorescent lights (CFL)
• sodium lamps
• electronic ballasts
Motor 1 hp
• pool filter pumps
• fans
Installation
120 VAC (line)
white (neutral)
black (line)
blue (load)
Load
RPLS730B / RPLS731B
Installation and User Guide
Programmable Wall Switch
69-2457EFS-01.book Page 1 Monday, January 7, 2013 3:21 PM
