Honeywell RTH111 series - Select Fan Setting

69-2604ES—01 6
M32732

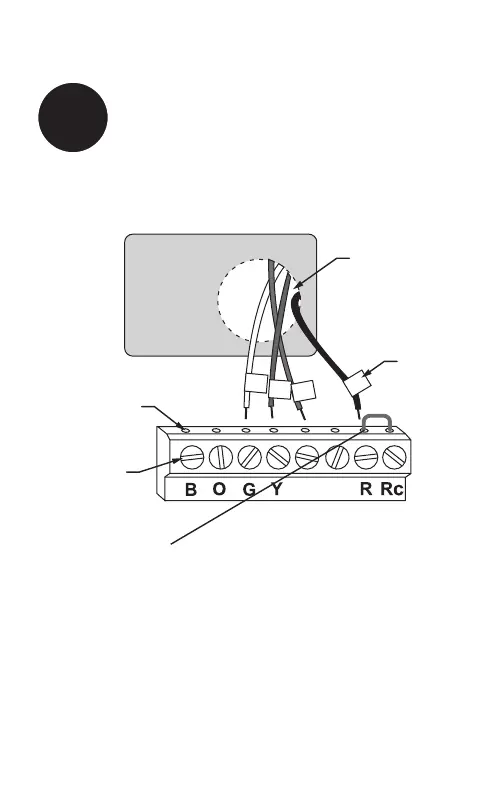

SCREW
INSERT WIRES
AND TIGHTEN
SCREWS
WIRE
HOLE
LABELED
WIRES
W
G
R
Not
Used
W
Y
Connect Wires
6
Simply match wire labels.
Remove metal jumper if you have both R and Rc wires.
Labels don’t match? See page 18.
We are here to help.
Call 1-800-468-1502 for wiring assistance.
