Honeywell RTH221B1021 User Manual

5

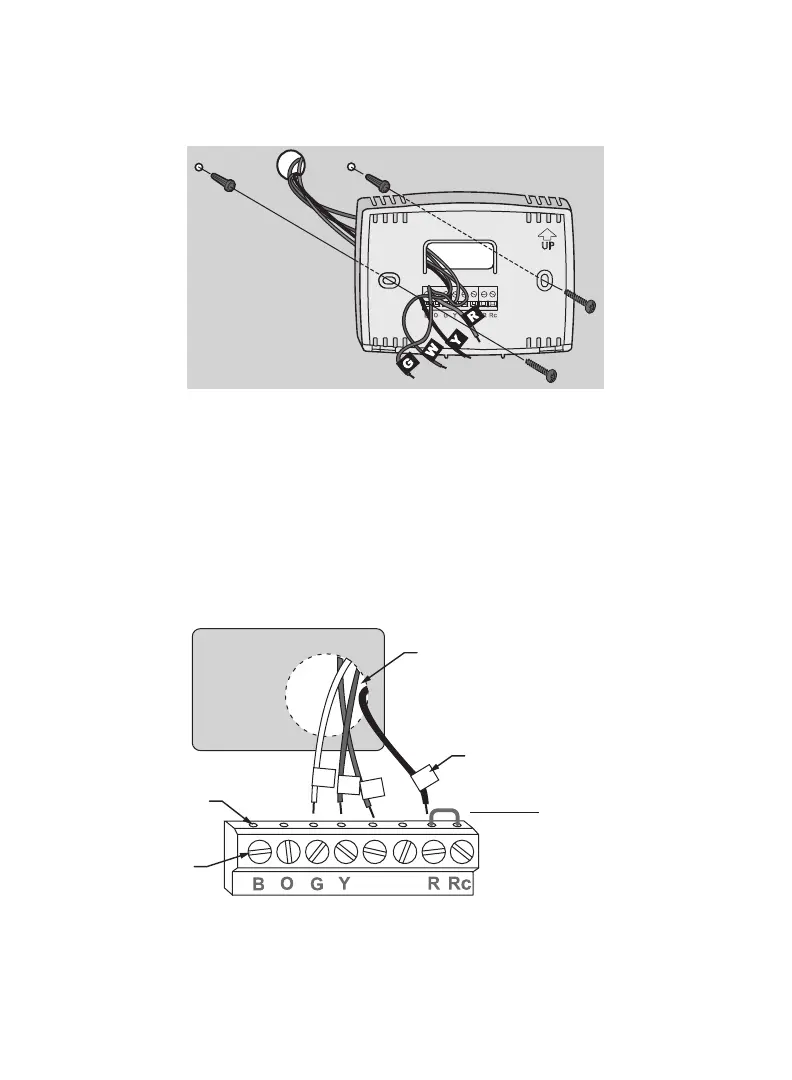

5 Mount Wallplate
Mount the new wallplate using the included screws and anchors.
Drill 3/16-in. holes for drywall
Drill 3/32-in. holes for plaster
6 Connect Wires
Simply match wire labels.
If labels do not match letters on the thermostat, check “Alternate Wiring
(Conventional Systems)” on page 6 and connect to terminal as shown (see
notes, below).
M32715
SCREW
INSERT WIRES
AND TIGHTEN
SCREWS
WIRE
HOLE
LABELED
WIRES
W/
Aux
W
Y
G
R
Not
Used
Remove metal
jumper if you
have both
R and
Rc wires.
We are here to help. Call 1-800-468-1502 for wiring assistance.
W/
Aux
Not
Used
M32714

Honeywell RTH221B1021 Specifications

General

Type	Non-programmable
Display	Digital
Power Source	Battery
Temperature Control Range	40°F to 90°F (4°C to 32°C)
Stages	1 Heat/1 Cool
Voltage	24V
Backlight	No
Compatibility	Single-stage heating and cooling systems
