Advanced Installation Guide
69-2584ES— 01 24
About your new thermostat
SETUPWIRINGASSISTANCETROUBLESHOOTING
Wiring—Heat Pump

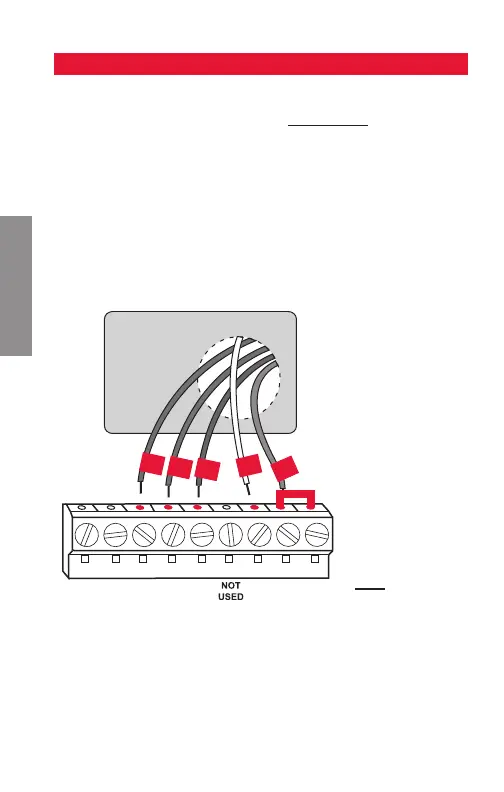

Connect wires: Heat Pump
1. Match each labeled wire with same letter on new
thermostat.
2. Use a screwdriver to loosen screws, insert wires into
hole under screw, then tighten screws until wire is
secure.
3. If E and Aux do not each have a wire connected,
use a small piece of wire to connect them to each
other.
4. Push any excess wire back into the wall opening.
Labels don’t match? See page 26.
Wiring complete, return to Step 7.
HEAT PUMP
MCR31276
AUX
Aux
O/BELG
Y
G
O
YR
R
Rc
To Next Page
