Honeywell Satronic TFI 812 Series User Manual

4
A Honeywell Company
Satronic AG
Honeywell-Platz 1
Postfach 324
CH-8157 Dielsdorf

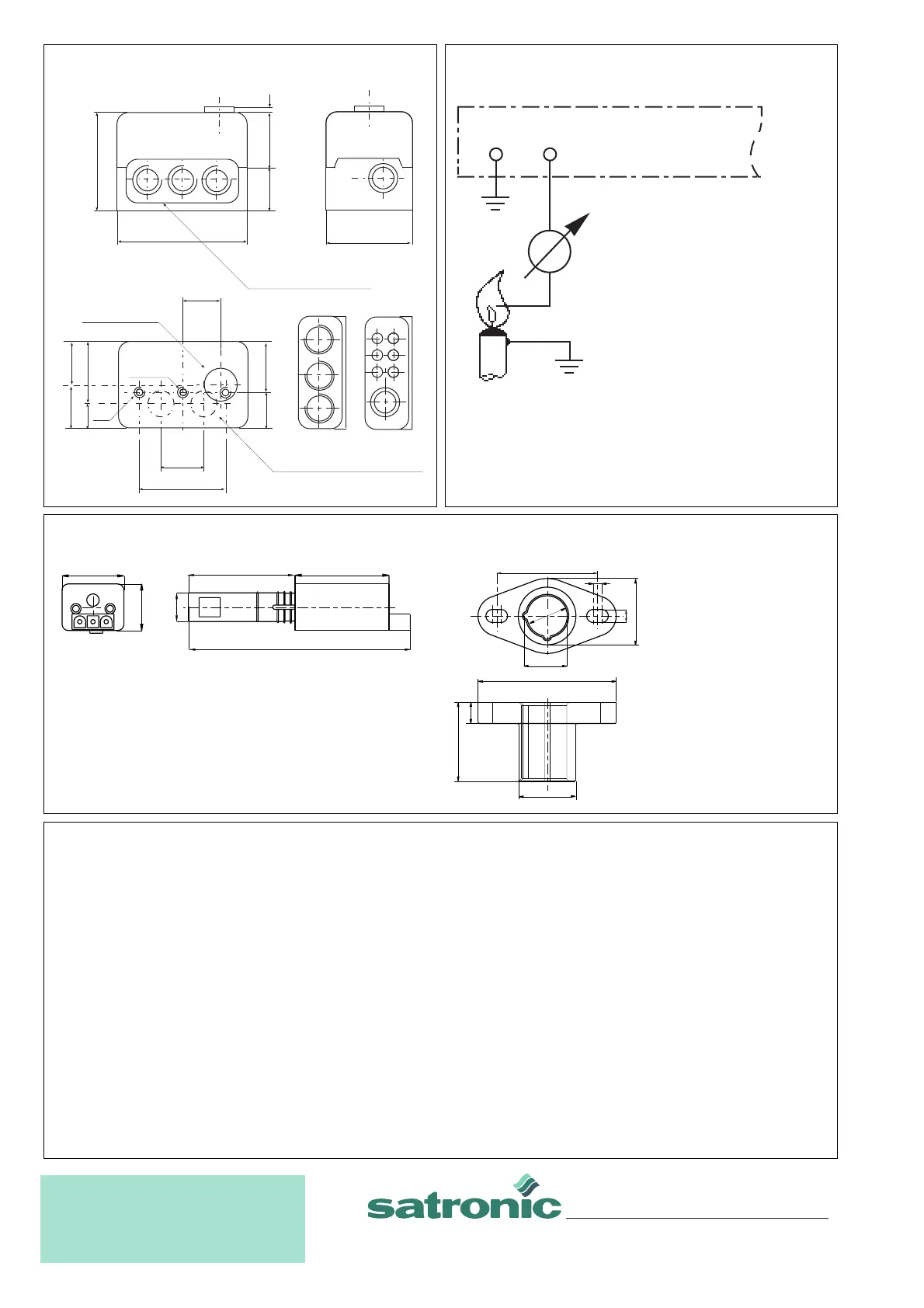

MEASUREMENT OF THE FLAME SIGNAL
DIMENSIONS WITH BASEPLATE TFI 812
TFI 812
IRD 1020.1
1
E
+
-
TFI 812
The signal should
be greater than 5 µA
0 - 10 µA
0 - 100 µA
The Satronic Ionimeter
is ideal for making
this measurement.
35
3
26
4.5
15.1
48
ø20.5
4
17
14
HOLDER M93
104
50
44
29
21.8
ø13.5
ORDERING INFORMATION
ITEM DESIGNATION ITEM NO.
Control box TFI 812.2 mod. 5 02601
Control box TFI 812.2 mod. 10 02602
Control box TFI 812.2 B mod. 5 no longer available
Control box TFI 812.2 B mod. 10 no longer available
Socket Wiring base S98 9-pin 75300
Socket Wiring base S98 12-pin 75310
Insert plate PG plate 70502
optionally Cable entry plate 70503
Flame detector IRD 1020.1 end-on viewing 16532
Flame detector IRD 1020.1 side-on left 16533
Flame detector IRD 1020.1 side-on right 16531
IRD mounting flange IRD Holder M93 59093
Flame detector cable 3-wire, 0.6 m 7236001
The above ordering information refers to the standard version.
Special versions are also included in our product range. Specifications subject to change without notice.
30
86
60
insert plate
24
Reset button
30
57-60
Underside cable
entry ø 16 mm
Earth
M4
30
4416
62,5
38,5
24
4,5
25
35
