T775L SERIES 2000 ELECTRONIC STAND-ALONE STAGING CONTROLLER
62-0257—11 24

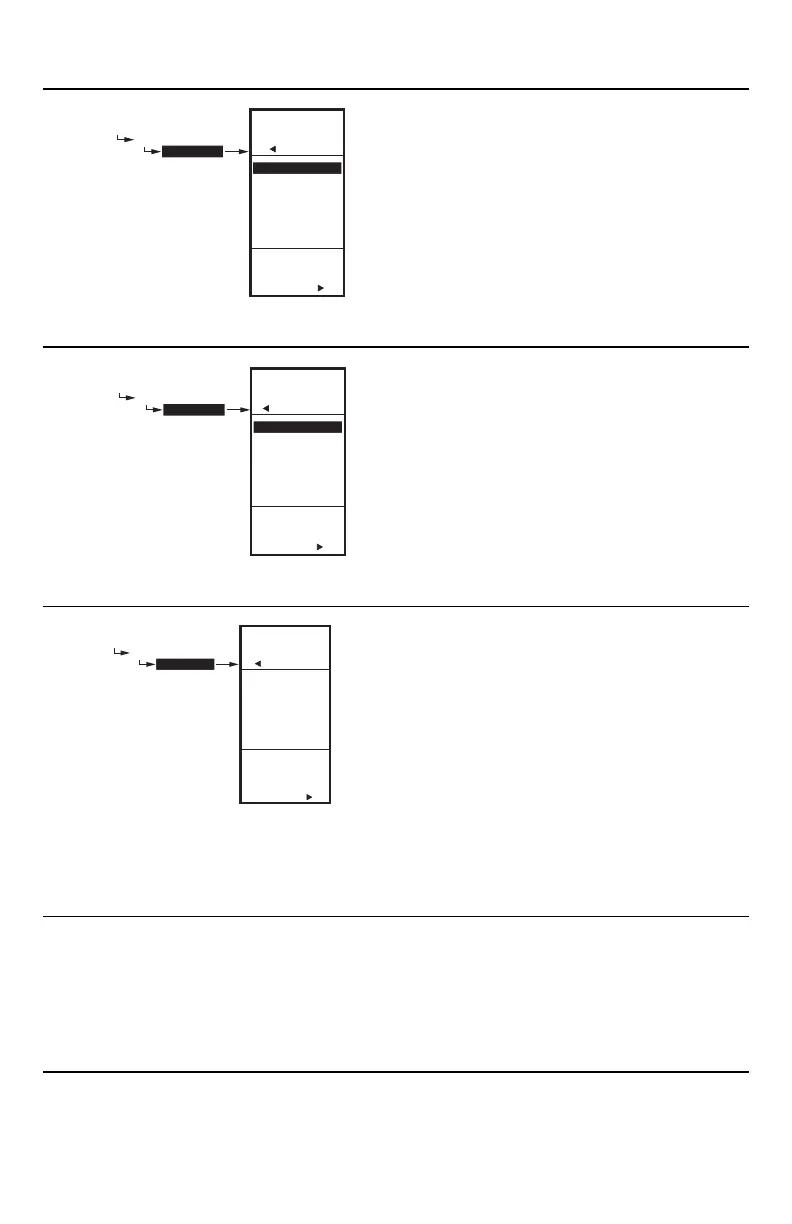

Fig. 56. Program - Sensor.
2.2.3. SENSOR
1. From the menu, use the  and  buttons to high-
light SENSOR.
2. Press the  button to display the sensor selections.
3. Use the  and  buttons to select Sensor A or B.
4. Press the  button to accept the highlighted sensor
and display the next option.
Fig. 57. Program - Heat/Cool.
2.2.4. HEAT/COOL
1. From the menu, use the  and  buttons to high-
light HEAT/COOL.
Default: HEAT
2. Press the  button to display the heat and cool
selections.
3. Use the  and  buttons to select Heat or Cool.
4. Press the  button to accept the highlighted selec-
tion and display the next option.
Fig. 58. Program - Setback.
2.2.5. SETBACK
The Setback temperature option displays only if
scheduling is enabled (see Fig. 31 on page 15) or the DI
Option is set to Setback. (see Fig. 33 on page 16).
This is the desired setpoint temperature that you want to
use during setback mode for this output. For example, if
your setpoint is 70°F and you want the temperature to
drop 10°F during setback mode, enter 60°F as the set-
point for this output.
1. From the menu, use the  and  buttons to high-
light SETBACK.
2. Use the  and  buttons to increase/decrease the
desired setpoint temperature.
Default: 60°F (16°C)
Range: -40°F to 248°F (-40°C to 120°C)
3. Press the  button to accept the value and display
the menu.
2.3. Program Next Output (Loop or Relay)
For the next output (loop or relay), select the desired loop
or relay from the Program menu (see Fig. 52 on page 22).
Go to “2.2.1. SETPOINT” on page 23 to continue
programming.
When you finish programming the outputs, continue with
“2.4. Exit Programming without Reset”.
2.4. Exit Programming without Reset
Press the HOME button to leave programming mode and
return to the home screen.
MENU
PROGRAM
LOOP 1
SENSOR
SELECT
SENSOR
FOR
LOOP 1
SENSOR A
SENSOR B
PROGRAM
LOOP 1
SENSOR
M24424
PROGRAM
LOOP 1
HEAT/COOL
MENU
PROGRAM
LOOP 1
HEAT/COOL
SELECT
HEAT/COOL
FOR
LOOP 1
HEAT
COOL
M24425
PROGRAM
LOOP 1
SETBACK
MENU
PROGRAM
LOOP 1
SETBACK
60
ENTER
SETBACK
SETPOINT
FOR
LOOP 1
F
o
M24426
