Honeywell T87F Installation Instructions

T87F ZONE THERMOSTAT AND 137421N,P WALLPLATES; T87F ZONE THERMOSTAT AND Q539A,B SUBBASES
3 69-0579-4

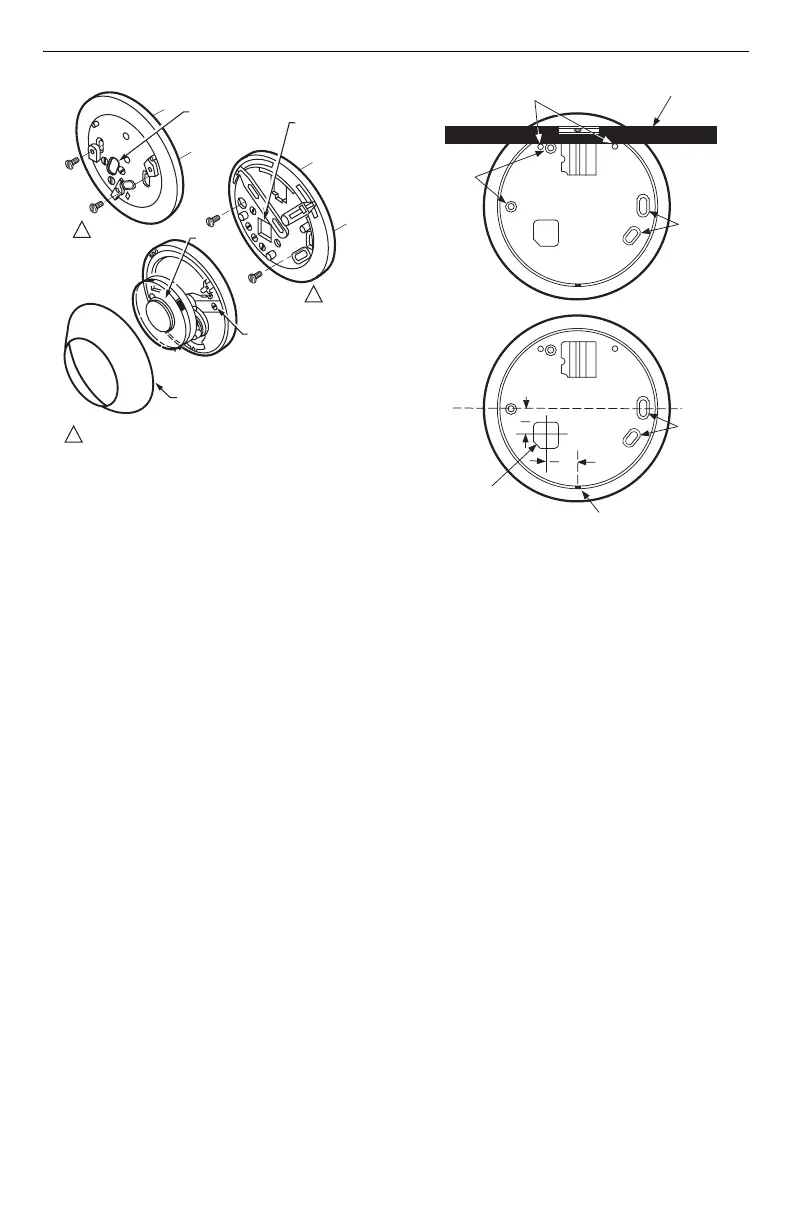

Fig. 3. Mounting T87F Thermostat and 137421
Wallplate or Q539 Subbase.
IMPORTANT
An incorrectly leveled thermostat causes the
temperature control to deviate from setpoint.
7. Level the thermostat wallplate or subbase exactly
using a spirit level as shown in Fig. 4.
IMPORTANT
Do not overtighten thermostat captive mounting
screws because damage to subbase threads
can result.
8. Tighten mounting screws.
T87 Thermostat
1. Before mounting the thermostat, see Heat Antici-
pator Adjustment in Settings and Adjustments sec-
tion.
2. Align the thermostat over the wallplate or subbase
and tighten the three mounting screws.
Fig. 4. Leveling wallplate or subbase before
mounting T87F.
Settings and Adjustments
Temperature Selection
To select the desired temperature for each zone, turn the
transparent dial on the zone thermostat until the desired
point on the setting scale (top scale) is aligned with the
pointer.
System and Fan Switching
Q539A
The Q539A provides System and Fan switches to control
heating-cooling equipment and zone one fan in multi-
zone applications:
• The System switch controls the system operation:
— Heat: Only the heating system operates.
— Off: Both heating and cooling control systems are
disconnected.
— Cool: Only the cooling system operates.
• The Fan switch controls the fan operation:
— Auto: The fan operates in response to the plenum
fan control in heating; the fan operates in
response to the thermostat in cooling.
— On: The fan runs continuously.
• To change positions, use thumb and index fingers to
move the switch lever to the desired position. Place
the switch lever directly over the selected function
indicator mark.
M19048
137421
WALLPLATE
THERMOSTAT
COVER RING
THERMOSTAT
CABLE
ENTRANCE
HOLE
USE 137421 WALLPLATE FOR HEAT ONLY APPLICATIONS.
SEE TABLE 1 APPLICATION INFORMATION.
Q539
SUBBASE
CAPTIVE
MOUNTING
SCREWS (3)
T87F
THERMOSTAT
CABLE
ENTRANCE
HOLE
1
1
1
MOUNTING
HOLES
MOLDED POST
OPENING
FOR
THERMOSTAT
WIRING
SPIRIT
LEVEL
MOUNTING
SLOTS
HORIZONTAL
CENTER
LINE
VERTICAL GUIDE
[13]
[14]
1
2
9
16
M1371B
MOUNTING
SLOTS

Honeywell T87F Specifications

General

Temperature Range	40°F to 90°F (4°C to 32°C)
Voltage	24V AC
Application	Residential
Mounting	Wall mount
Switching Action	SPST
Power Source	Hardwired
Display	Analog
Color	White
Control Type	Mechanical
Compatibility	Heating systems
Accuracy	±2°F
Weight	0.5 lb
