6.Time between two start-ups is too short
If time between two start-ups is too short, a fault lock-out occurs. The
LED display blinks and indicates 7.
7.Remote reset is too persistent
If the application of a remote reset signal to TBC2800
is continuous(> T7), the fault lock-out occurs. The LED display blinks
and indicates 6. TBC2800 keeps on operating and LED blinks until the
remote reset signal disappears.
8.Remote resets is too often
If the remote reset is too often, the fault lock-out occurs. The LED display
blinks and indicates 5 .The fault can only be cleaned by manual reset.
9.Fault lock-out information summary

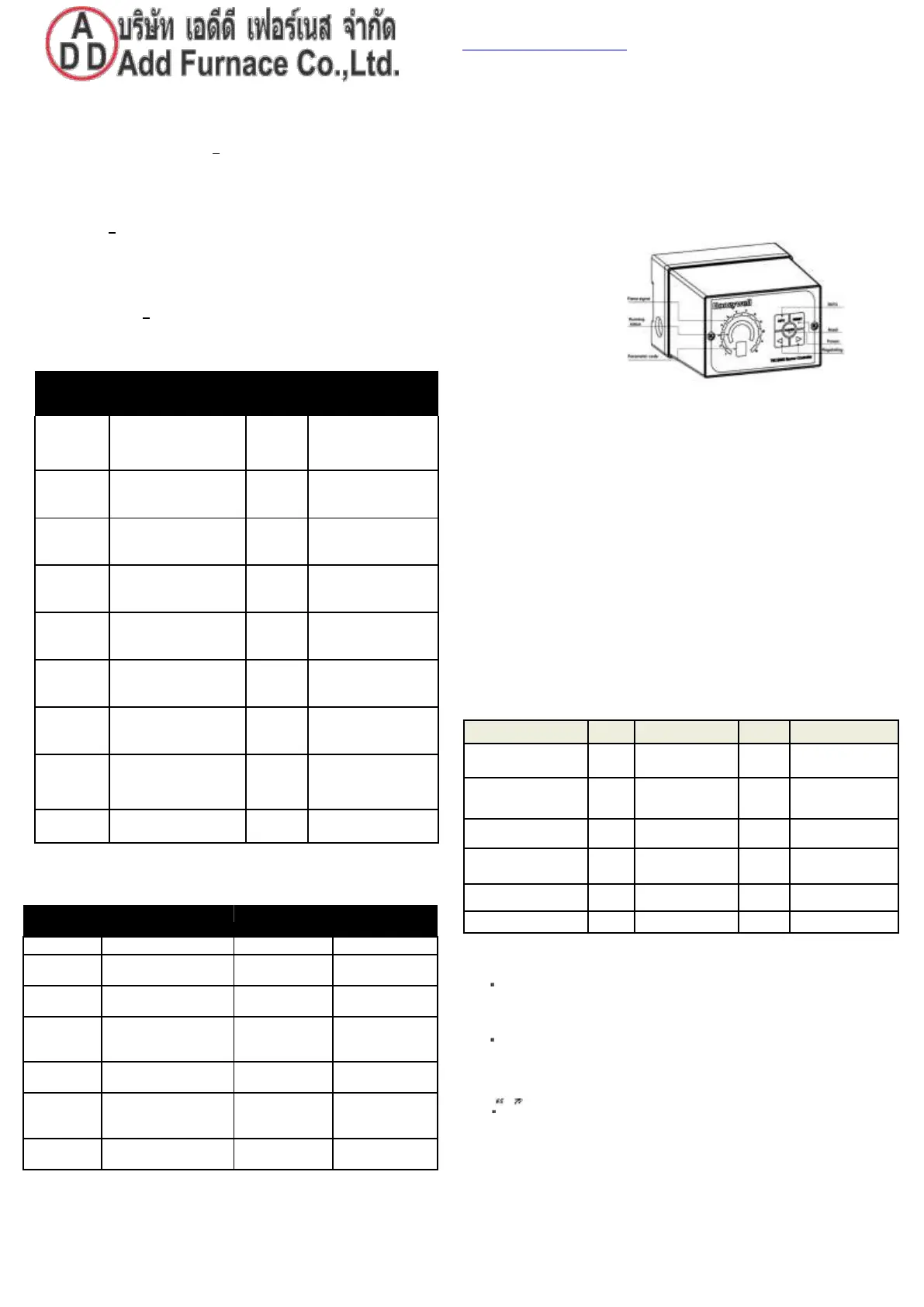

Table 1: Fault lock-out information
10.Time definition
Table 2: Time definition
*Note: If T3=2s, follow EN746-2.
11.Running state information summary
1> Sleep, code: " - " 2> Stand by, code: "0" 3>
Flame simulation( T1) ,code: " 1 "
4> Ignition process( T2) code: " 2 " 5>
Working process, code: " 3 "
6> Fault lock code: refer to Table 1 Fault lock information
12.Button operation
1.
Press the INFO
button for 2s, then the parameter code will be displayed. Choose
the code by pressing < or > button, the LED lights will indicate the
current parameter value.
2
. Press < and > button at the same time for 2s, one dot will light in the
right corner. The setting value will blink, then parameters can be checked
or adjusted.
3
. Check or adjust the setting value by pressing < or > button.
4
. After checking or setting, press < and > button for 2s for sav- ing
and quit.
5
Press INFO for 2s for quit, TBC2800 will restart automatically and
the setting parameter will come into effect.
NOTE
The parameters can only be set in standby state; If TBC2800 is in
running state or fault lock-out, parameters can only be checked.
During the parameters setting, if there has no button-pressing in 30s,
TBC2800 will exit setting automatically, return to the original state and
close all values in this unfinished setting.
Please refer to Table 3 for parameter and the related value.
13.LED
1
LED bars
A. Indicate the flame intensity data;
B. Indicate the parameter value when in setting process;
2
LED Loop
A. Light is off in startup or parameter setting.
B. Light is green in the normal status.
C. Light is red in the fault status.
3
8 digital tube
A Indicate the operation code (light); B
Indicate the parameter code;
