Honeywell TH5110D User Manual

TH5110D NON-PROGRAMMABLE THERMOSTAT
69-1712—1 6
POWER THE THERMOSTAT
You can choose from three methods to power the
thermostat:
• Batteries only (AAA alkaline).
• 24 Vac common wire only.
• 24 Vac common wire with battery backup (AAA
alkaline).
NOTE: Battery backup prevents blank displays during
power interruptions.
Wiring 24 Vac Common
• Single-Transformer System—Connect the common
side of the transformer to the C screw terminal of the
thermostat wallplate. Leave the metal jumper in place
between Rc and R.
• Two-Transformer System—Connect the common side
of the cooling transformer to the C screw terminal of
the thermostat wallplate. Remove the metal jumper
between Rc and R.
Installing Batteries
Install two AAA alkaline batteries on the back of the
thermostat as marked on the battery holder. See Fig. 14.
NOTE: After the thermostat is mounted on the
wallplate, the thermostat does not require
removal from the wallplate to replace the
batteries. Refer to the enclosed Operating
Instructions, 69-1713, for more information on
the removable battery holder.

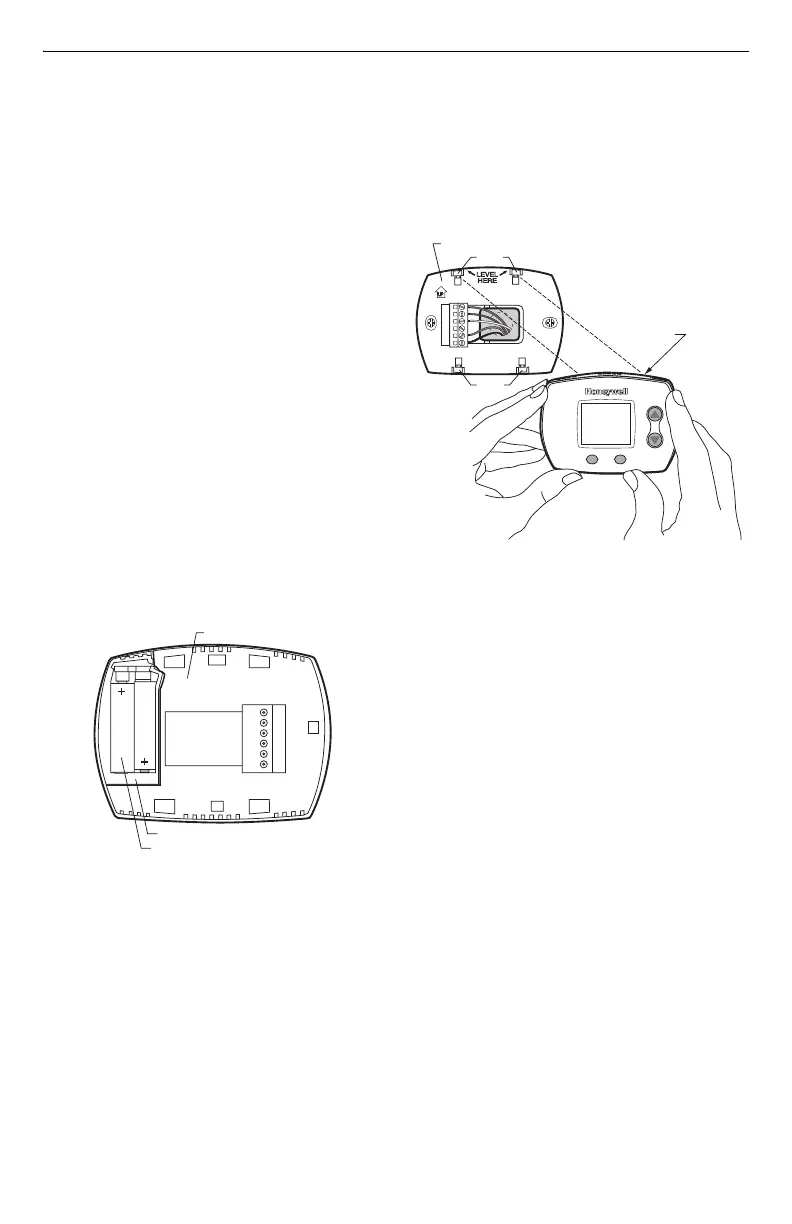

Fig. 14. Installing batteries.
Mount Thermostat to Wallplate
1. Align the four tabs on the wallplate with the four
slots on the back of the thermostat. Push the
thermostat straight onto the wallplate until it snaps
into place. See Fig 15.
Fig. 15. Mount thermostat to wallplate.
BACK OF THERMOSTAT
M22056
BATTERY HOLDER
BATTERIES
TABS
TABS
WALLPLATE
G
Y
R
Rc
M22078
W(O/B)
C
SLOTS ON
BACK OF
THERMOSTAT

Honeywell TH5110D Specifications

General

Model	TH5110D
Display	Digital
Programmable	Non-programmable
Stages	1 Heat/1 Cool
Backlight	Yes
Temperature Range	40°F to 90°F (4°C to 32°C)
Voltage	20-30 VAC
Battery	2 x AA
Power Source	Battery or Hardwired
