V4044C, V4044F
Honeywell • All rights reserved 3 EN0H-0325GE25 R0906
Dimensions

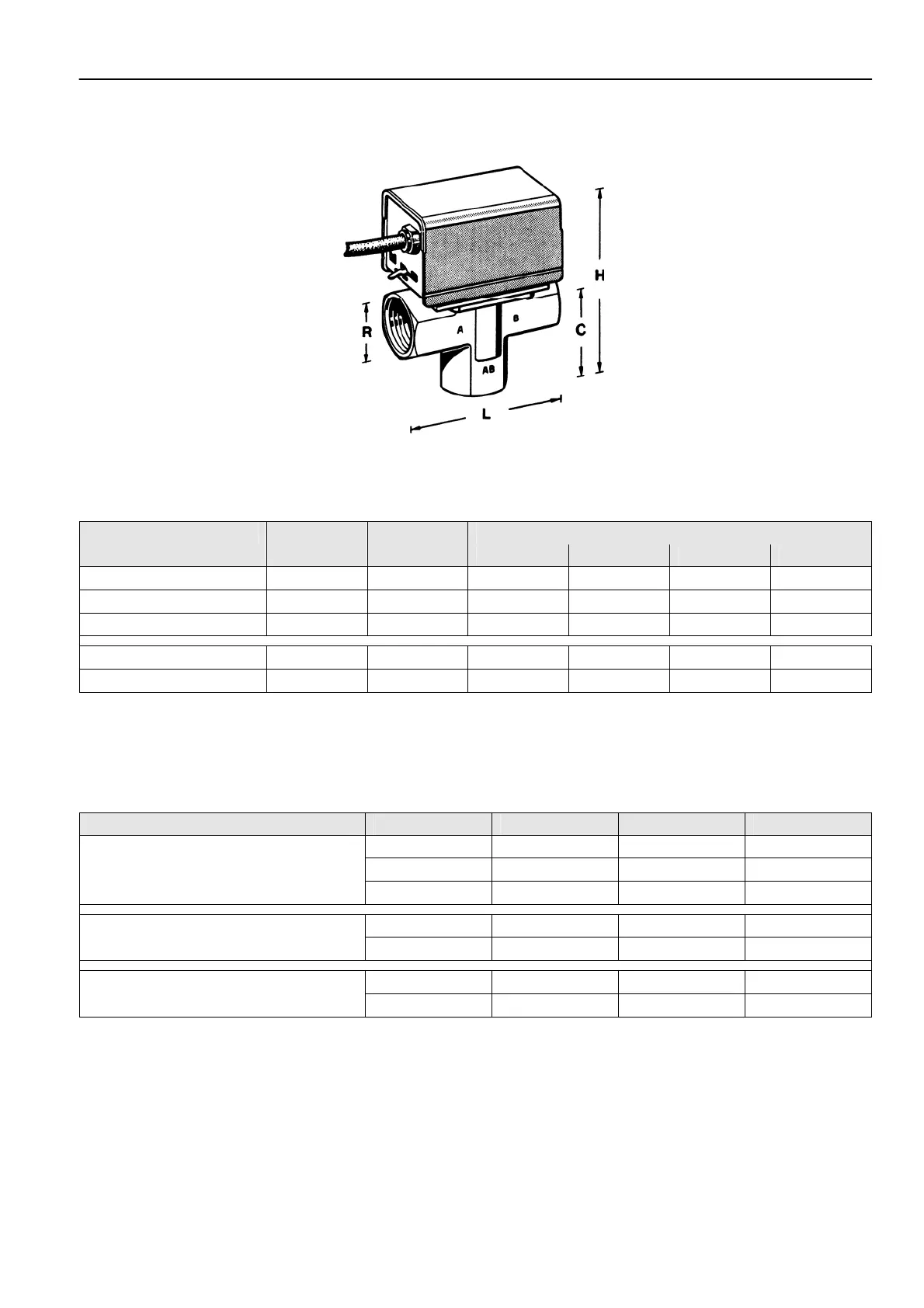

Fig. 6. V4044C, V4044F 3-way zone valve
Table 2. Main dimensions and other values
Dimensions Body kvs-value max. close-
off pressure
R L C H
1/2” BSPP (internal) 3.0 1.4 bar 1/2” 96 46 128
3/4” BSPP (internal) 6.0 0.7 bar 3/4” 96 46 128
1” BSPP (internal) 8.1 0.55 bar 1” 96 46 128
3/4” BSPP (internal) 6.0 0.7 bar 3/4” 96 46 128
1” BSPP (internal) 8.1 0.55 bar 1” 96 46 128
NOTE: All dimensions in mm if not otherwise stated
Ordering Information
Table 3. Order information and OS-Nos. (OS=Ordering System)
Order text Size End switch Packing unit OS-No.
1/2” — 1 pc V4044C1452
3/4” — 1 pc V4044C1460
V4044C motorized zone valve
1” — 1 pc V4044C1478
3/4” SPST 1 pc V4044F1000
V4044F motorized zone valve with end
switch
1” SPDT 1 pc V4044F1034
3/4” SPST 10 pcs V4044F1000B
V4044F motorized zone valve with end
switch – bulk pack of 10
1” SPDT 10 pcs V4044F1034B
NOTE: Valves in bulk packs are not packed individually. Only one installation and operating instruction is supplied with the
bulk pack.
