Honeywell V4055A User Manual

3 60-2307—10
V5055A-E
SPECIFICATIONS
UPSTREAM TAPPING AND PLUG: 1 /4 in. NPT or BSP-
PL is standard.
DOWNSTREAM TAPPING AND PLUG:
1/4 in. NPT on most domestic models.
1/8 in. NPT on V5055C1182.
AMBIENT OPERATING TEMPERATURE RATING:
-40°F to 150°F (-40°C to 66°C); -40°F to 125°F
(-40°C to 52°C) when used with V9055.
MATERIAL: Die-cast aluminum.
MOUNTING: Mounts directly in the gas supply line.
DIMENSIONS: See Fig. 2 and 3.
WEIGHT:
3/4, 1, 1-1/4, 1-1/2, in. valve: 4 lb. (1.8 kg).
2 in. valve: 8 lb. (3.6 kg).
2-1/2, 3 in. valve: 11 lb. (5.0 kg).
4 in. valve: 28 lb. (12.7 kg).
I.A.S.
a
Rated Capacity
Valve Size (in.) cf/h cu m/hr
3/4 665 18.8
1 960 27.2
1-1/4 1406 39.8
1-1/2 1717 48.6
2 3620 102.5
2-1/2 4250 120.3
3 5230 148.1
4 (V5055A) 10200 288.8
4 (V5055B,C) 9180 259.9
a
A joint venture of CGA Approvals Inc. and AGA Labora-
tories.

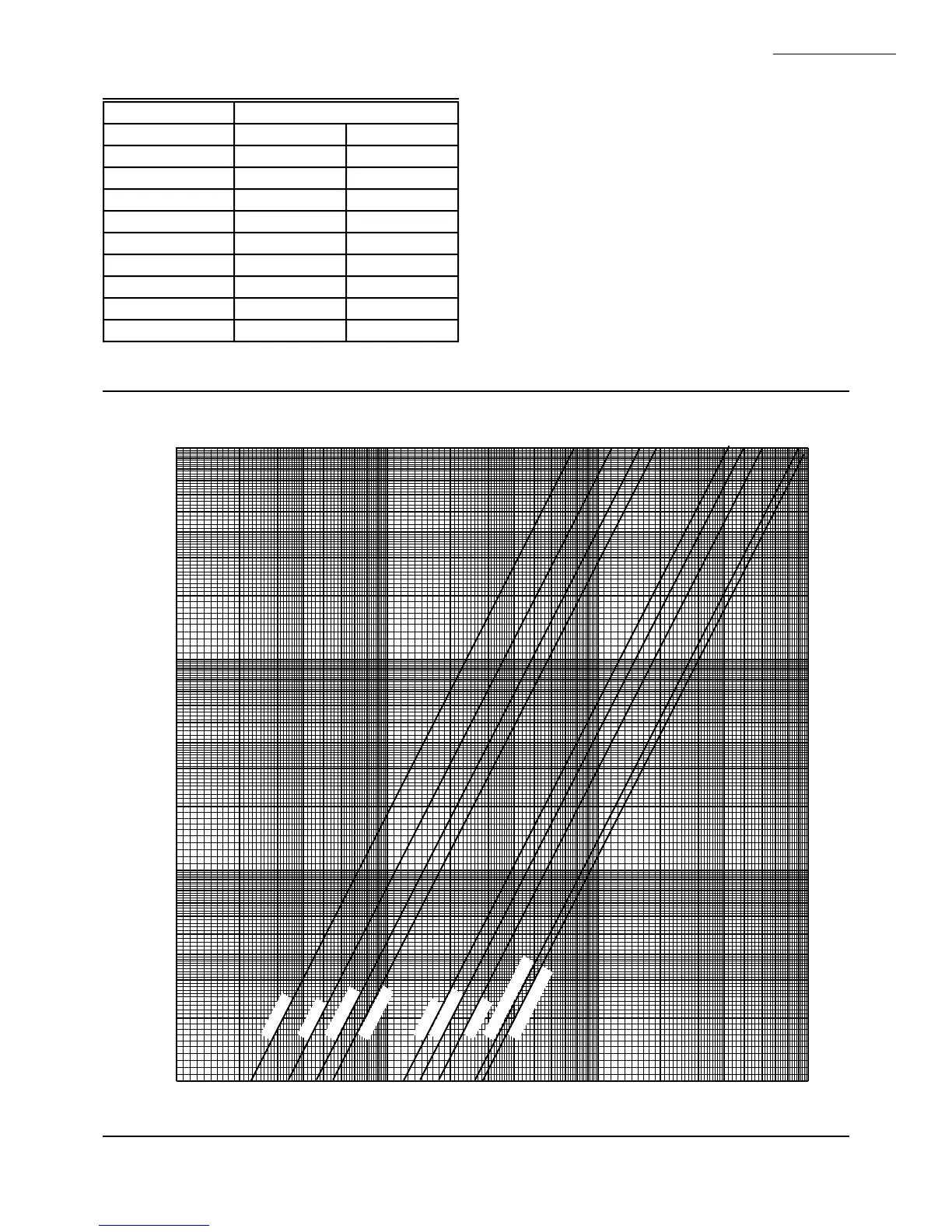

Fig. 1—Flow curves for V5055 Valves.
M9542
100
(2.8)
1
1 2 34567891 2 34567891 2 34567891
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
11.0
(0.25)
10.0
(2.5)
100.0
(25)
.9
.8
.7
.6
.5
.4
.3
.2
.1
100.0
9
8
7
6
5
4
3
2
1.0
9
8
7
6
5
4
3
2
1.0
.9
.8
.7
.6
.5
.4
.3
.2
.1
1000
(28)
10,000
(283)
100,000
(2830)
CAPACITY, IN CUBIC FEET PER HOUR (cf/h) FOR GAS WITH SPECIFIC GRAVITY OF 0.64 [1 cf/h = 0.0283 cu m/hr]
PRESSURE DROP, INCHES WC 
[1 in. wc = 0.25 kPa]
3/4 INCH 1 INCH
1 INCH
1 1/4 INCH 1 1/2 INCH 2 INCH 2 1/2 INCH 3 INCH 4 INCH V5055B, C 4 INCH V5055A
