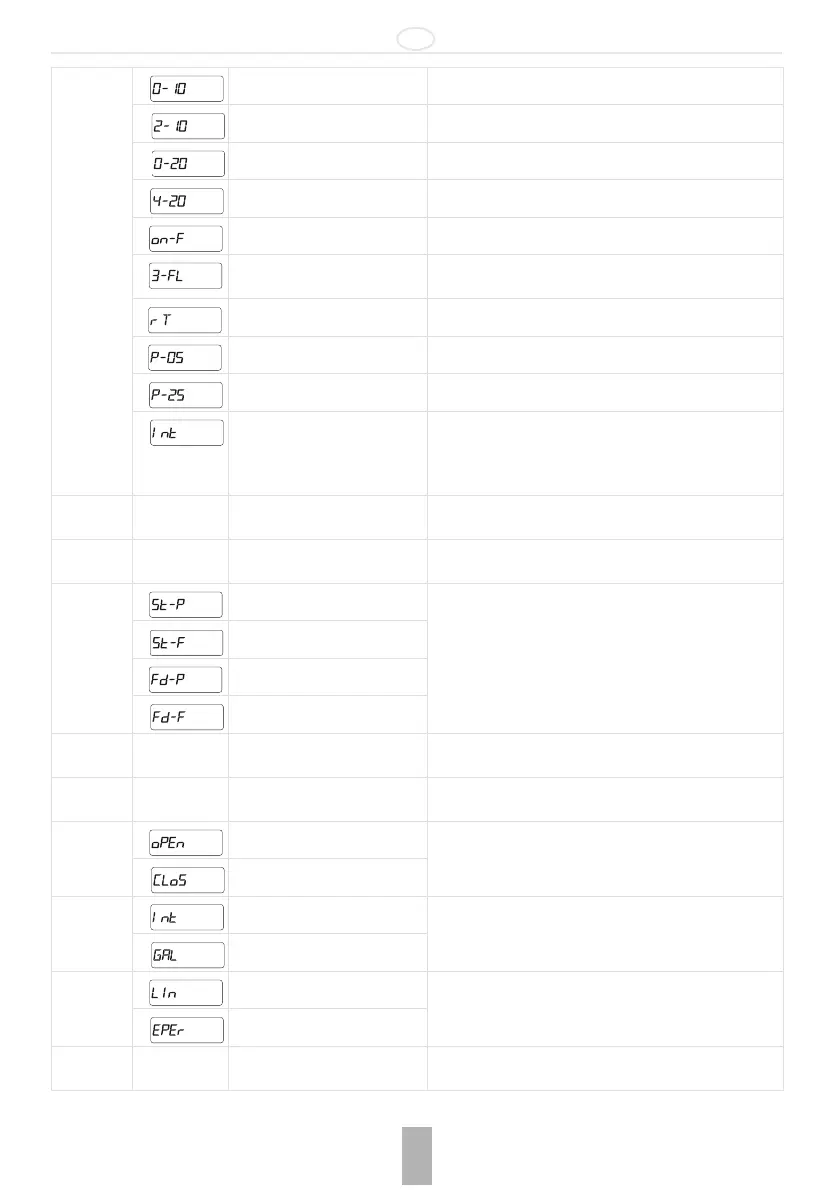

SET2 Voltage control signal Control with voltage signal
Voltage control signal Control with voltage signal
Current control signal Control with current signal
Current control signal Control with current signal
On/Off 24V: open. 0V: close
3 Point Floating Input 24 V open if white wire connected (3) 24 V close if green wire
connected (4)
Remote control Not available
PWM 5 Sec PWM (0.1 ~ 5 Sec)
PWM 25 Sec PWM (0.1 ~ 25 Sec)
Internal input Flow rate set by on board display and buttons.
Push MODE, wait until "Set" is replaced by flow rate
indication (or flow rate %, depending on SET 1), set the flow
rate with UP/DOWN buttons and confirm with MODE.
SET3 Flow rate on
display
Min. flow rate selection (default:
0)
Set flow values with up/ down buttons and then press
“MODE” to confirm
SET4 Flow rate on
display
Max. flow rate selection (default:
depending on model)
Set flow values with up/ down buttons and then press
“MODE” to confirm
SET5 Set flow rate in % Select with up/down buttons and then press “MODE“ to
confirm
Display option during operation: St allows to see the flow rate
value required by the controller; Fd allows to see the current
flow rate value given by the valve (the progressive change of
flow rate values is displayed during valve stem motion)
Set flow rate in "flow rate"
Current flow rate in %
Current flow rate in "flow rate"
SET6* Value on
display
Compensating the max. pulse Select with up/down buttons and then press “MODE“ to
confirm
SET7 Value on
display
% flow rate offset (default: 0) Select with up/down buttons and then press “MODE“ to
confirm
SET8 Valve open at power failure Selection Fail-CLOSE or Fail-OPEN option. Additional
battery needed. Available with VA5004TF0001
Valve close at power failure
SET9 Unit of SI (m
3
/h) Select with up/down buttons and then press “MODE“ to
confirm
Unit of GPM (gal/min)
SET10 Linear control curve Select with up/down buttons and then press “MODE“ to
confirm
Equal percentage control curve
SET11* Value on
display
Min. voltage control signal Selection min voltage control value with UP/DOWN buttons
and confirmation with MODE button
