Y8150 FRESH AIR VENTILATION SYSTEM, W8150 FRESH AIR VENTILATION CONTROL
68-0282—07 2
SPECIFICATIONS
Y8150 includes:
W8150A Fresh Air Ventilation Control.
EARD6 Fresh Air Damper.
AT120B Transformer.
Mounting hardware for control.
Homeowner information label.
W8150 includes:
W8150 Fresh Air Ventilation Control.
Mounting hardware for control.
Homeowner information label.
Control (W8150A):
Power Supply: 20-30 Vac, 60 Hz.
Power Consumption: 3.5 VA at 24 Vac.
Thermostat Fan Load: 10 mA resistive at 24 Vac.
Thermostat Heat Load: 10 mA resistive at 24 Vac.
Remote Terminals: 10 mA resistive at 24 Vac.
Relay Contacts:
Fan: 1.5A full load, 7.5A locked rotor at 24 Vac.
Damper: 0.6A inductive, 3.1A locked rotor at 24 Vac.
Auxiliary: 0.5A inductive, 2.5A locked rotor at 24 Vac.
Damper (EARD6): 24 Vac, 12 VA, 60 Hz.
Operation: Power-open, spring-closed.
Diameter: 6 in.
Transformer (AT120):
Input: 120 Vac.
Output: 27 Vac open circuit, 24 Vac full load at 20 VA.
Mounting: Foot mounted.
Temperature: -20 °F to 160 °F (-29 °C to 71 °C).
Humidity: 5 to 90% RH, noncondensing.
Input Setting Ranges:
Bedrooms: 2-5.
Area: 1000-4600 sq ft.
Vent Airflow: 40-160 cfm.
Composite Setting Resolution: +/- 12% of ASHRAE
62.2-2010, recommended ventilation for single-system setup.
AT120B Approvals: UL Component Recognized: Class 2,
File No. 14881.
Location: Device can be installed in unconditioned space.
Multiple devices can be installed when operating multiple
HVAC systems.

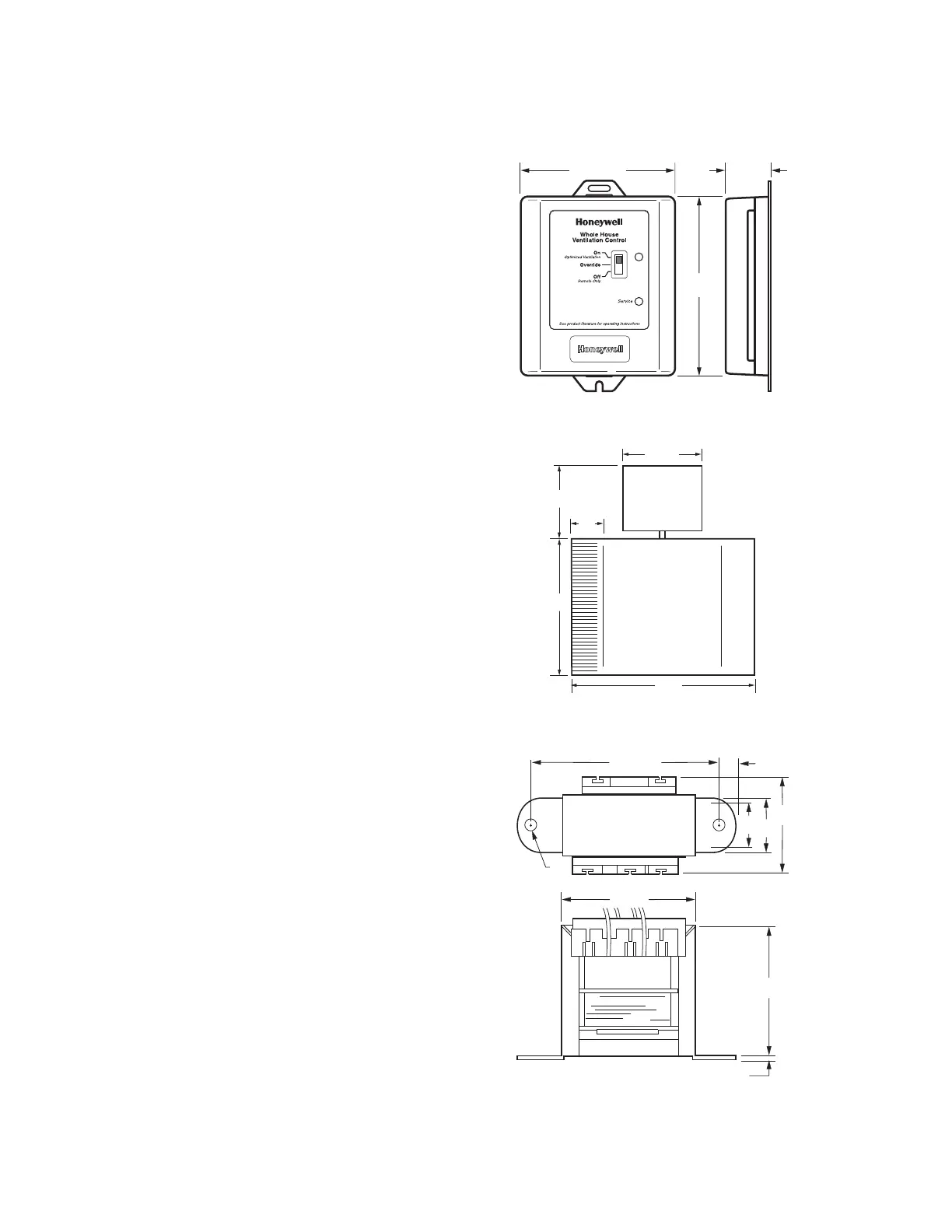

Dimensions: See device dimension diagrams.
W8150A Ventilation Control dimensions in in. (mm).
EARD6 Fresh Air Damper dimensions in in. (mm).
AT120B Transformer dimensions in in. (mm).
M19988A
4-3/16 (106)
5-3/4
(146)
1-1/4
(32)
3-1/2 (89)
3-3/8
(86)
1-1/2
(38)
6
(152)
8 (203)
M19989
3/16
(5)
M22022
2-13/16 (71)
1-7/8 (48)
1
(25)
3/16
(5)
15/16
(24)
1-3/4
(44)
1-5/8
(41)
1/16 (2)
