24
Insert cable into monitor input terminal (8P) and fasten screws.
1. Insert cable into monitor input terminal of the X-DCS3000.
1. Install end-of-line supervision modules in cables. When there are many modules at one line,
connect them one by one and combine with loudspeaker end-of-line respectively.
1. Use screws to secure modules on wall.

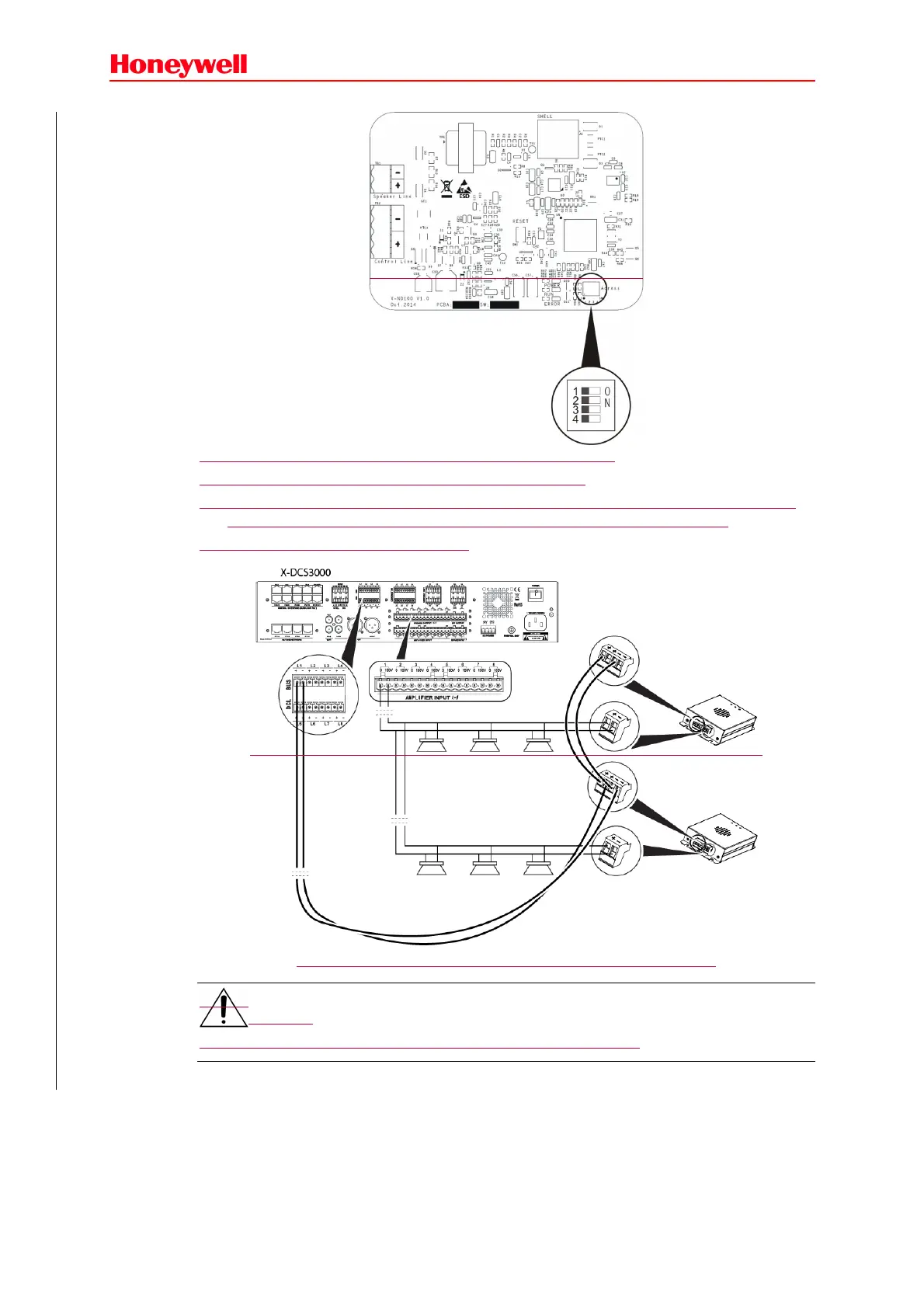

Schematic Diagram of the X-DCS3000 Connection to the X-EOL
Caution!
Each DLC bus on the X-DCS3000 cannot exceed more than 5 devices.
Connecting the Loudspeakers
The DCS can be directly connected to loudspeakers. The following steps describe this process:
