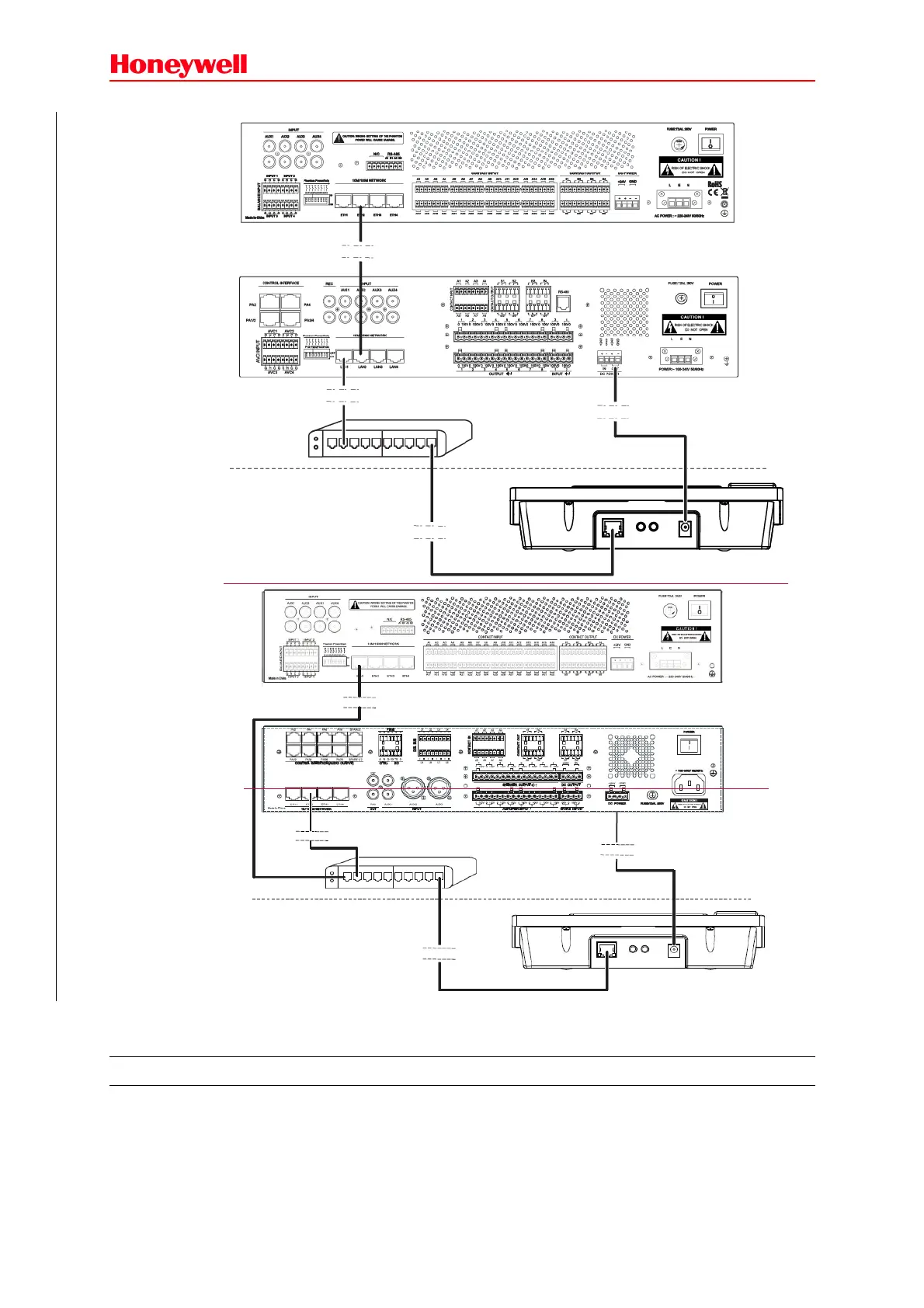

Figure 23 Schematic Diagram of Connecting the DCS and the NRI to the NPM through a
Network Switch
Connecting the Power Supply Cables
The power supply cables for the main X-618 system components include the following items:
• DCS or NRI Main and Standby Power Supply Cables
• DA Main and Standby Power Supply Cables
