Honeywell X Series Installation Instruction Sheet

43-TV-33-76 iss.2 GLO Jan 21 UK 10
There are 2 backlights on the QX recorder display. These should be changed as a pair. To get the backlights out use a
small screwdriver to push back the clip as shown in Fig 16 and gently pull on the leads to withdraw the backlight from
the display. Remove both tubes, noting their orientation. Fig 17.
Insert the new backlights and push into the display until the clips latch them in.

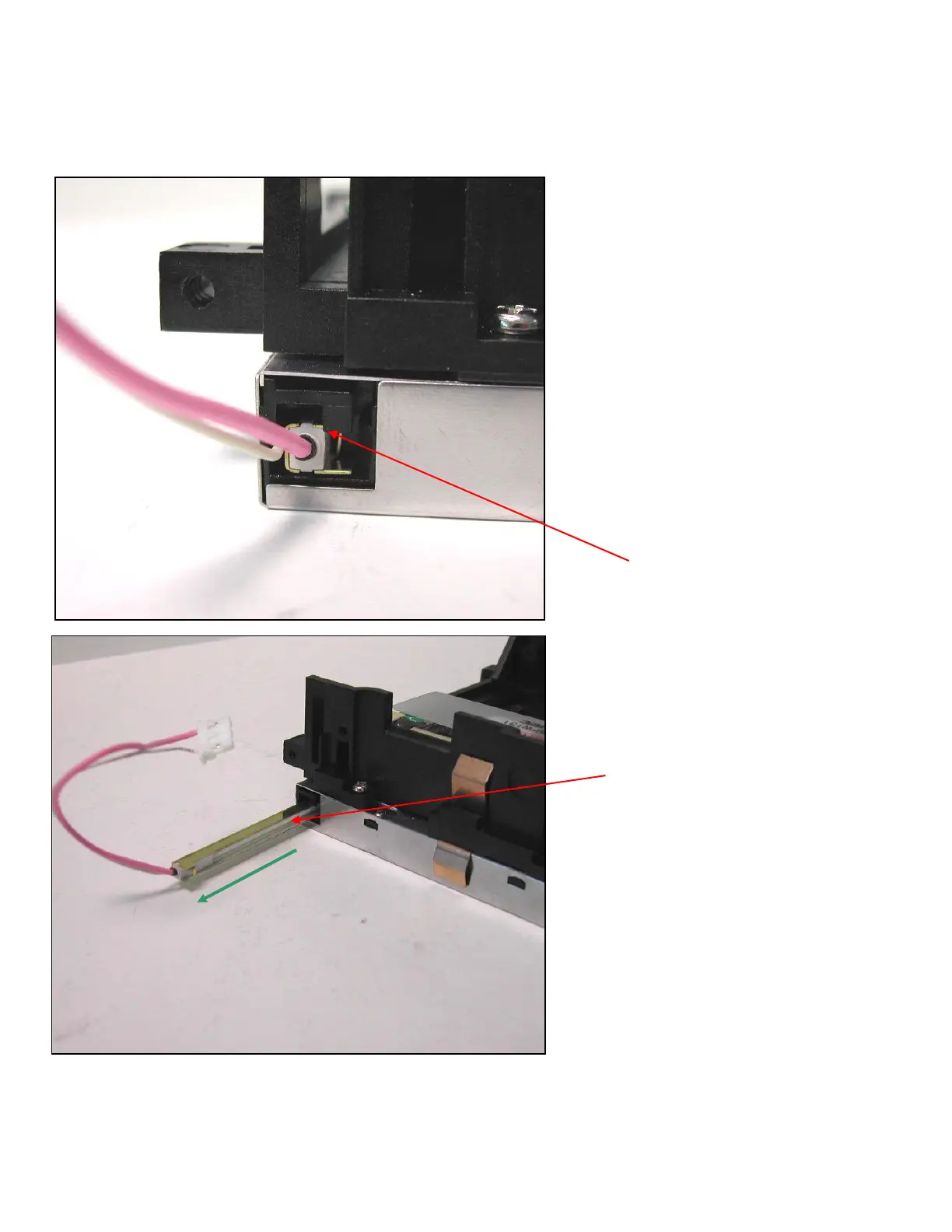

Fig 16
Push clip up and
pull on cables
Fig 17
Withdraw
backlight tube
