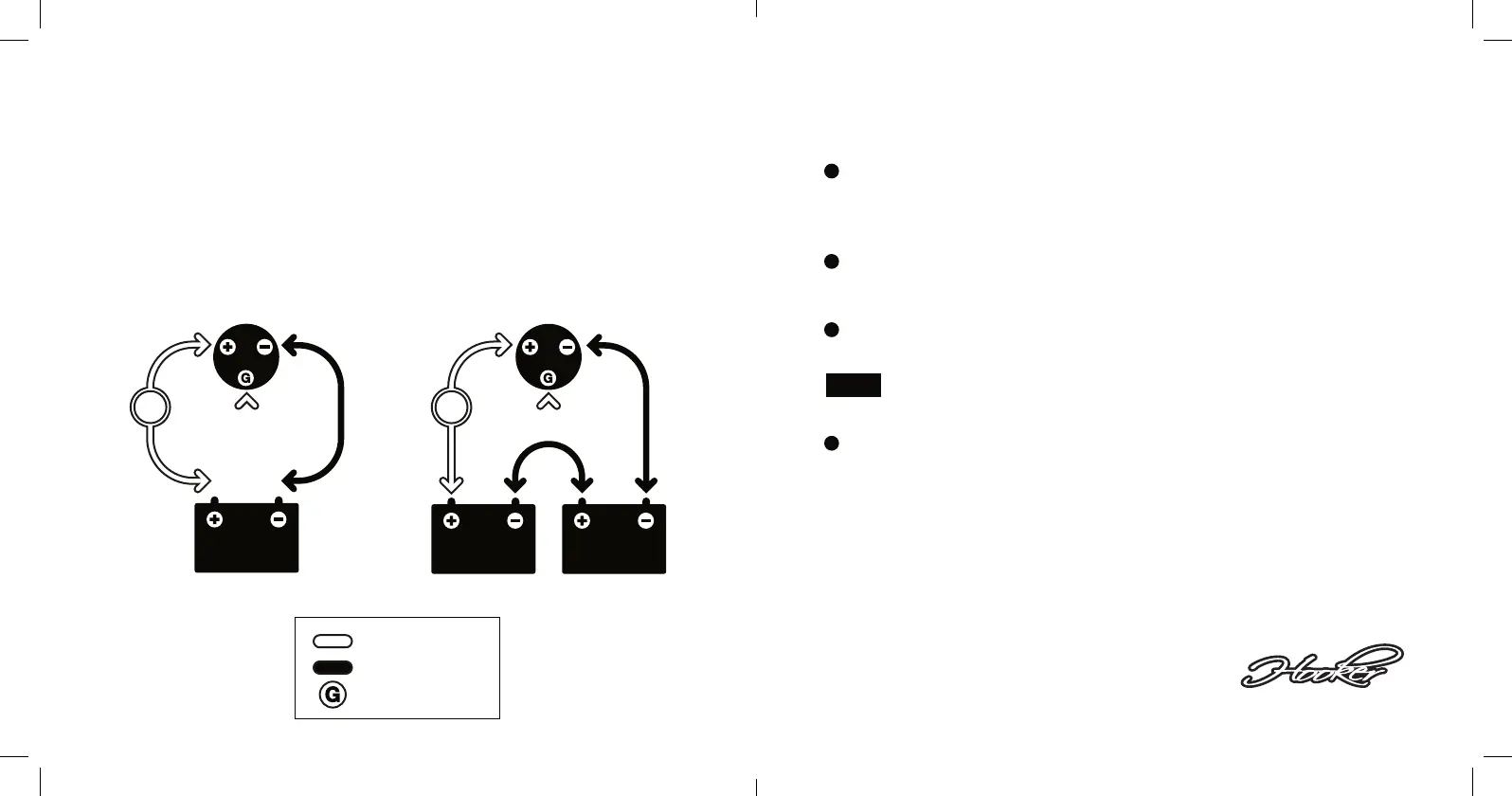

12V DC System 24V DC System
12 VOLT BATTERY 12 VOLT BATTERY 12 VOLT BATTERY
WIRING CONFIGURATION
To avoid depleting the battery used to start your boat, the reel
should be powered from a seperate deep cycle battery.
Red Wire
Black Wire
Ground Not Used
Reference Chart for
Correct Gauge of Wire
Based Upon Length
Female Receptacle
Not Used
Not Used
Jumper
Wire
Inline
Breaker
Female Receptacle
Reference Chart for
Correct Gauge of Wire
Based Upon Length
NOTE
1
2
3
4
POWERING YOUR REEL
Check the position of the reel’s manual handle and release it
to the neutral position. This can be determined if the handle can
spin freely in both directions.
Turn the variable speed control knob in the full
counterclockwise position (off).
Plug the reel into your vessel’s 12V or 24V DC power source.
Reel models 16, 20 and 30
Kite Reels are only 12V.
Listen for a series of beeps, then a 3 second pause, followed
by a second set of beeps. This is the signal that the reel
recognized the neutral position.
