1. Hand grip
2. Solution trigger: press to
release clean solution.
3. Clean Surge™ button
4. Cord clip: place cord in clip
to keep it out of the way
when using cleaner
5. Hose
6. Hose holder: wrap hose
around holder and hooks
for storage.
7. Hose hooks
8. Cord hooks: wrap cord
around hooks for storage.
The top hook can be rotated
right or left for quick and
easy cord release.
9. Stair/upholstery nozzle
10. Carrying handle
11. Clean solution tank handle
12. Clean solution tank cap/
measuring cup
13. Clean solution tank: holds
cleaning solution.
14. Recovery tank lid
15. Recovery tank: holds dirty
solution.
16. Recovery tank front panel
2. How to use

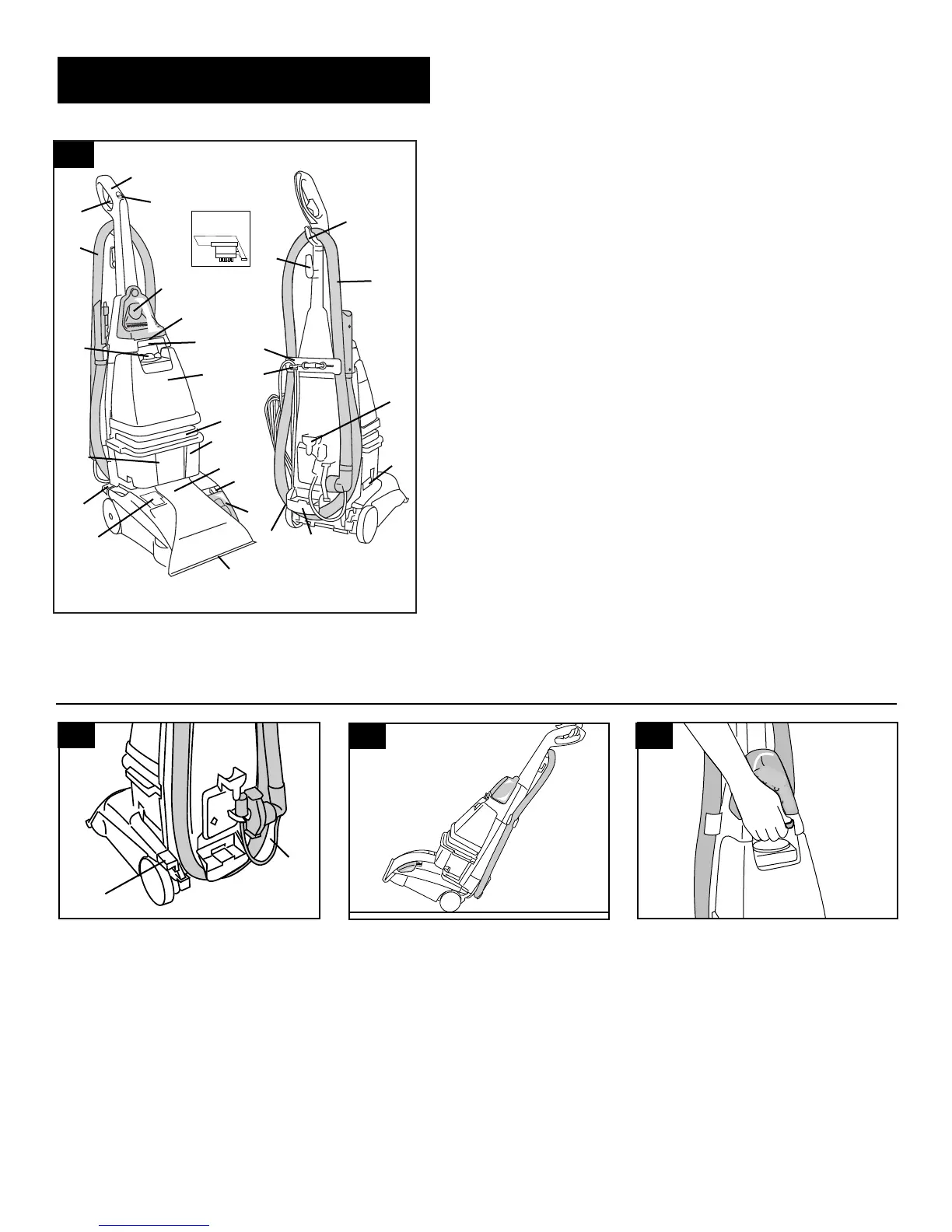

The assembled deep cleaner will look like the drawing.
2-1
2-2
17. Hood
18. Brush speed selector:
slide selector to set brush
speed on HI, LO, or OFF.
19. Brush Indicator: spins
when brushes are rotating.
20. Nozzle
21. Solution tube connection
22. Recovery tank latches
23. ON/OFF pedal
24. Handle release pedal: step
on pedal to lower handle to
operating (floor) position.
25. Powered hand tool
This deep cleaner is intended
for household use.
Operate deep cleaner only at
voltage specified on data plate
on back of cleaner. Plug deep
cleaner Into a properly ground-
ed outlet.
ON/OFF pedal &
Handle release pedal
Step on pedal (A) to turn deep cleaner
on. Step on pedal again to turn deep
cleaner off.
Step on pedal (B) to lower handle to
operating position. Handle does not lock
into a single position but “floats” to allow
convenient operation.
A
B
To transport
To move your deep cleaner from room to
room put handle in upright and locked
position tilt deep cleaner back on
wheels and push forward.
2-3
The deep cleaner may also be lifted by
placing a hand under the upper clean
solution tank handle as shown.
1
3
2
4
5
8
7
7
6
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
25
22
24
Deep cleaner description
2-4
