Rotate top of caddy toward cleaner
handle. Slide caddy down so notch (G) on
caddy rests in hook (H) on cleaner.

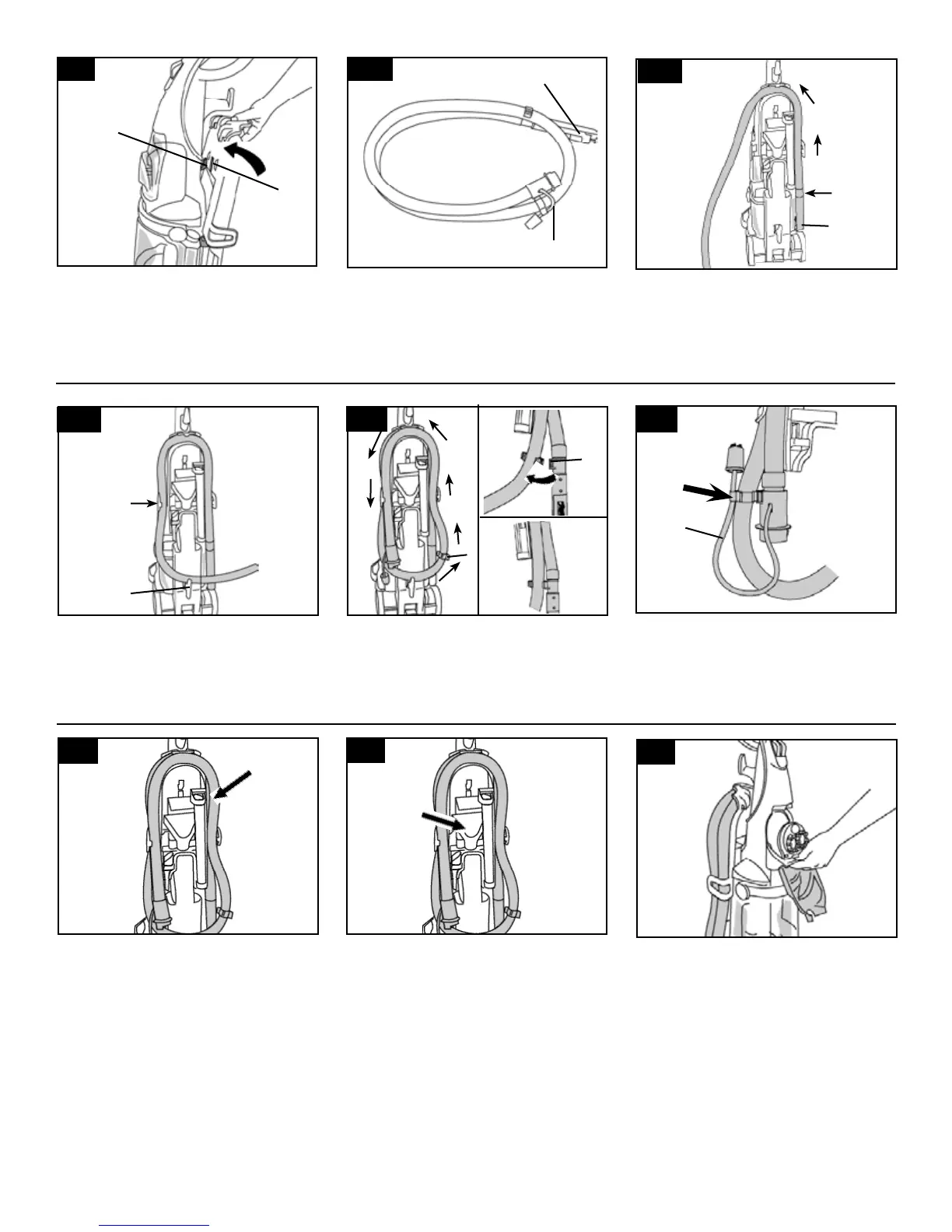

Storing hose and
tools
Press hose, a few inches from nozzle con-
nector end (I), into caddy. Bring hose up and
over top of caddy.
Press hose into opposite side of caddy. Loop
hose at bottom of cleaner and press into top
of hook (K).
Loop hose over top of caddy again.
Slide hose clip (L) toward end of hose.
Snap tab (M) on hose connector into hose
clip.
Insert top of bare floor tool (available at addi-
tional cost if not included with your cleaner)
through “loop” on caddy. Slide tool down into
place.
Snap stair/upholstery nozzle onto caddy.
SpinScrub™ hand tool
(not included with all models)
The SpinScrub™ hand tool is shipped in a
plastic bag for protection. To remove the bag
before using the tool, open tool door.
K
L
M
I
I
J
Identify the hose parts before storing hose.
I. Nozzle connector end
J. Solution tube
Repeat on other end of hose.
Press solution tube (J) into opposite side of
clip.
